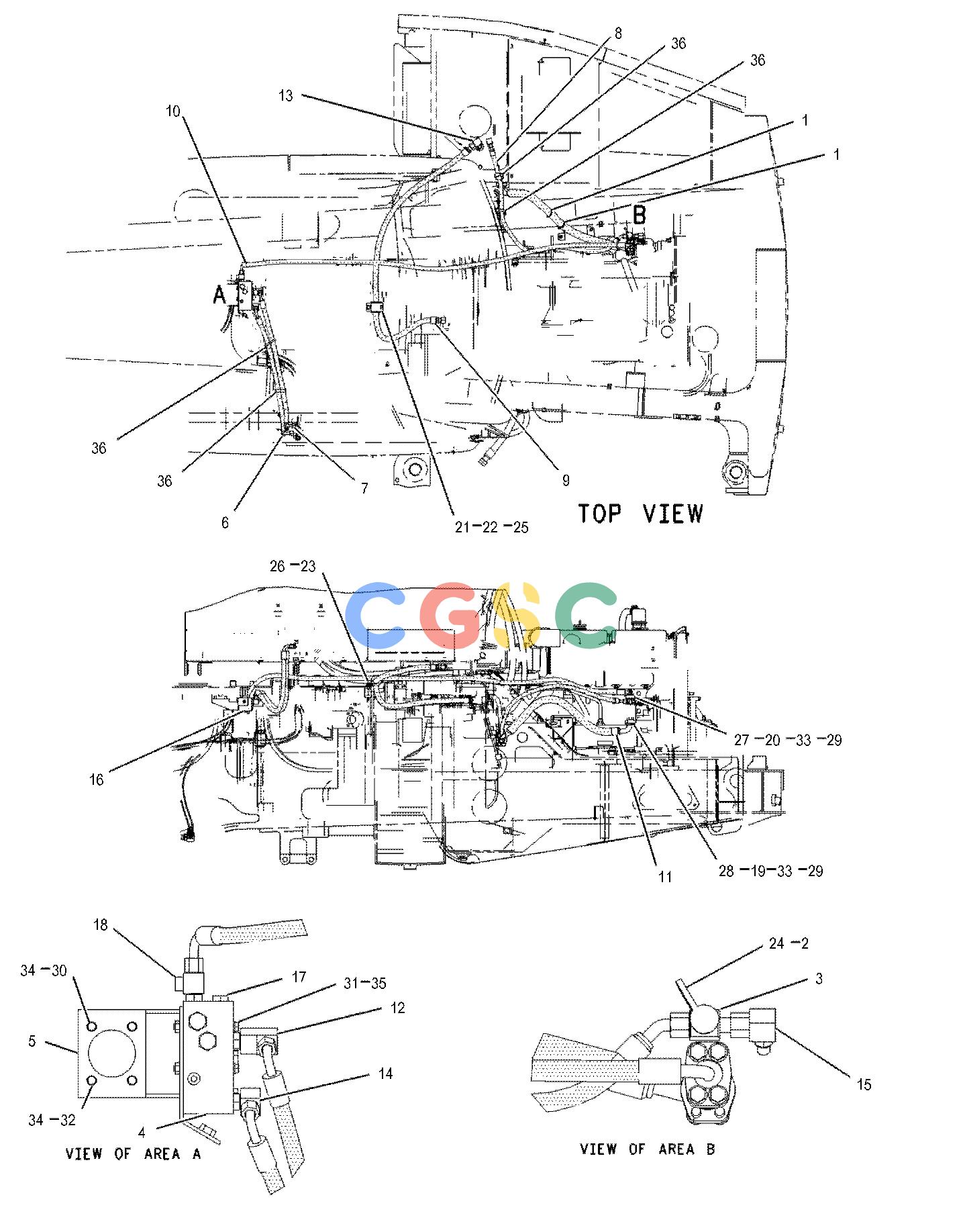

卡特零件查询（735） 152-7100: LINES GP-PUMP
广数供应链运营团队, 15 02月, 2025，浏览：
638 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6U-0455 | [2] | STRAP | |
| 2. | 164-5567 | [1] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| | 214-7568 | [1] | SEAL-O-RING | |
| 3. | 164-5586 | [1] | TEE AS | |
| | 7X-0871 | [1] | TEE | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| 4. | 173-6219Y | [1] | VALVE GP-CHK & PRESS REDUCING(SERVICE BRAKE) | |
| 5. | 193-2947 | [1] | BRACKET AS | |
| | 8T-3597M | [2] | NUT-WELD(M12X1.75-THD) | |
| | 8T-3612M | [2] | NUT-WELD(M8X1.25-THD) | |
| 6. | 194-9428I | [1] | HOSE AS | |
| 7. | 194-9429I | [1] | HOSE AS | |
| 8. | 194-9431I | [1] | HOSE AS | |
| 9. | 197-8225I | [1] | HOSE AS | |
| 10. | 210-3090I | [1] | HOSE AS | |
| 11. | 210-3216I | [1] | HOSE AS | |
| 12. | 148-8346 | [1] | ELBOW AS | |
| | 8T-1686 | [1] | ADAPTER-ELBOW | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| 13. | 148-8347 | [1] | ELBOW AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-9007 | [1] | ELBOW | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 14. | 148-8364 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8625 | [1] | ELBOW | |
| 15. | 148-8365 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 8T-6876 | [1] | ELBOW | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| 16. | 148-8407 | [1] | PLUG AS | |
| | 9S-4191 | [1] | PLUG(9/16-18-THD) | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| 17. | 148-8411 | [1] | PLUG AS | |
| | 9S-4185 | [1] | PLUG(3/4-16-THD) | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| 18. | 148-8428 | [1] | TEE AS | |
| | 6V-8782 | [1] | TEE | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [2] | SEAL-O-RING | |
| 19. | 4J-0520 | [2] | SEAL-O-RING | |
| 20. | 4J-5267 | [1] | SEAL-O-RING | |
| 21. | 5P-7468W | [1] | CLIP(SLOT) | |
| 22. | 5P-7469W | [1] | CLIP(TAB) | |
| 23. | 5S-7382W | [1] | BOLT(3/8-16X1.375-IN) | |
| 24. | 6V-0852 | [1] | CAP-DUST | |
| 25. | 6V-1874W | [1] | GROMMET(31-MM ID) | |
| 26. | 7X-7729W | [1] | WASHER(11X25X3-MM THK) | |
| 27. | 8C-3205 | [2] | FLANGE-HALF | |
| 28. | 8C-3206 | [4] | FLANGE-HALF | |
| 29. | 8T-4121 | [12] | WASHER-HARD(11X21X2.5-MM THK) | |
| 30. | 8T-4139M | [1] | BOLT(M12X1.75X30-MM) | |
| 31. | 8T-4177M | [2] | BOLT(M8X1.25X90-MM) | |
| 32. | 8T-4192M | [3] | BOLT(M12X1.75X25-MM) | |
| 33. | 8T-4196M | [12] | BOLT(M10X1.5X35-MM) | |
| 34. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 35. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 36. | 6U-0456 | [4] | STRAP | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | W | | FOR USE WITH THE 740 AND 740 EJECTOR MACHINE |
| | Y | | SEPARATE ILLUSTRATION |
