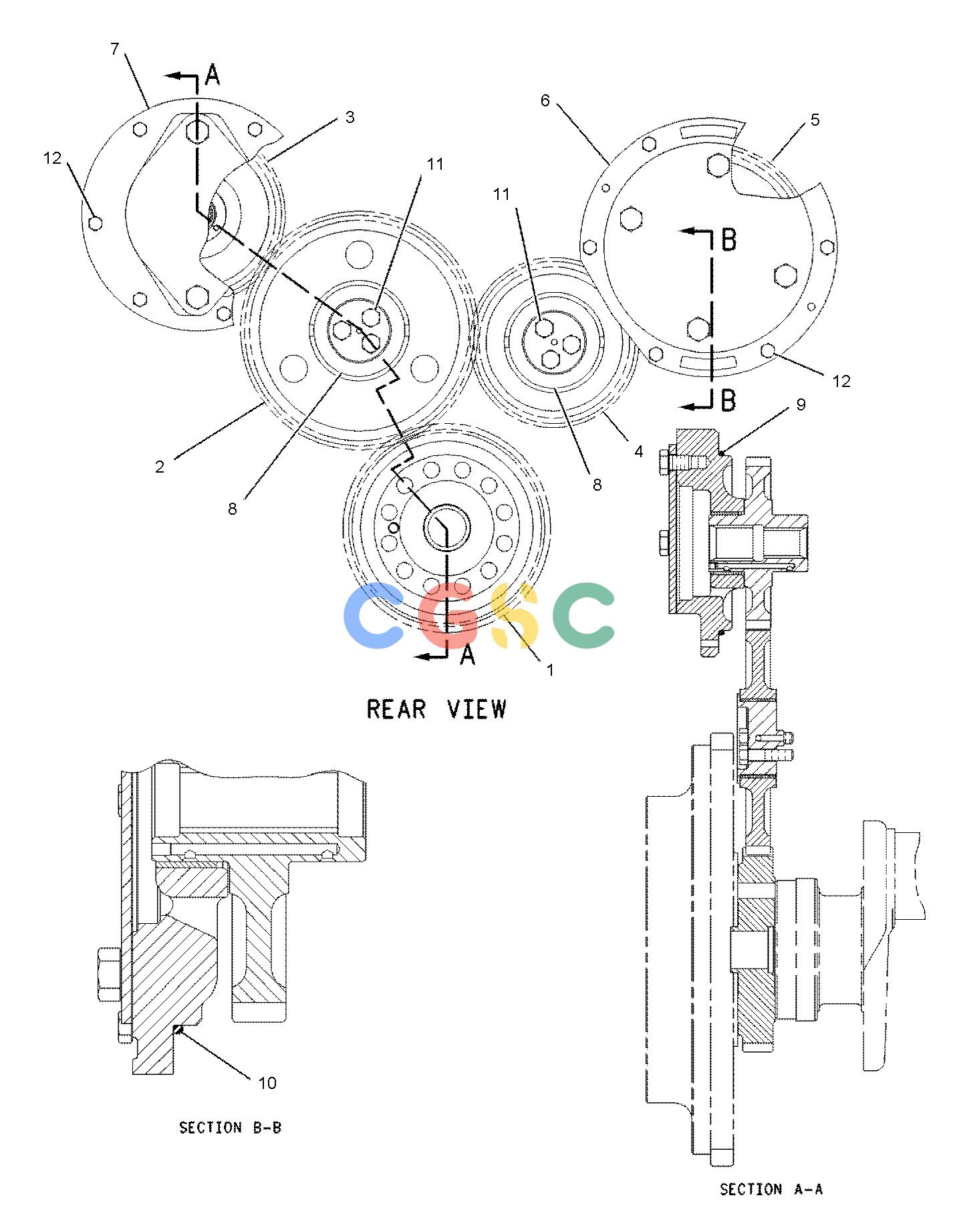

卡特零件查询（735） 188-9134: GEAR GP-REAR
广数供应链运营团队, 15 02月, 2025，浏览：
794 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 9Y-2094 | [1] | GEAR AS-CRANKSHAFT(68-TEETH) | |
| | 4N-0684 | [1] | DOWEL | |
| 2. | 9Y-1981 | [1] | GEAR AS-IDLER(78-TEETH) | |
| | 1W-4738 | [1] | BUSHING | |
| 3. | 187-8197C | [1] | GEAR AS(57-TEETH) | |
| | 4F-6024 | [1] | PIN | |
| 4. | 9Y-1985 | [1] | GEAR AS-IDLER(55-TEETH) | |
| | 1W-4738 | [1] | BUSHING | |
| 5. | 187-8196C | [1] | GEAR AS(68-TEETH) | |
| | 4F-6024 | [1] | PIN | |
| 6. | 222-1832C | [1] | ADAPTER AS | |
| | 160-8184 | [1] | BUSHING | |
| 7. | 222-1833C | [1] | ADAPTER AS | |
| | 160-8184 | [1] | BUSHING | |
| 8. | 9Y-2092 | [2] | RETAINER-IDLER | |
| 9. | 3F-1547 | [1] | SEAL-O-RING(189.86MM ID) | |
| 10. | 6V-5141 | [1] | SEAL-O-RING(221.62MM ID) | |
| 11. | 1A-1460 | [6] | BOLT(1/2-13X2-IN) | |
| 12. | 3B-1915 | [12] | BOLT(3/8-16X1.375-IN) | |
| | C | | CHANGE FROM PREVIOUS TYPE |
