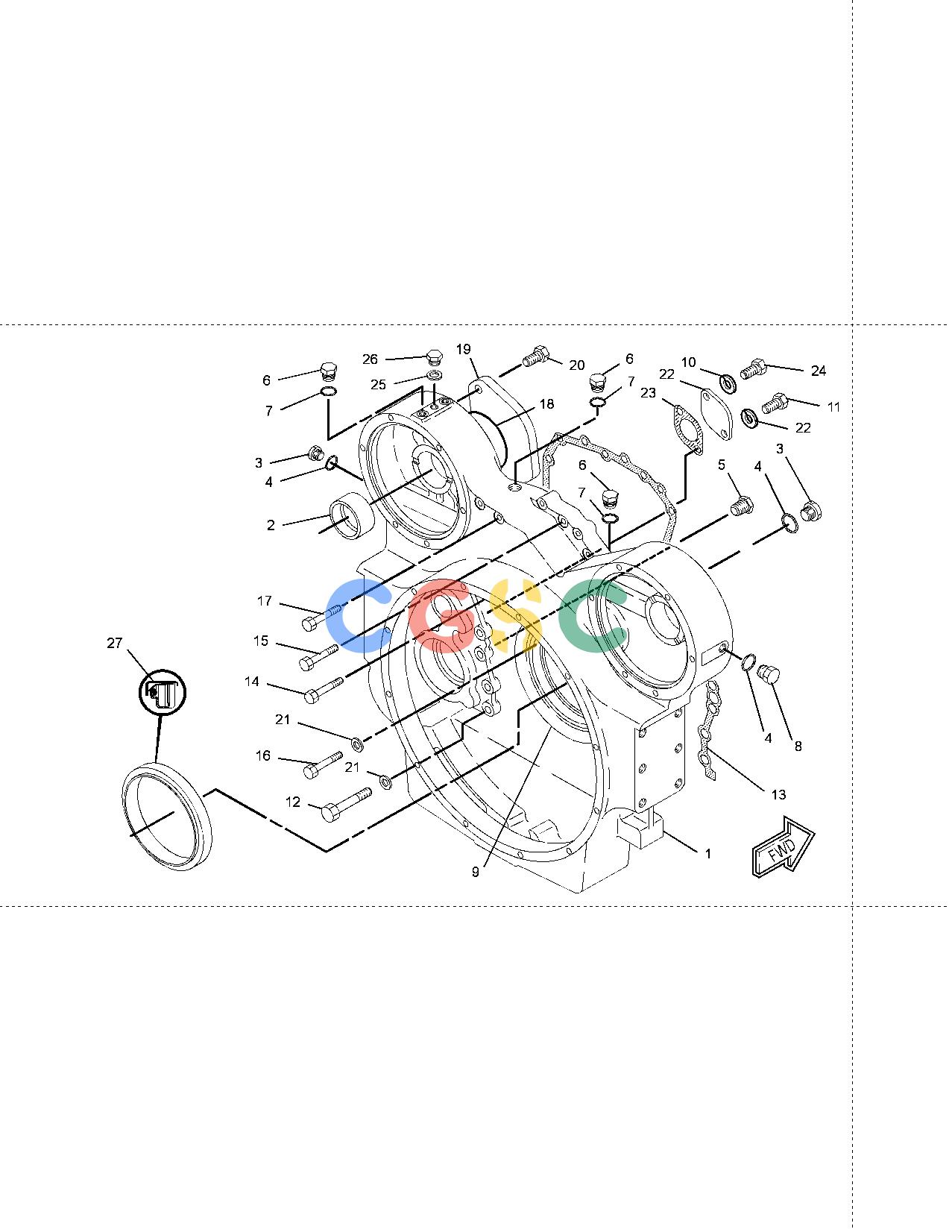

卡特零件查询（735） 144-3527: HOUSING GP-FLYWHEEL
广数供应链运营团队, 15 02月, 2025，浏览：
752 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 371-0611 | [1] | HOUSING AS-FLYWHEEL | |
| 2. | 8M-9315 | [2] | BUSHING | |
| 3. | 9S-8005 | [4] | PLUG(3/4-16-THD) | |
| 4. | 238-5080 | [4] | SEAL-O-RING | |
| 5. | 8T-6765 | [2] | PLUG-PIPE(1/4-18-THD) | |
| 6. | 9S-8002 | [4] | PLUG(7/16-20-THD) | |
| 7. | 214-7566 | [4] | SEAL-O-RING | |
| 9. | 1W-3136 | [1] | BAFFLE | |
| 10. | 5M-2894 | [2] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 11. | 0S-1594 | [1] | BOLT(3/8-16X1-IN) | |
| 12. | 9K-7290 | [8] | BOLT-12 POINT HEAD(1/2-13X3.25-IN) | |
| 13. | 155-5619 | [1] | GASKET | |
| 14. | 165-3930 | [6] | BOLT(3/8-16X1.625-IN) | |
| 15. | 165-3932 | [5] | BOLT(3/8-16X2-IN) | |
| 16. | 5J-5793 | [1] | BOLT-12 POINT HEAD(1/2-13X2-IN) | |
| 17. | 165-3936 | [2] | BOLT(3/8-16X4.5-IN) | |
| 18. | 4M-0189 | [1] | SEAL-O-RING | |
| 19. | 175-3721C | [1] | COVER | |
| 20. | 2H-3855C | [2] | BOLT(1/2-13X0.875-IN) | |
| 21. | 5P-8245C | [9] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 22. | 2P-2772 | [1] | COVER | |
| 23. | 234-8937 | [1] | SEAL-INTEGRAL | |
| 24. | 0S-1619 | [1] | BOLT(3/8-16X3-IN) | |
| 25. | 2A-1162 | [1] | GASKET | |
| 26. | 5F-0304 | [1] | PLUG | |
| 27. | 319-0785Y | [1] | SEAL GP-CRANKSHAFT(REAR) | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | Y | | SEPARATE ILLUSTRATION |
