卡特零件查询（735） 199-6529: PUMP GP-WATER
广数供应链运营团队, 15 02月, 2025，浏览：
351 次

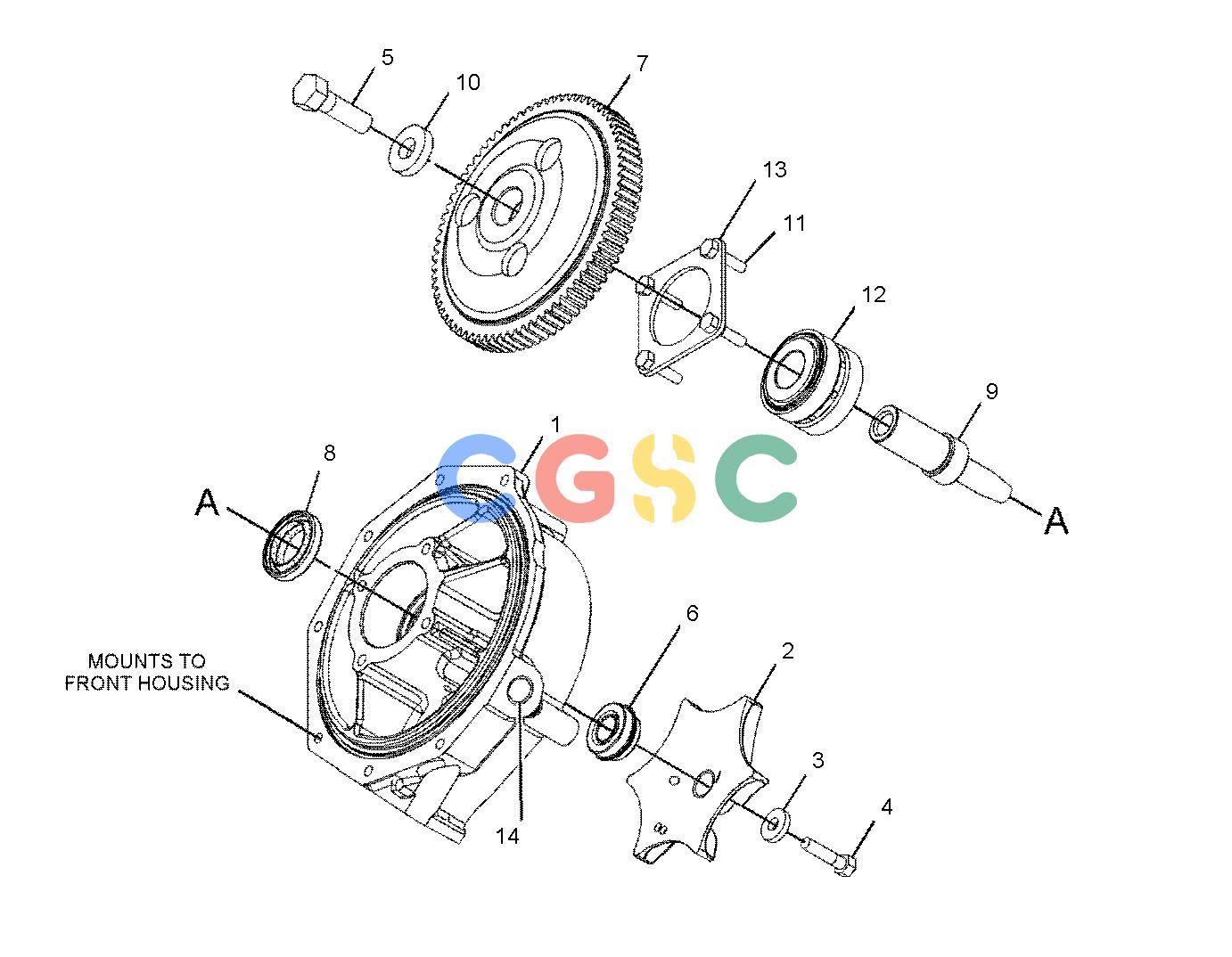

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 136-3742 | [1] | FILTER | |
| 2. | 129-9907 | [1] | IMPELLER-PUMP | |
| 3. | 9M-6527 | [1] | WASHER-HARD(10.2X25.5X5-MM THK) | |
| 4. | 165-3929 | [1] | BOLT(3/8-16X1.5-IN) | |
| 5. | 1A-1135 | [1] | BOLT(5/8-11X2-IN) | |
| 6. | 550-5420 | [1] | SEAL AS(WATER PUMP) | |
| 7. | 6I-3643 | [1] | GEAR(74-TEETH) | |
| 8. | 153-1256 | [1] | SEAL-LIP TYPE | |
| | | | (USE STANDARD SEAL WITH STANDARD BORE) |
| | | | -OR- |
| | 222-1528F | [1] | SEAL-LIP TYPE | |
| | | | (USE OVERSIZE SEAL WITH OVERSIZE BORE) |
| 9. | 135-4928 | [1] | SHAFT-WATER PUMP | |
| 10. | 5S-0581 | [1] | WASHER-HARD(17X38X8-MM THK) | |
| 11. | 1B-7182 | [4] | BOLT(5/16-18X1.25-IN) | |
| 12. | 108-7930 | [1] | BEARING AS-ROLLER | |
| 13. | 136-1107 | [1] | RETAINER | |
| | F | | NOT SHOWN |
