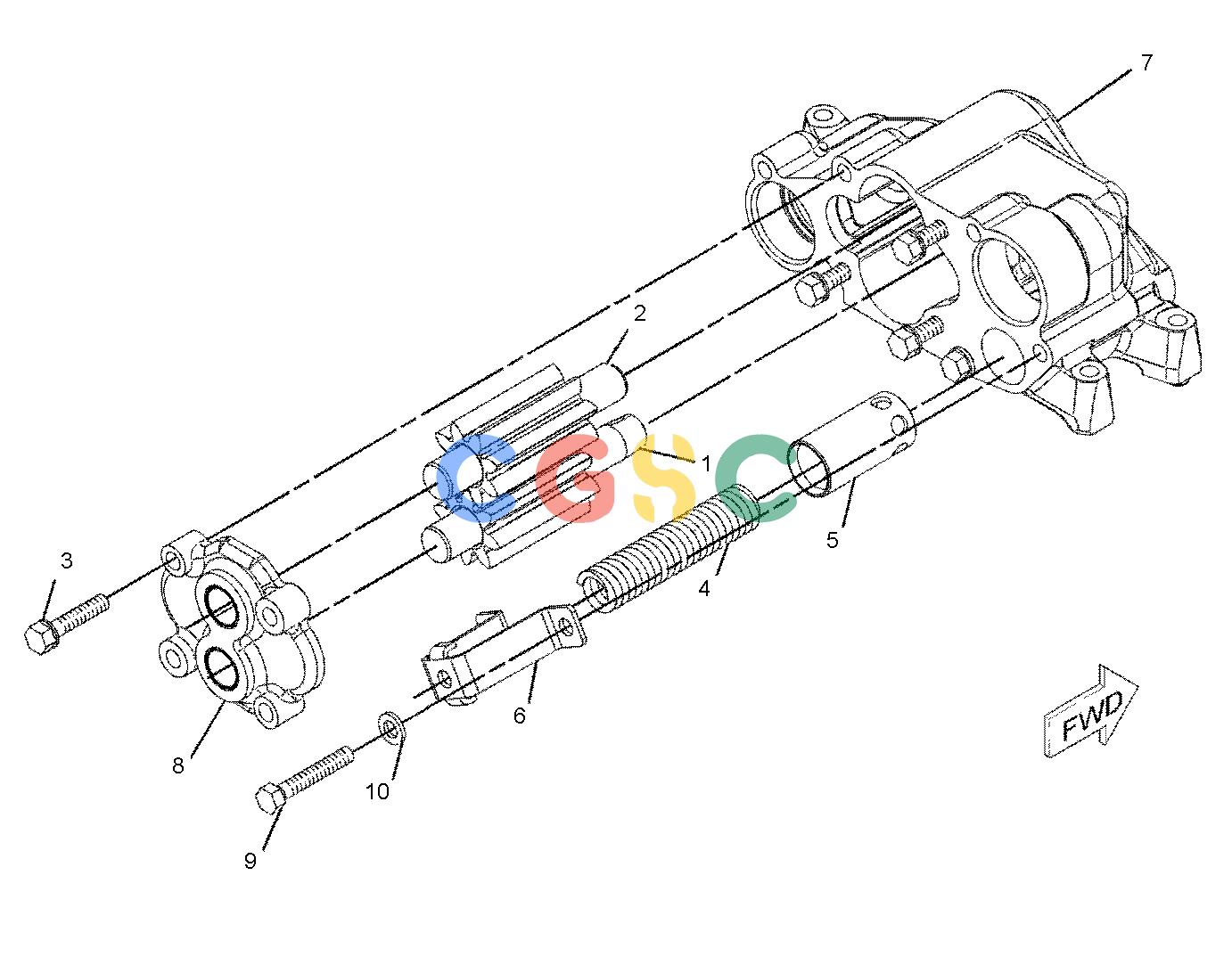

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | [1] | SHAFT AS-DRIVE | ||
| 2. | [1] | SHAFT AS-IDLER | ||
| 3. | 2P-3205 | [4] | BOLT-WASHER HEAD(3/8-16X1.75-IN) | |
| 4. | 2S-2760 | [1] | SPRING | |
| 5. | 6N-1931 | [1] | PLUNGER | |
| 6. | 9Y-1792 | [1] | RETAINER | |
| 7. | [1] | BODY AS-OIL PUMP | ||
| 7N-2156 | [2] | BUSHING | ||
| 8M-8489 | [2] | DOWEL | ||
| 8. | [1] | COVER AS-PUMP | ||
| 8S-6511 | [2] | BUSHING | ||
| 9. | 1M-0644 | [2] | BOLT(3/8-16X2.25-IN) | |
| 10. | 5M-2894 | [2] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
