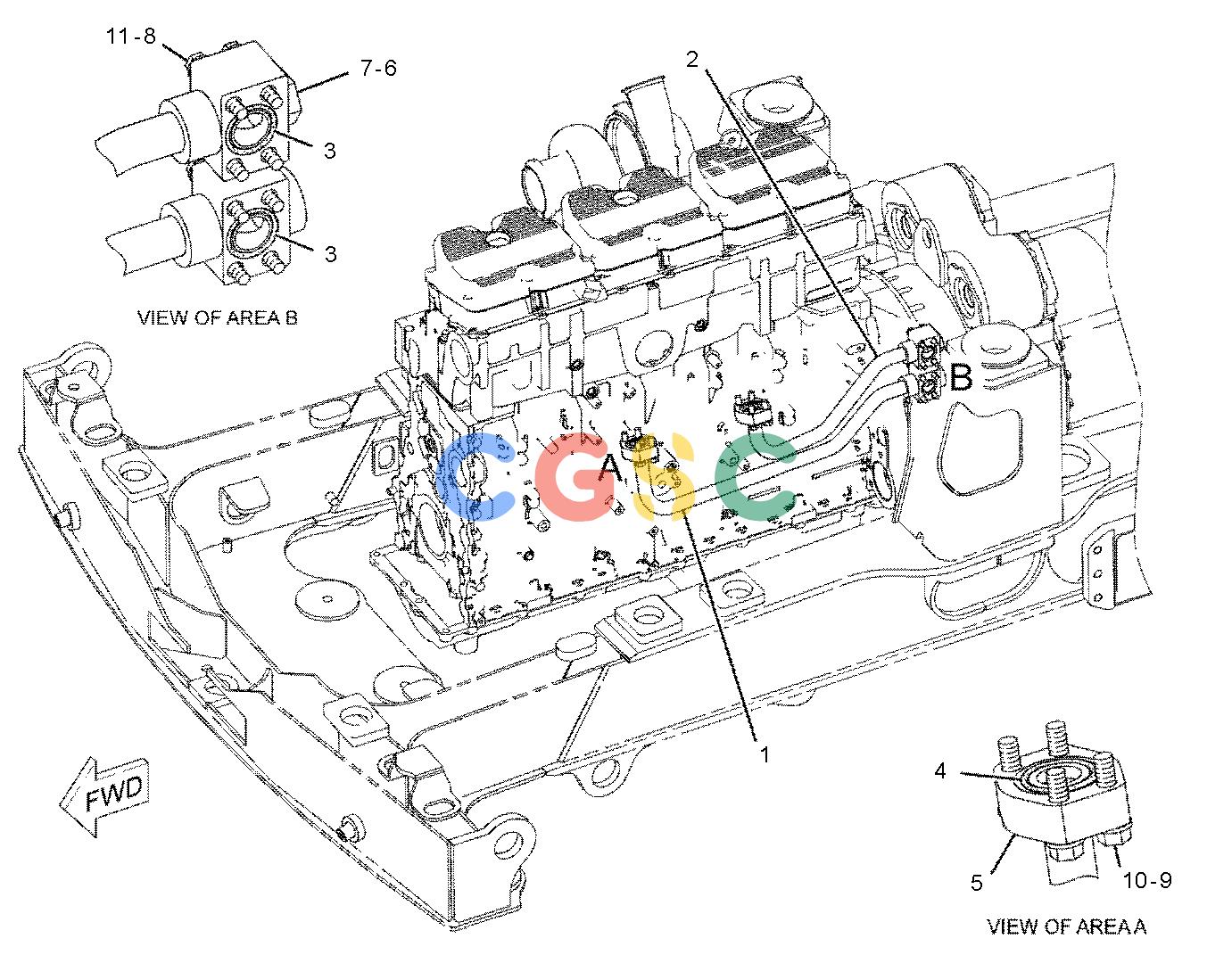

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 242-1723 | [1] | TUBE AS | |
| 2. | 242-1724 | [1] | TUBE AS | |
| 3. | 1P-3704 | [2] | SEAL-RECTANGULAR | |
| 4. | 1P-3705 | [2] | SEAL-RECTANGULAR | |
| 5. | 1P-5762 | [4] | FLANGE-HALF | |
| 6. | 7M-8485 | [1] | SEAL-O-RING | |
| 7. | 8J-0426 | [1] | PLUG | |
| 8. | 8T-4121 | [8] | WASHER-HARD(11X21X2.5-MM THK) | |
| 9. | 8T-4223 | [8] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 10. | 8T-4835 | [8] | BOLT(1/2-13X2-IN) | |
| 11. | 8T-5005M | [8] | BOLT(M10X1.5X70-MM) | |
| M | METRIC PART | |||
