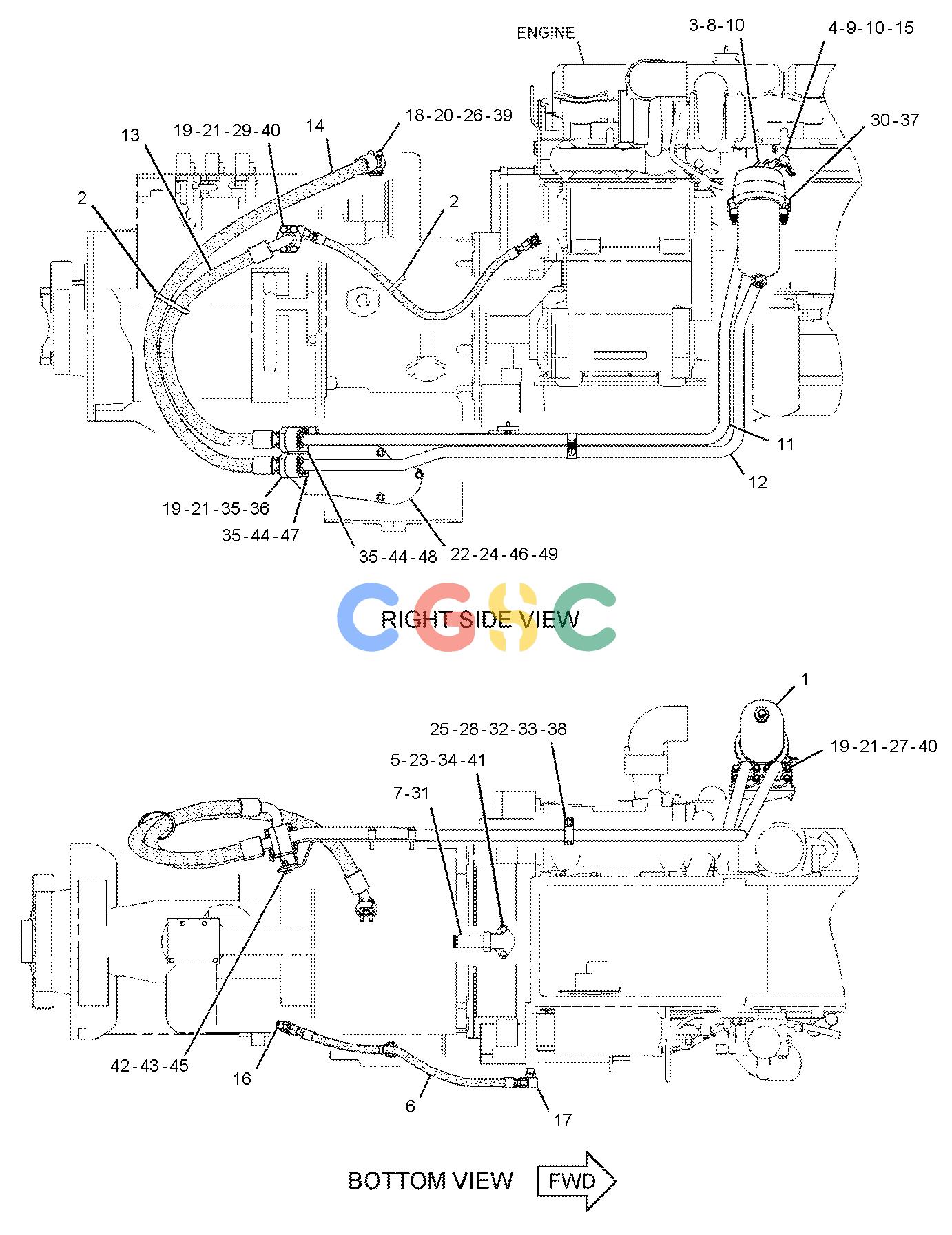

卡特零件查询（735） 164-6810: LINES GP-TRANSMISSION OIL
广数供应链运营团队, 15 02月, 2025，浏览：
184 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6P-4603Y | [1] | FILTER GP-OIL(TRANSMISSION) | |
| 2. | 6U-0456 | [2] | STRAP | |
| 3. | 6V-0852 | [1] | CAP-DUST | |
| 4. | 8C-3447 | [1] | CAP-DUST | |
| 5. | 8S-9009 | [1] | ELBOW | |
| 6. | 8W-6650I | [1] | HOSE AS | |
| 7. | 141-4007 | [1] | SLEEVE | |
| 8. | 164-5567 | [1] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| 9. | 164-5590 | [1] | VALVE AS-FLUID SAMPLING(TRANSMISSION OIL) | |
| | 8C-3446 | [1] | VALVE-SAMPLING(TRANSMISSION OIL) | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| 10. | 169-8429 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 2U-6317 | [1] | ELBOW | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| 11. | 197-4487 | [1] | TUBE AS | |
| 12. | 197-4488 | [1] | TUBE AS | |
| 13. | 288-6477CI | [1] | HOSE AS | |
| 14. | 205-3558I | [1] | HOSE AS | |
| 15. | 148-8305 | [1] | ADAPTER AS | |
| | 5P-9617 | [1] | ADAPTER | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| 16. | 148-8354 | [1] | ELBOW AS | |
| | 6V-9002 | [1] | ELBOW | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| 17. | 148-8364 | [1] | ELBOW AS | |
| | 6V-8625 | [1] | ELBOW | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| 18. | 1P-4577 | [2] | FLANGE-HALF | |
| 19. | 1P-4578 | [10] | FLANGE-HALF | |
| 20. | 4J-0520 | [1] | SEAL-O-RING | |
| 21. | 4J-0522 | [5] | SEAL-O-RING | |
| 22. | 8T-9377C | [3] | BOLT(3/8-16X2.25-IN) | |
| 23. | 5M-2894 | [2] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 24. | 5P-1075C | [3] | WASHER-HARD(10.2X22.5X3-MM THK) | |
| 25. | 5P-2566 | [1] | BOLT(1/2-13X1.5-IN) | |
| 26. | 5S-7382 | [4] | BOLT(3/8-16X1.375-IN) | |
| 27. | 6K-3771 | [8] | BOLT-12 POINT HEAD(7/16-14X1.5-IN) | |
| 28. | 6V-8188 | [1] | NUT(1/2-13-THD) | |
| 29. | 7X-0311 | [4] | BOLT(7/16-14X2.25-IN) | |
| 30. | 7X-0623 | [3] | WASHER(10.5X21X2-MM THK) | |
| 31. | 8M-4433 | [2] | SEAL-O-RING | |
| 32. | 8S-0023C | [2] | CLIP(SLOT) | |
| 33. | 8S-0024C | [2] | CLIP(TAB) | |
| 34. | 8T-2502 | [2] | BOLT(3/8-16X1.125-IN) | |
| 35. | 8T-4121C | [14] | WASHER-HARD(11X21X2.5-MM THK) | |
| 36. | 8T-4186M | [8] | BOLT(M10X1.5X40-MM) | |
| 37. | 8T-4196M | [3] | BOLT(M10X1.5X35-MM) | |
| 38. | 8T-4223 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 39. | 8T-4896 | [4] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 40. | 8T-5360 | [12] | WASHER(12X22.5X2.5-MM THK) | |
| 41. | 9L-2662 | [1] | GASKET | |
| 42. | 7X-7729C | [8] | WASHER(11X25X3-MM THK) | |
| 43. | 8T-4133CM | [4] | NUT(M10X1.5-THD) | |
| 44. | 8T-4137CM | [6] | BOLT(M10X1.5X20-MM) | |
| 45. | 8T-4195CM | [4] | BOLT(M10X1.5X30-MM) | |
| 46. | 288-7936C | [1] | PLATE | |
| 47. | 288-7937C | [1] | PLATE | |
| 48. | 288-7938C | [1] | PLATE | |
| 49. | 295-6075C | [3] | SPACER(10X20X25-MM THK)(10X20X25-MM THK) | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
