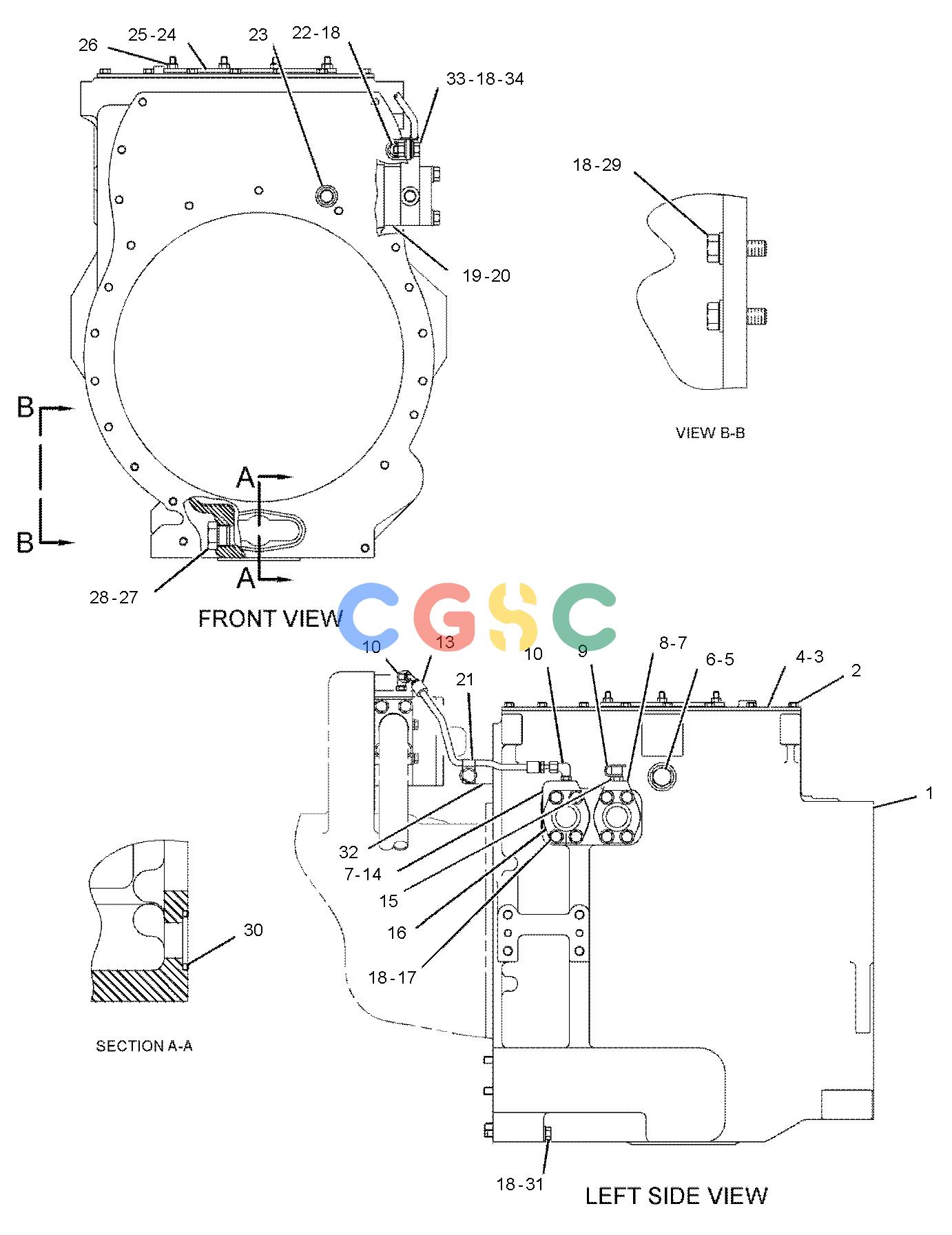

卡特零件查询（735） 245-2768: CASE GP-TRANSMISSION
广数供应链运营团队, 15 02月, 2025，浏览：
139 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 245-8080 | [1] | HOUSING | |
| 2. | 0S-0509 | [21] | BOLT(3/8-16X0.75-IN) | |
| 3. | 7G-6373 | [1] | GASKET | |
| 4. | 173-5476 | [1] | COVER AS | |
| | 7M-5007 | [1] | FITTING | |
| | 7M-7794 | [10] | STUD-WELD(9.4X21.5X25.5-MM) | |
| 5. | 3D-2824 | [1] | SEAL-O-RING | |
| 6. | 9S-4183 | [1] | PLUG(1-1/16-12-THD) | |
| 7. | 8M-5661 | [2] | SEAL-O-RING | |
| 8. | 8W-5179 | [1] | ADAPTER | |
| 9. | 6V-0852 | [1] | CAP-DUST | |
| 10. | 335-3982 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-8627 | [1] | ELBOW | |
| | 214-7568 | [1] | SEAL-O-RING | |
| | 228-7088 | [1] | SEAL-O-RING | |
| 13. | 165-7940I | [1] | HOSE AS | |
| 14. | 188-3024 | [1] | ADAPTER | |
| 15. | 164-5567 | [1] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| | 214-7568 | [1] | SEAL-O-RING | |
| 16. | 1P-4579 | [4] | FLANGE-HALF | |
| 17. | 1B-2886 | [8] | BOLT(1/2-13X3.75-IN) | |
| 18. | 5P-8245 | [15] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 19. | 2H-3927 | [2] | SEAL-O-RING | |
| 20. | 9G-9928 | [2] | FLANGE-ONE PIECE | |
| 21. | 2T-3019 | [1] | CLIP(LOOP) | |
| 22. | 0S-1621 | [1] | BOLT(1/2-13X1-IN) | |
| 23. | 2H-3932 | [1] | SEAL-O-RING | |
| 24. | 7G-1593 | [1] | COVER | |
| 25. | 7G-1594 | [1] | GASKET | |
| 26. | 9S-8752 | [10] | NUT-FULL(3/8-16-THD) | |
| 27. | 5P-4483 | [1] | PLUG | |
| 28. | 7M-8485 | [1] | SEAL-O-RING | |
| 29. | 0S-1585 | [2] | BOLT(1/2-13X1.5-IN) | |
| 30. | 4H-9105 | [1] | SEAL-O-RING | |
| 31. | 1D-4569 | [2] | BOLT(1/2-13X4.25-IN) | |
| 32. | 8N-7907 | [1] | BRACKET | |
| 33. | 0S-1595 | [1] | BOLT(1/2-13X1.25-IN) | |
| 34. | 1F-7958 | [1] | NUT-FULL(1/2-13-THD) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
