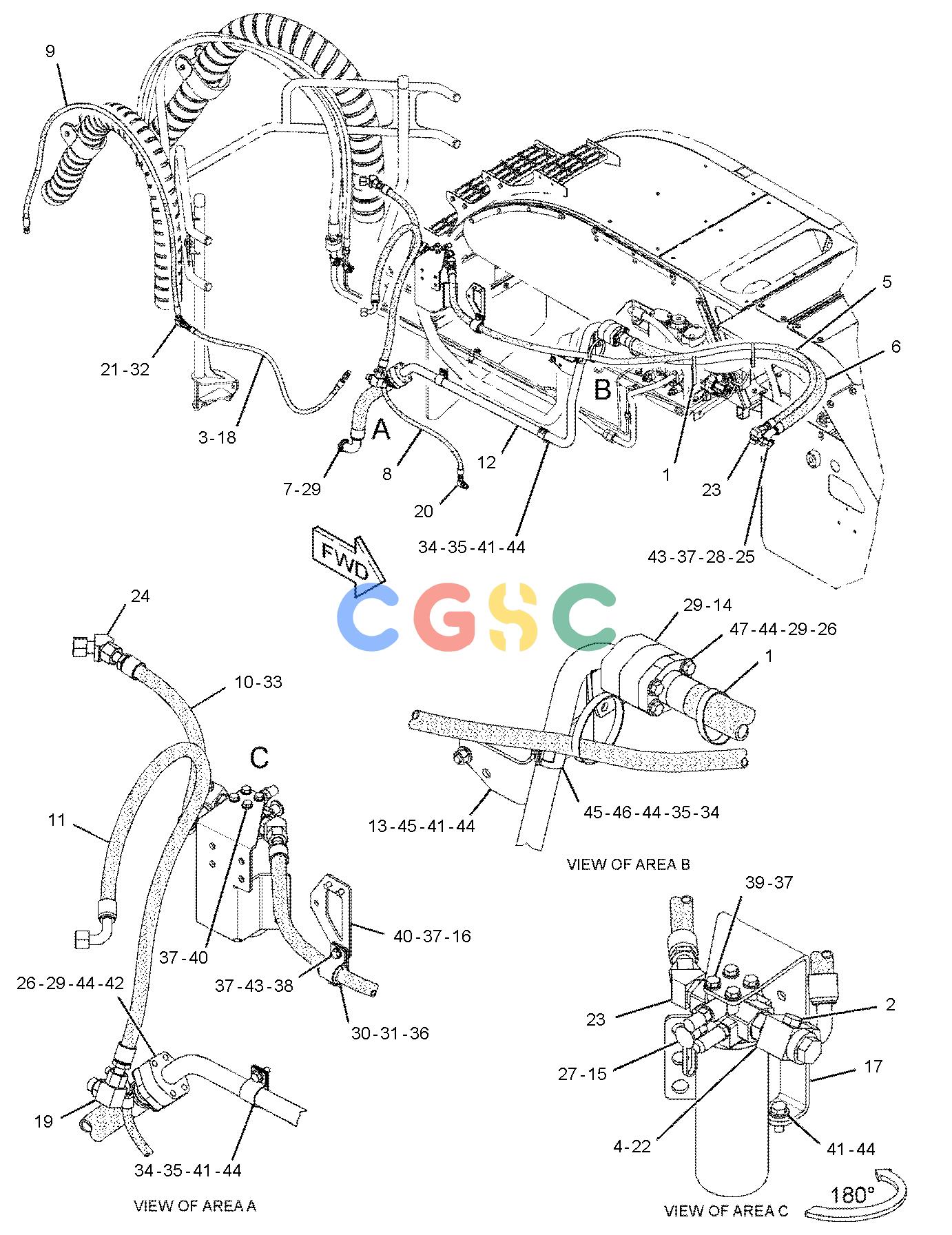

卡特零件查询（735） 349-7281: CONTROL GP-DIFFERENTIAL LOCK
广数供应链运营团队, 15 02月, 2025，浏览：
970 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6U-0456 | [4] | STRAP | |
| 2. | 148-8411 | [1] | PLUG AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 9S-4185 | [1] | PLUG(3/4-16-THD) | |
| 3. | 149-6336I | [1] | HOSE AS | |
| 4. | 196-1203 | [1] | TEE | |
| 5. | 202-2043I | [1] | HOSE AS | |
| 6. | 202-2044I | [1] | HOSE AS | |
| 7. | 202-2045I | [1] | HOSE AS | |
| 8. | 202-2046I | [1] | HOSE AS | |
| 9. | 202-4210I | [1] | HOSE AS | |
| 10. | 203-6971I | [1] | HOSE AS | |
| 11. | 203-6972I | [1] | HOSE AS | |
| 12. | 254-5859 | [1] | TUBE AS | |
| 13. | 254-5860 | [1] | BRACKET | |
| 14. | 279-3164 | [1] | FLANGE | |
| 15. | 287-1499Y | [1] | FILTER GP-OIL(DIFF LOCK, OUTPUT XFR GEAR) | |
| 16. | 310-8813 | [1] | BRACKET | |
| 17. | 349-6000 | [1] | BRACKET AS | |
| 18. | 148-8336 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8636 | [1] | CONNECTOR | |
| 19. | 148-8347 | [1] | ELBOW AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-9007 | [1] | ELBOW | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 20. | 148-8374 | [1] | ELBOW AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8723 | [1] | ELBOW | |
| 21. | 148-8377 | [1] | ELBOW AS | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8980 | [1] | ELBOW | |
| 22. | | [1] | PLUG AS |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 9S-4183 | [1] | PLUG(1-1/16-12-THD) | |
| 23. | 153-6237 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-9004 | [1] | ELBOW | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 24. | 171-6723 | [1] | ELBOW AS | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 8T-8899 | [1] | ELBOW | |
| 25. | 1P-4578 | [2] | FLANGE-HALF | |
| 26. | 1P-4579 | [4] | FLANGE-HALF | |
| 27. | 3D-2824 | [1] | SEAL-O-RING | |
| 28. | 4J-0522 | [1] | SEAL-O-RING | |
| 29. | 4J-0524 | [4] | SEAL-O-RING | |
| 30. | 5P-7464 | [1] | CLIP(SLOT) | |
| 31. | 5P-7465 | [1] | CLIP(TAB) | |
| 32. | 6V-9168 | [1] | NUT(11/16-16-THD) | |
| 33. | 6V-9746 | [1] | SEAL-O-RING | |
| 34. | 7S-8920 | [3] | CLIP(SLOT) | |
| 35. | 7S-8921 | [3] | CLIP(TAB) | |
| 36. | 8T-2920 | [1] | GROMMET(27-MM ID) | |
| 37. | 8T-4121 | [12] | WASHER-HARD(11X21X2.5-MM THK) | |
| 38. | 8T-4133M | [1] | NUT(M10X1.5-THD) | |
| 39. | 8T-4136M | [2] | BOLT(M10X1.5X25-MM) | |
| 40. | 8T-4137M | [4] | BOLT(M10X1.5X20-MM) | |
| 41. | 8T-4139M | [6] | BOLT(M12X1.75X30-MM) | |
| 42. | 8T-4184M | [4] | BOLT(M12X1.75X45-MM) | |
| 43. | 8T-4196M | [5] | BOLT(M10X1.5X35-MM) | |
| 44. | 8T-4223 | [16] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 45. | 8T-4244M | [3] | NUT(M12X1.75-THD) | |
| 46. | 8T-4956M | [1] | BOLT(M12X1.75X35-MM) | |
| 47. | 8T-6868M | [4] | BOLT(M12X1.75X80-MM) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
