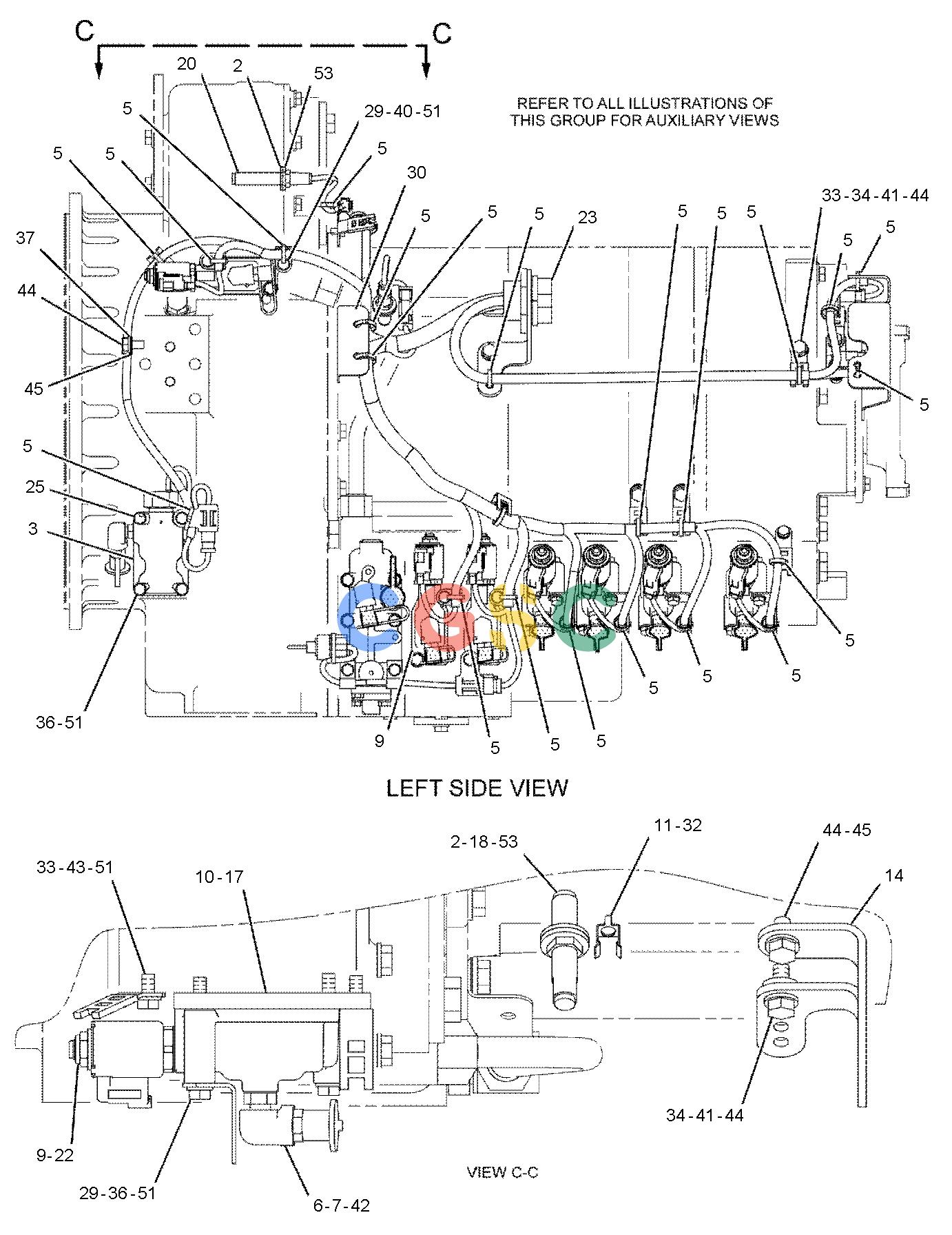

卡特零件查询（735） 246-2732: CONTROL GP-TRANSMISSION HYD
广数供应链运营团队, 15 02月, 2025，浏览：
917 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1S-6119 | [1] | SEAL-O-RING | |
| 2. | 1V-6341 | [2] | SEAL | |
| 3. | 2H-6184 | [1] | SEAL-O-RING | |
| 4. | 2P-1692 | [1] | SEAL-O-RING | |
| 5. | 3S-2093 | [26] | STRAP-CABLE | |
| 6. | 6V-0484 | [4] | ELBOW | |
| 7. | 6V-0852 | [9] | CAP-DUST | |
| 8. | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| 9. | 8S-0768 | [7] | SEAL-O-RING | |
| 10. | 8T-7000 | [1] | SEAL | |
| 11. | 124-9401 | [1] | CLIP(TAB) | |
| 12. | 134-2252Y | [1] | SENSOR GP-TEMPERATURE(8-VOLT)(TRANSMISSION LUBRICATION OIL) | |
| 13. | 165-9167 | [1] | MANIFOLD | |
| 14. | 170-8696 | [1] | BRACKET | |
| 15. | 180-3178 | [1] | VALVE GP-RELIEF(TORQUE CONVERTER INLET) | |
| 16. | 183-7264 | [1] | VALVE AS-FLUID SAMPLING(POWER TRAIN OIL) | |
| 17. | 183-9358 | [1] | PLATE | |
| 18. | 189-5746Y | [1] | SENSOR GP-SPEED(TRANSMISSION INPUT) | |
| 19. | 191-8305 | [2] | SENSOR GP-SPEED(TRANSMISSION OUTPUT) | |
| | | | (EACH INCLUDES) |
| | 133-0261 | [1] | BRACKET | |
| | 137-6645 | [1] | PAD-CONNECTOR | |
| 20. | 193-0421Y | [1] | SENSOR GP-SPEED(ENGINE) | |
| 21. | 199-9690Y | [1] | VALVE GP-RELIEF(TRANSMISSION HYDRAULIC CONTROL) | |
| 22. | 244-3114Y | [7] | VALVE GP-MODULATING(24-VOLT)(TRANSMISSION HYDRAULIC CONTROL) | |
| 23. | 227-8973 | [1] | HARNESS AS-TRANSMISSION(HYDRAULIC CONTROL) | |
| | 8N-1521 | [1] | BELL AS-END | |
| | 8N-1523 | [1] | LOCKWASHER | |
| | 9X-6856 | [24] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 8N-1513 | [1] | RECEPTACLE AS-CONNECTOR(37-PIN) | |
| | 114-8843E | | SLEEVE-PLASTIC(260-CM) | |
| | 180-9340 | [4] | SOCKET-CONNECTOR(14-GA TO 18-GA) | |
| | 8T-8730 | [23] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| | 9X-6772 | [1] | STRAP-CABLE | |
| | 125-7874E | | TUBE-HEAT SHRINK(5.72-MM DIA)(10-CM) | |
| | 155-2267 | [1] | PLUG AS-CONNECTOR(3-PIN) | |
| | 155-2270 | [12] | KIT-CONNECTING PLUG(2-PIN) | |
| | | | (EACH INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| 24. | 230-3166 | [1] | VALVE GP-RELIEF(TRANSMISSION FILTER) | |
| 25. | 209-6632Y | [1] | VALVE GP-BYPASS(POWER TRAIN OIL FILTER) | |
| 26. | 171-1526 | [1] | GUARD | |
| 27. | 117-1385 | [2] | SEAL-O-RING | |
| 28. | 130-5300 | [2] | CLIP | |
| 29. | 132-5789 | [9] | CLIP(LADDER) | |
| 30. | 190-5450 | [1] | BRACKET | |
| 31. | 4P-7429 | [2] | CLIP(LADDER) | |
| 32. | 4B-1226 | [1] | SCREW-MACHINE(10-24X6.35-MM) | |
| 33. | 4P-7581 | [6] | CLIP(LADDER) | |
| 34. | 4S-9191 | [2] | WASHER(12X22.5X5-MM THK) | |
| 35. | 5P-8245 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 36. | 5P-8347M | [8] | BOLT(M8X1.25X70-MM) | |
| 37. | 5P-9085 | [3] | CLIP(LOOP) | |
| 38. | 6F-0249 | [1] | SEAL-O-RING | |
| 39. | 6V-2316M | [1] | BOLT(M8X1.25X12-MM) | |
| 40. | 6V-3940M | [1] | BOLT(M8X1.25X25-MM) | |
| 41. | 6V-4248M | [2] | BOLT(M10X1.5X25-MM) | |
| 42. | 6V-5049 | [7] | SEAL-O-RING | |
| 43. | 6V-5215M | [4] | BOLT(M8X1.25X16-MM) | |
| 44. | 6V-5839 | [7] | WASHER(11X21X2.5-MM THK) | |
| 45. | 6V-6317M | [2] | BOLT(M10X1.5X20-MM) | |
| 46. | 6V-8455M | [3] | BOLT(M10X1.5X16-MM) | |
| 47. | 6V-8675M | [4] | BOLT(M12X1.75X35-MM) | |
| 48. | 8M-1112 | [1] | SEAL-O-RING | |
| 49. | 8M-4432 | [1] | SEAL-O-RING | |
| 50. | 8T-0100M | [16] | BOLT(M8X1.25X60-MM) | |
| 51. | 9M-1974 | [30] | WASHER-HARD(8.8X16X2-MM THK) | |
| 52. | 9X-4609 | [1] | SEAL-O-RING | |
| 53. | 9X-8268 | [2] | WASHER(17.5X30X3.5-MM THK) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
