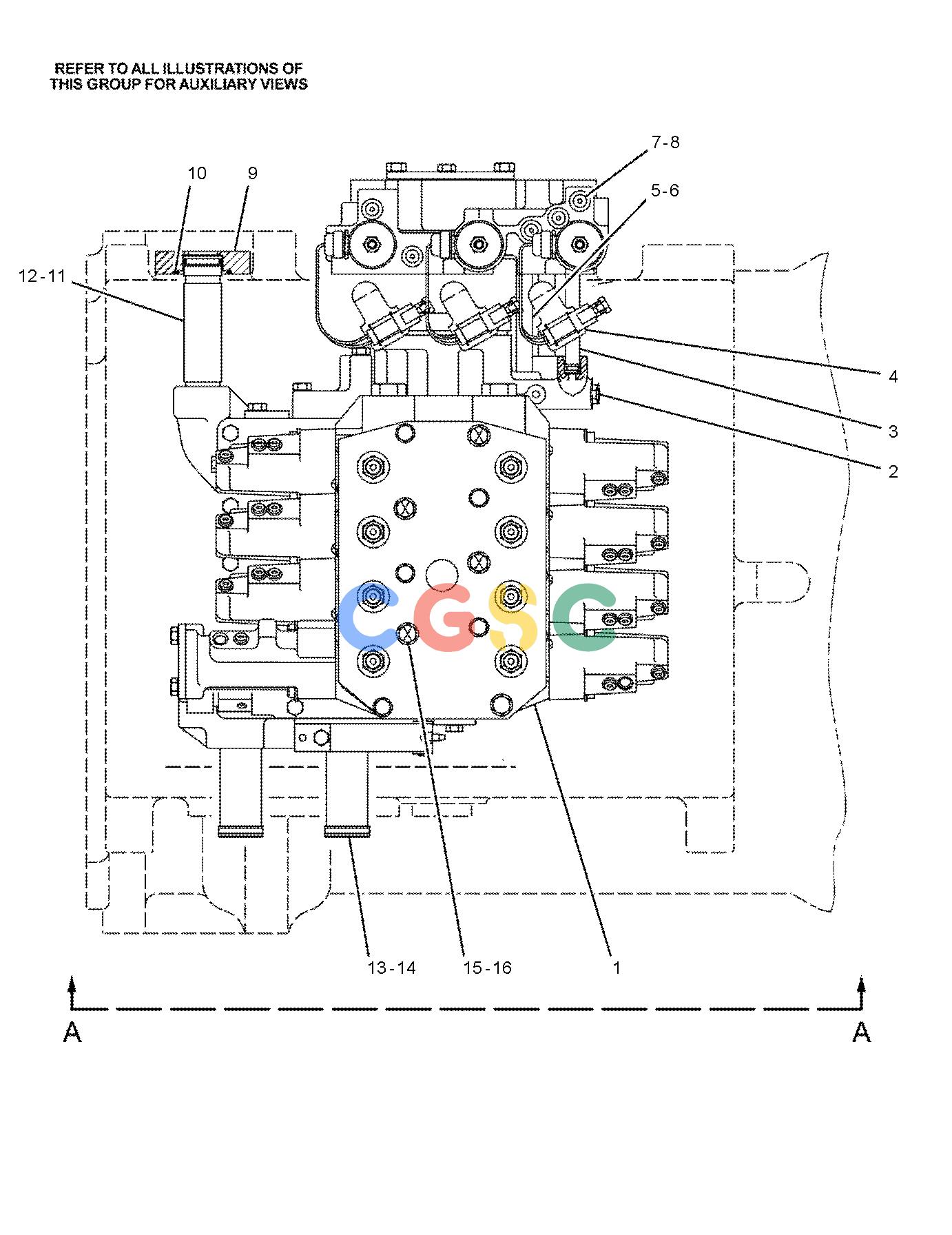

卡特零件查询（735） 147-2352: CONTROL GP-TRANSMISSION HYD
广数供应链运营团队, 15 02月, 2025，浏览：
275 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 150-4728Y | [1] | VALVE GP-CONTROL(TRANSMISSION) | |
| 2. | 8M-8157 | [6] | SEAL-O-RING | |
| 3. | 3T-0918 | [3] | SLEEVE | |
| 4. | 130-5300 | [3] | CLIP | |
| 5. | 3T-0919 | [1] | SLEEVE | |
| 6. | 6V-4365 | [2] | SEAL-O-RING | |
| 7. | 9S-8001 | [10] | PLUG | |
| 8. | 4J-7533 | [10] | SEAL-O-RING | |
| 9. | 9G-9412 | [1] | ADAPTER | |
| 10. | 8M-4992 | [1] | SEAL-O-RING | |
| 11. | 7G-9473 | [1] | SLEEVE | |
| 12. | 8M-4432 | [2] | SEAL-O-RING | |
| 13. | 7G-1595 | [2] | SLEEVE | |
| 14. | 8M-5254 | [4] | SEAL-O-RING | |
| 15. | 9F-2773 | [4] | BOLT(3/8-16X8.5-IN) | |
| 16. | 5M-2894 | [6] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 17. | 0S-0509 | [2] | BOLT(3/8-16X0.75-IN) | |
| 18. | 120-9288 | [1] | HARNESS AS-TRANSMISSION(HYDRAULIC CONTROL) | |
| | 9W-3089 | [1] | HOUSING | |
| | 9W-3086 | [1] | KEY-POLARIZING | |
| | 5S-3657 | [1] | RECEPTACLE AS-CONNECTOR(10-PIN) | |
| | 9W-3087 | [8] | TERMINAL(CRIMP) | |
| | 8T-6342E | | TUBE-HEAT SHRINK(3.2-MM DIA)(28-CM) | |
| 19. | 8M-4988 | [1] | SEAL-O-RING | |
| 20. | 216-0280Y | [1] | SENSOR GP-POSITION(TRANSMISSION SPEED) | |
| 21. | 3D-4197 | [1] | COVER | |
| 22. | 193-8559Y | [3] | VALVE GP-SOLENOID(TRANSMISSION) | |
| 23. | 9S-8005 | [5] | PLUG(3/4-16-THD) | |
| 24. | 3K-0360 | [5] | SEAL-O-RING | |
| 25. | 5F-7054 | [5] | SEAL-O-RING | |
| 26. | 9S-8004 | [1] | PLUG(9/16-18-THD) | |
| 27. | 3J-1907 | [3] | SEAL-O-RING | |
| 28. | 0S-1594 | [7] | BOLT(3/8-16X1-IN) | |
| 29. | 8T-4896 | [3] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 30. | 6V-0484 | [1] | ELBOW | |
| 31. | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| 32. | 6V-0852 | [1] | CAP-DUST | |
| 33. | 0S-1619 | [2] | BOLT(3/8-16X3-IN) | |
| 34. | 0S-1617 | [6] | BOLT(5/16-18X0.75-IN) | |
| 35. | 0L-2070 | [2] | BOLT(3/8-16X2.25-IN) | |
| 36. | 6T-5132 | [1] | COVER | |
| 37. | 6T-5133 | [1] | GASKET | |
| 38. | 100-3998 | [1] | MANIFOLD AS | |
| | 5P-7661 | [1] | BEARING AS-NEEDLE | |
| 39. | 8M-4446 | [1] | SEAL-O-RING | |
| 40. | 7S-5757 | [1] | RING-RETAINING | |
| 41. | 6Y-9850 | [1] | COUPLING AS | |
| 42. | 8S-5575 | [1] | SEAL-LIP TYPE | |
| | E | | ORDER BY THE CENTIMETER |
| | Y | | SEPARATE ILLUSTRATION |
