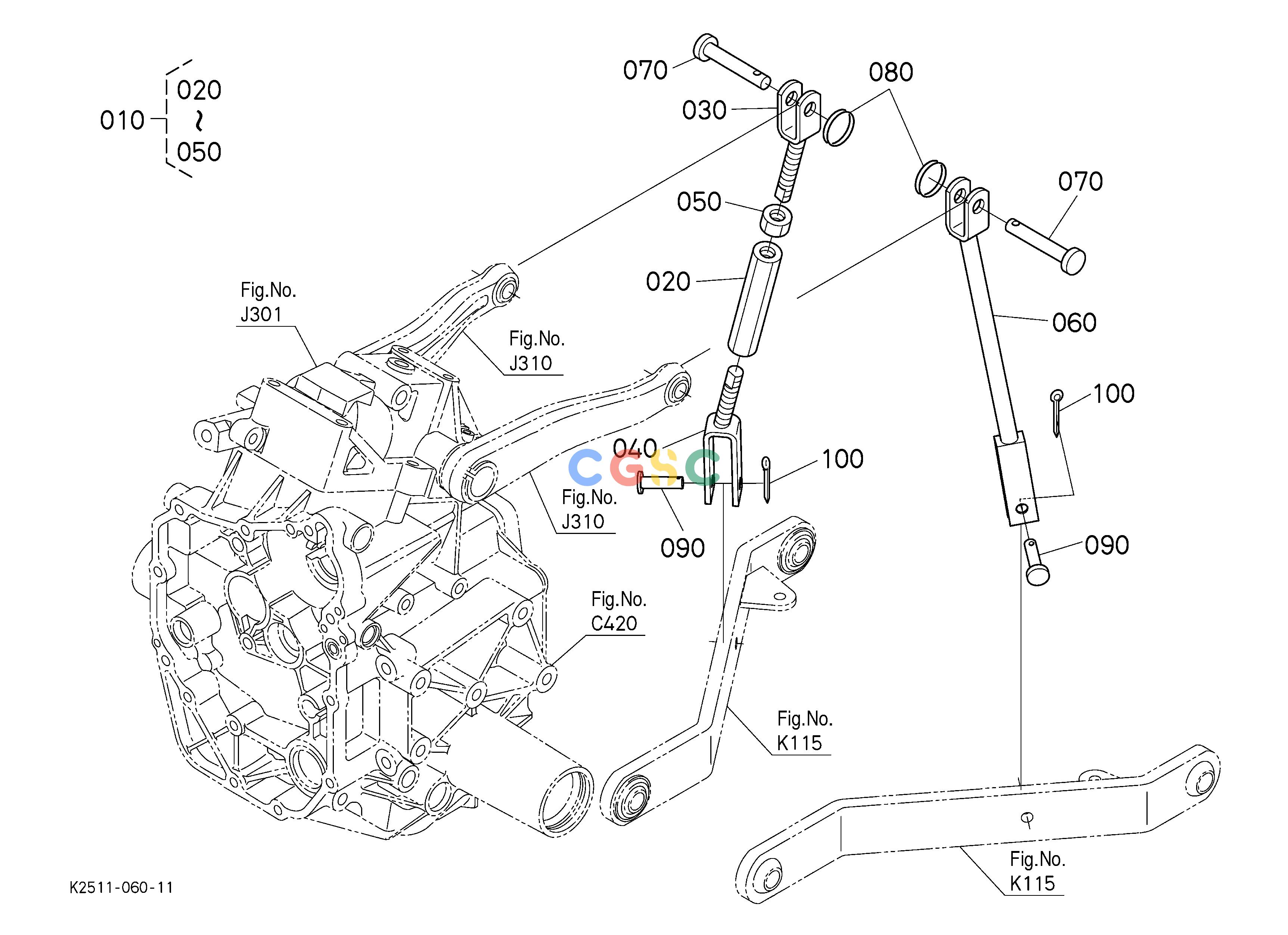

久保田零件查询K11600 LIFT ROD TOP LINK/TOP LINK BRACKET/PTO PROTECTOREPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
313 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
K256138220
|
[1] |
ASSY ROD LIFT RH
|
3.0800(lbs); 1.400
|
| 020. |
K256138250
|
[1] |
TURNBUCKLE
|
1.1000(lbs); 0.500
|
| 030. |
K256138230
|
[1] |
ROD LIFT UPPER RH
|
0.8360(lbs); 0.380
|
| 040. |
K256138240
|
[1] |
ROD LIFT LOWER RH
|
1.1000(lbs); 0.500
|
| 050. |
7559931018
|
[1] |
NUT
|
0.0660(lbs); 0.030
|
| 060. |
K256138270
|
[1] |
ROD LIFT LH
|
2.3540(lbs); 1.070
|
| 070. |
0512251650
|
[2] |
PIN JOINT
|
0.1980(lbs); 0.090
|
| 080. |
K514272730
|
[2] |
RING SNAP
|
0.0066(lbs); 0.003
|
| 090. |
0512261245
|
[2] |
PIN JOINT
|
0.0990(lbs); 0.045
|
| 100. |
7559953194
|
[2] |
PIN COTTER
|
0.0022(lbs); 0.001
|
