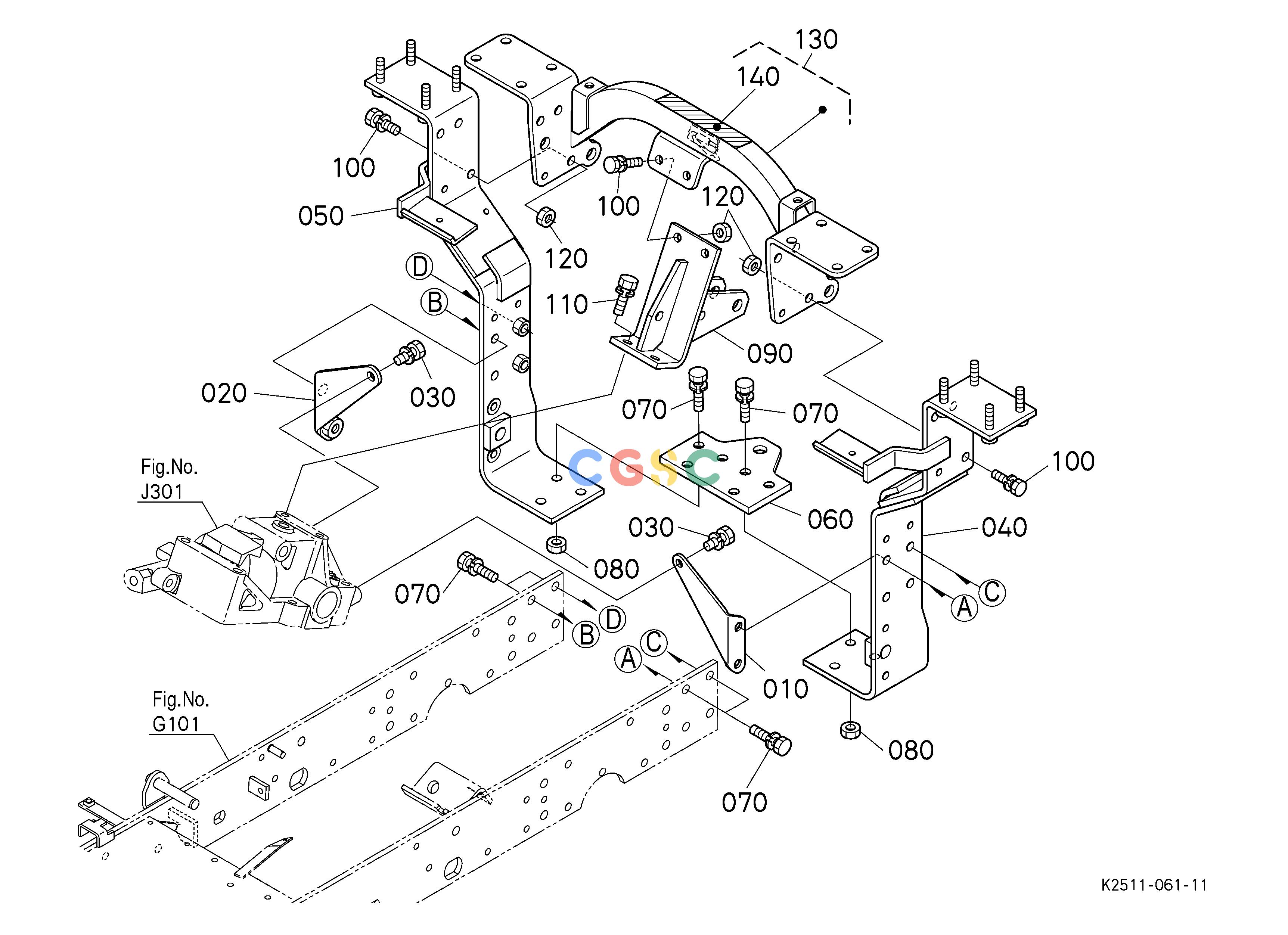

久保田零件查询K12300 TOP LINK BRACKET TOP LINK/TOP LINK BRACKET/PTO PROTECTOREPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
904 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
K256121070
|
[1] |
SUPPORT REAR LH
|
0.0000(lbs); 0.000
|
| 020. |
K256121080
|
[1] |
SUPPORT REAR RH
|
0.0000(lbs); 0.000
|
| 030. |
0112351225
|
[2] |
BOLT
|
0.0880(lbs); 0.040
|
| 040. |
K251139013
|
[1] |
BRACKET FENDER LH
|
22.0000(lbs); 10.000
|
| 050. |
K251139023
|
[1] |
BRACKET FENDER RH
|
22.0000(lbs); 10.000
|
| 060. |
K256139180
|
[1] |
PLATE HITCH
|
5.4120(lbs); 2.460
|
| 070. |
0113351440
|
[14] |
BOLT
|
0.1540(lbs); 0.070
|
| 080. |
0217450140
|
[6] |
NUT
|
0.0308(lbs); 0.014
|
| 090. |
K251139130
|
[1] |
STAY FENDER CENTER
|
8.0740(lbs); 3.670
|
| 100. |
0113351435
|
[8] |
BOLT
|
0.1320(lbs); 0.060
|
| 110. |
0113351440
|
[2] |
BOLT
|
0.1540(lbs); 0.070
|
| 120. |
0217450140
|
[8] |
NUT
|
0.0308(lbs); 0.014
|
| 130. |
K251193952
|
[1] |
KIT BRACKET FENDER
|
20.6800(lbs); 9.400
|
| 130. |
K251793950
|
[1] |
KIT BRACKET FENDER
|
18.7000(lbs); 8.500
|
| 140. |
K256165570
|
[1] |
LABEL ROPS WARNING
|
0.0000(lbs); 0.000
|
| 140. |
K251765570
|
[1] |
LABEL ROPS WARNING
|
0.0000(lbs); 0.000
|
