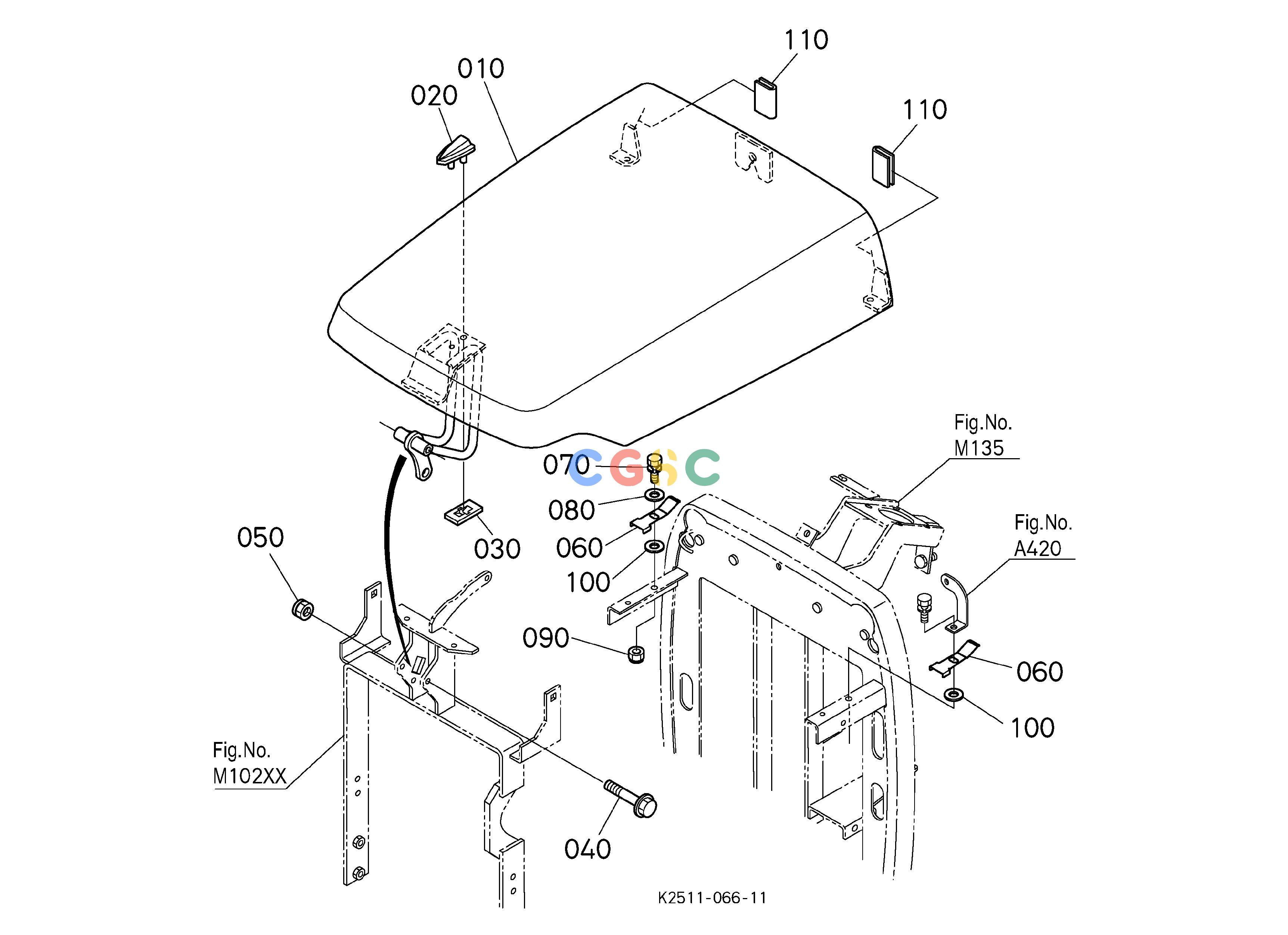

久保田零件查询M10502 BONNET ## S.No.>=56655 HOOD/BONNETEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
792 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
K251154110
|
[1] |
COMP.BONNET UPPER
|
11.6600(lbs); 5.300
|
| 020. |
K256154130
|
[1] |
MARK
|
0.0176(lbs); 0.008
|
| 030. |
K256154170
|
[1] |
NUT
|
0.0022(lbs); 0.001
|
| 040. |
0175450870
|
[1] |
BOLT FLANGE
|
0.0616(lbs); 0.028
|
| 050. |
K511272840
|
[1] |
NUT LOCK
|
0.0110(lbs); 0.005
|
| 060. |
K257154372
|
[2] |
DAMPER BONNET
|
0.0176(lbs); 0.008
|
| 070. |
0112350820
|
[1] |
BOLT
|
0.0242(lbs); 0.011
|
| 080. |
0401360080
|
[1] |
WASHER PLAIN
|
0.0044(lbs); 0.002
|
| 090. |
0275150080
|
[1] |
NUT FLANGE
|
0.0132(lbs); 0.006
|
| 100. |
0401250080
|
[2] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 110. |
K256154380
|
[2] |
TRIM SASH
|
0.0110(lbs); 0.005
|
