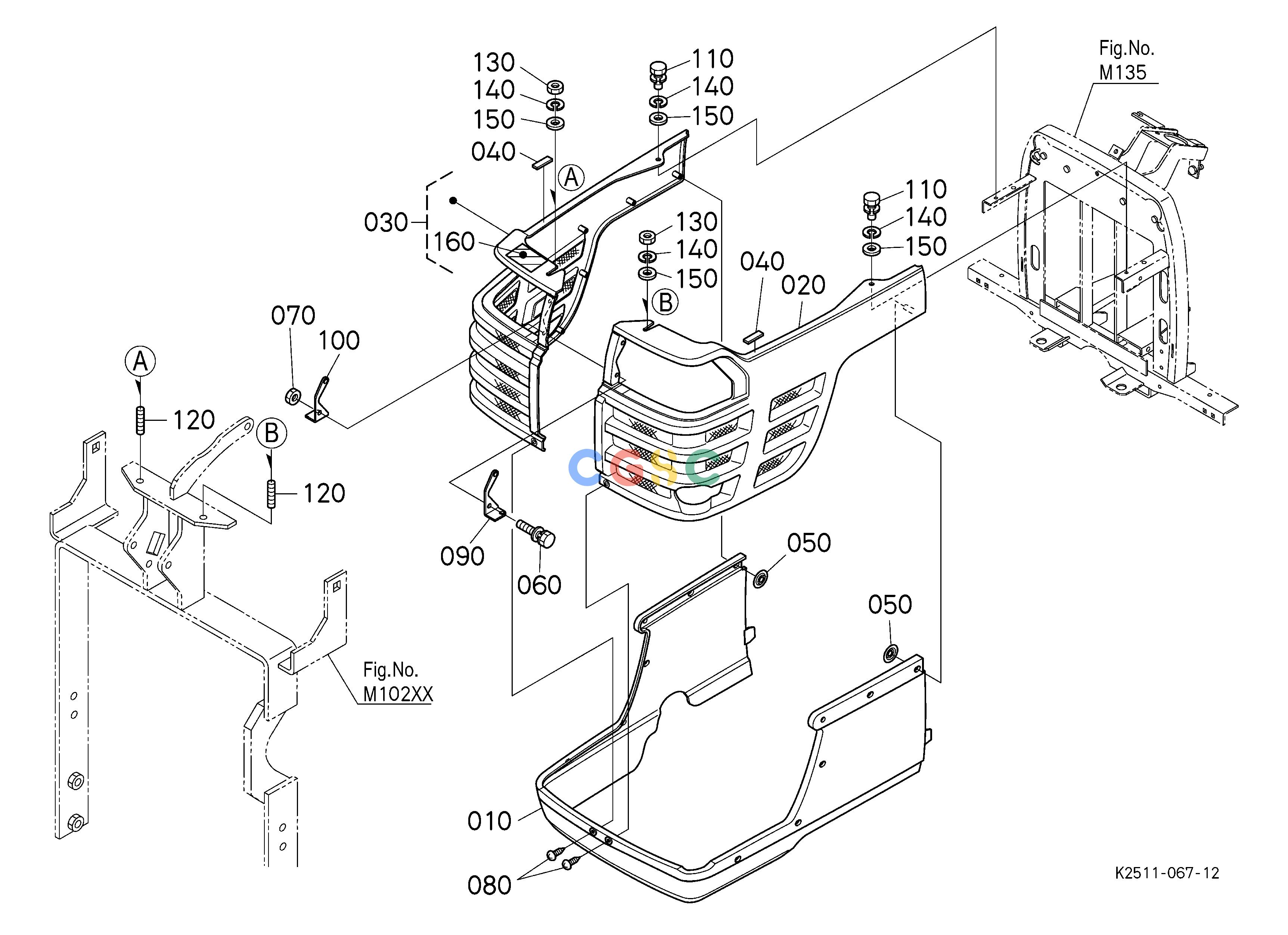

久保田零件查询M11000 BONNET SIDE HOOD/BONNETEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
453 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
K251154140
|
[1] |
BONNET UNDER
|
5.2800(lbs); 2.400
|
| 020. |
K251154150
|
[1] |
COVER LH
|
1.7600(lbs); 0.800
|
| 030. |
K251195410
|
[1] |
KIT COVER BONNET RH
|
6.9300(lbs); 3.150
|
| 040. |
K256154200
|
[2] |
CUSHION
|
0.0088(lbs); 0.004
|
| 050. |
K256154410
|
[12] |
NUT
|
0.0022(lbs); 0.001
|
| 060. |
0102550655
|
[2] |
BOLT
|
0.0330(lbs); 0.015
|
| 070. |
0275150060
|
[2] |
NUT FLANGE
|
0.0110(lbs); 0.005
|
| 080. |
K256154180
|
[2] |
SCREW TAPPING
|
0.0110(lbs); 0.005
|
| 090. |
K257154350
|
[1] |
STAY HEAD RIGHT LH
|
0.0880(lbs); 0.040
|
| 100. |
K257154360
|
[1] |
STAY HEAD RIGHT RH
|
0.0880(lbs); 0.040
|
| 110. |
0102350620
|
[2] |
BOLT
|
0.0132(lbs); 0.006
|
| 120. |
0151350625
|
[2] |
STUD
|
0.0154(lbs); 0.007
|
| 130. |
0201450060
|
[2] |
NUT
|
0.0044(lbs); 0.002
|
| 140. |
0451250060
|
[4] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 150. |
0401560060
|
[4] |
WASHER PLAIN
|
0.0110(lbs); 0.005
|
| 160. |
K256165420
|
[1] |
LABEL HOT CAUTION
|
0.0000(lbs); 0.000
|
