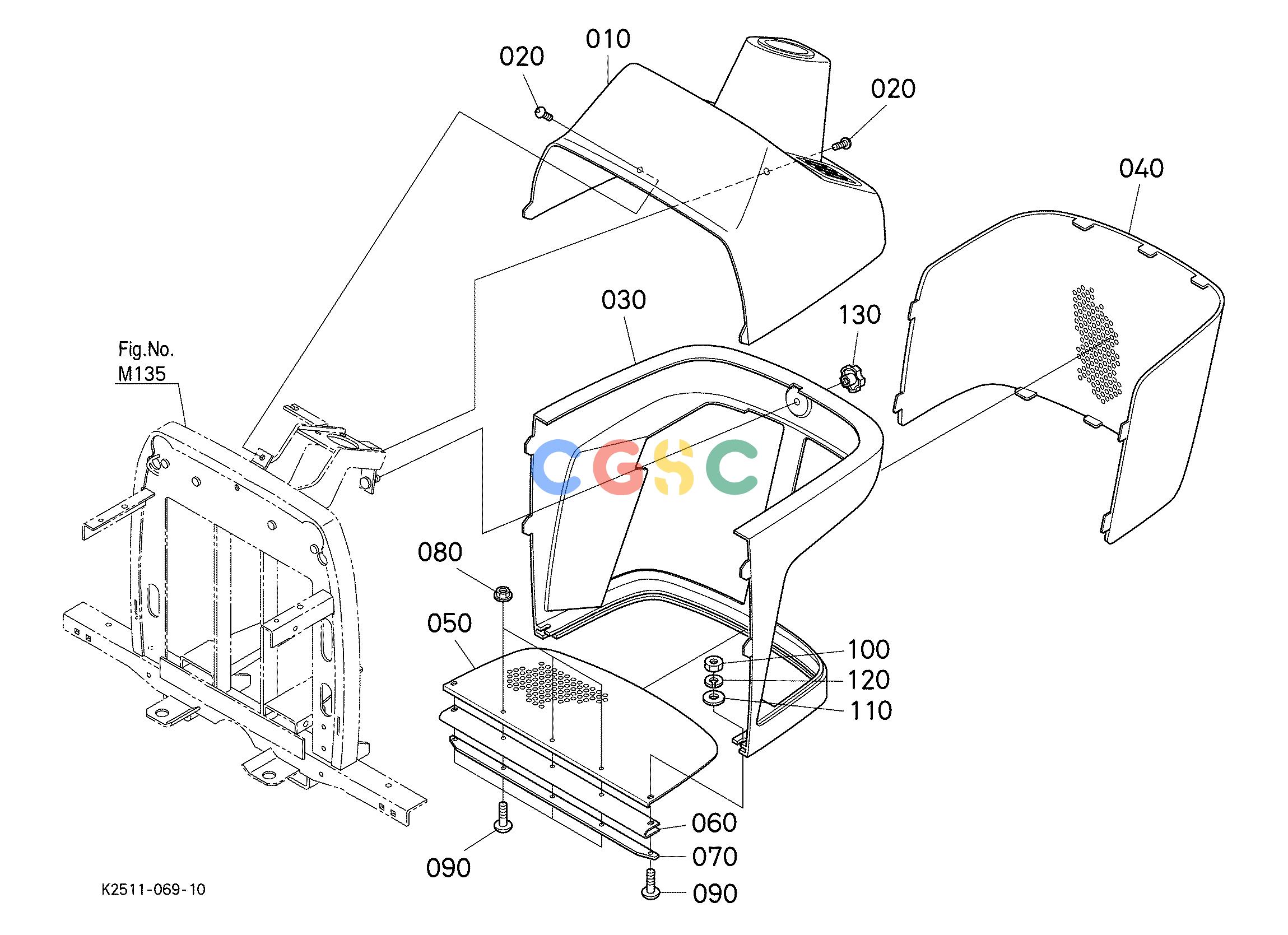

久保田零件查询M20100 PANEL FRAME HOOD/BONNETEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
739 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
K256157110
|
[1] |
PANEL UPPER
|
3.1900(lbs); 1.450
|
| 020. |
K256157160
|
[2] |
SCREW CR-REC-BD-HD
|
0.0220(lbs); 0.010
|
| 030. |
K256157130
|
[1] |
PANEL UNDER
|
4.8730(lbs); 2.215
|
| 040. |
K256157140
|
[1] |
PLATE AIR SCREEN U.
|
1.2320(lbs); 0.560
|
| 050. |
K256157150
|
[1] |
PLATE AIR SCREEN D.
|
0.6820(lbs); 0.310
|
| 060. |
K256157180
|
[1] |
PLATE RUBBER DUST
|
0.0660(lbs); 0.030
|
| 070. |
K256157190
|
[1] |
PLATE RUBBER HOLD
|
0.3652(lbs); 0.166
|
| 080. |
0275150060
|
[3] |
NUT FLANGE
|
0.0110(lbs); 0.005
|
| 090. |
0301750616
|
[5] |
SCREW CR-REC-BD-HD
|
0.0110(lbs); 0.005
|
| 100. |
0201450060
|
[2] |
NUT
|
0.0044(lbs); 0.002
|
| 110. |
0451260060
|
[2] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 120. |
0401360060
|
[2] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 130. |
K256157170
|
[1] |
NUT KNOB
|
0.0330(lbs); 0.015
|
