约翰迪尔零件查询HTH470HD - ATTACHMENTS DELIMBERS BLADES [A16]EPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 136 次

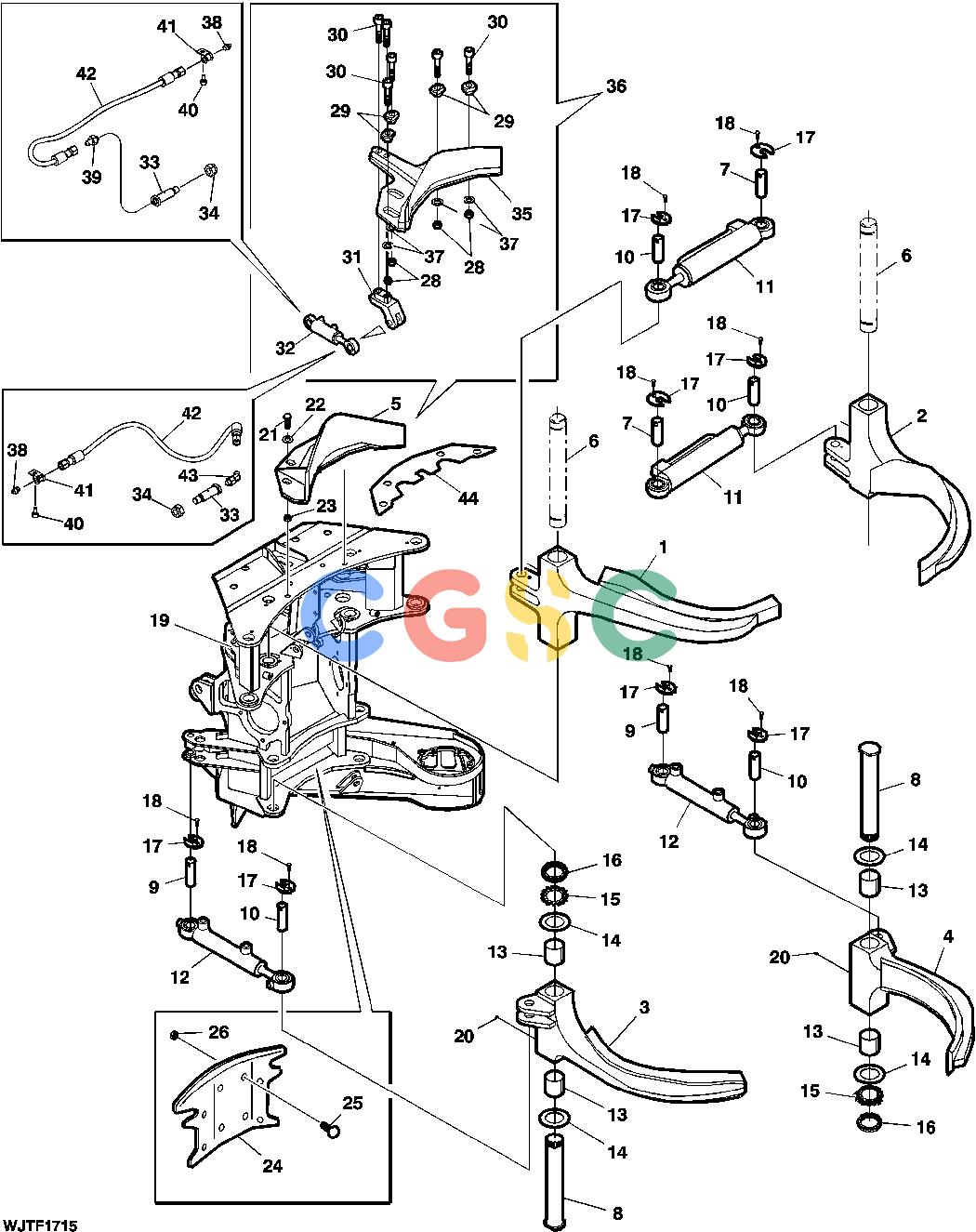

Pos.	Part No	Qty	Parts name	Comments
1.	F059438	[1]	Knife
1.	F654194	[1]	Knife
2.	F059439	[1]	Knife
2.	F654193	[1]	Knife
3.	F654196	[1]	Knife
4.	F654195	[1]	Knife
5.	F055987	[1]	Knife
5.	F654126	[1]	Knife	(REPLACES F055987)
5.	F654127	[1]	Knife	OPTION, WIDE MODEL
6.	........	[2]	Pin	SEE PAGE 4443-4
7.	F059440	[2]	Shaft
8.	F055986	[2]	Pin Fastener
8.	F061181	[2]	Pin Fastener	OPTIONAL EQUIPMENT, SEE PAGE 4401-3A
9.	F055983	[2]	Pin Fastener
10.	F047673	[4]	Pin
11.	........	[2]	Hydraulic Cylinder	SEE PAGES 4465-4, 4465-5A
12.	F058141	[2]	Cylinder	SEE PAGE 4465-6
13.	F010872	[4]	Bushing
14.	F047677	[4]	Bearing	2 MM
14.	F631333	[4]	Bearing	REPAIR PART, 2.5 MM
15.	F003829	[2]	Lock Washer
16.	F003834	[2]	Lock Nut
17.	F639219	[8]	Plate	(REPLACES F047647)
18.	F003523	[8]	Screw
19.	F654200	[1]	Frame	OM
19.	F654201	[1]	Frame	SUPERCUT
19.	F654202	[1]	Frame	VERTICAL
20.	58M5574	[2]	Lubrication Fitting
21.	F011154	[4]	Screw
21.	19M9425	[4]	Cap Screw	USE WITH ITEM 44, F647428
22.	F003341	[4]	Washer
23.	F003591	[4]	Lock Nut
24.	F066184	[1]	Knife	OPTION
25.	19M9008	[8]	Screw	M12 X 50, OPTION
26.	F003590	[8]	Lock Nut	OPTION
28.	14M7609	[4]	Lock Nut	M16, OPTION, (REPLACES F003591)
29.	F641477	[4]	Guide	OPTION, (REPLACES F024722)
30.	19M9518	[6]	Screw	M16 X 65, OPTION
31.	F055981	[1]	Lug	OPTION
32.	F008569	[1]	Cylinder	OPTION, SEE PAGE 4465-16
33.	F642363	[2]	Pin	OPTION, (REPLACES F003260)
34.	F003590	[2]	Lock Nut	OPTION, (REPLACES F032060)
35.	F654129	[1]	Knife	OPTION, GENTLE MODEL
35.	F636223	[1]	Knife	OPTION, SHEER MODEL
36.	F647211	[1]	Knife	INCL. ITEM 28-43, GENTLE MODEL, OPTION
36.	F647235	[1]	Knife	INCL. ITEM 28-43, SHEER MODEL, OPTION
37.	24M7497	[4]	Washer	17 X 30 X 3 MM, OPTION
38.	58M7015	[2]	Lubrication Fitting	OPTION
39.	F005053	[1]	Fitting	OPTION
40.	F017300	[2]	Screw	OPTION
41.	F034494	[2]	Hose Support	OPTION
42.	F633756	[2]	Hydraulic Hose	OPTION
43.	X4V4OMXS	[1]	Elbow Fitting	OPTION
44.	F647428	[1]	Plate	OPTION
