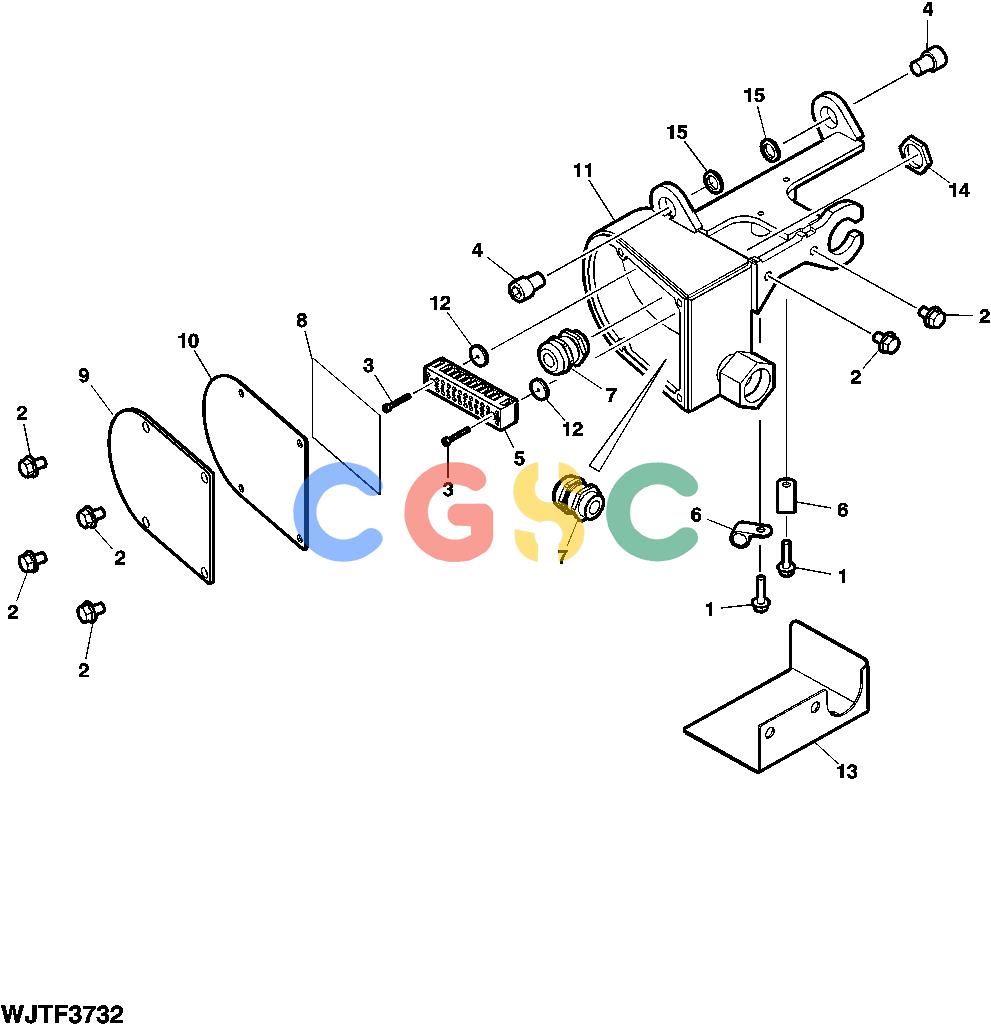

约翰迪尔零件查询HTH470HD - ATTACHMENTS ELECTRICAL BOX FOR TILT FROM SERIAL NO. XXX- [B01]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
495 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 0. |
F645708
|
[1] |
Elec. Connector Accessory
|
|
| 1. |
19M9445
|
[2] |
Screw
|
|
| 2. |
19M9446
|
[6] |
Screw
|
|
| 2. |
19M9567
|
[6] |
Screw
|
|
| 3. |
19M9469
|
[2] |
Screw
|
|
| 4. |
19M9796
|
[2] |
Socket Head Screw
|
|
| 5. |
F005308
|
[1] |
Elec. Connector Terminal
|
|
| 6. |
F062640
|
[2] |
Hose Support
|
|
| 7. |
F070880
|
[2] |
Conduit
|
|
| 8. |
F643150
|
[1] |
Sign
|
|
| 9. |
F645574
|
[1] |
Plate
|
|
| 10. |
F645575
|
[1] |
Seal
|
|
| 11. |
F647084
|
[1] |
Housing
|
|
| 12. |
F647106
|
[1] |
Seal
|
|
| 13. |
F647306
|
[1] |
Plate
|
|
| 14. |
F071870
|
[1] |
Nut
|
|
| 15. |
F002805
|
[2] |
Lock Washer
|
|
