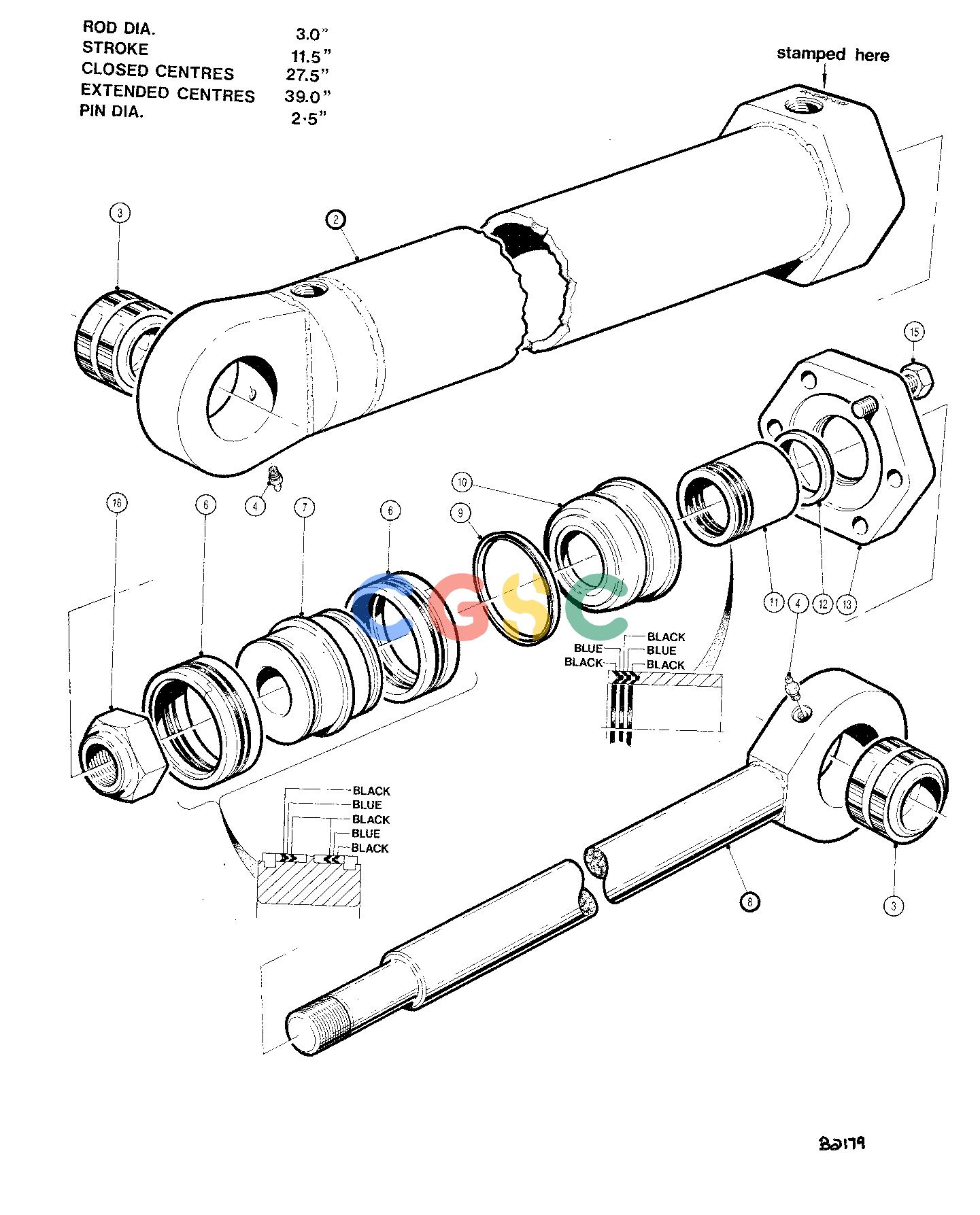

约翰迪尔零件查询JD793D - ATTACHMENTS CYLINDER WRIST 22`` HEAD ( 12751 - 12960) 2879-012/10 [2879-012/10]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
315 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
700430900
|
[1] |
Cylinder
|
|
| 2. |
700550600
|
[1] |
Housing
|
|
| 3. |
F121023
|
[2] |
Bearing
|
|
| 4. |
810000100
|
[2] |
GREASE FITTING.N610
|
|
| 6. |
811445700
|
[2] |
SEAL PACKAGE
|
|
| 7. |
700427200
|
[1] |
Piston
|
|
| 8. |
700427000
|
[1] |
ROD - INCL. ITEMS 3,4
|
|
| 9. |
700845300
|
[1] |
Seal
|
|
| 10. |
700427100
|
[1] |
GLAND
|
|
| 11. |
700845100
|
[1] |
ROD SEAL
|
|
| 12. |
700608500
|
[1] |
WIPER-ROD
|
|
| 13. |
701141100
|
[1] |
KEEPER PLATE 6``
|
|
| 15. |
810584100
|
[6] |
BOLT .8750-14X3.50
|
|
| 16. |
700248700
|
[1] |
LOCKNUT
|
|
| |
700564400
|
[1] |
Seal Kit
|
|
| |
|
|
NOTE 1: CYL. ASSY. REPLACED BY 7004098
|
|
