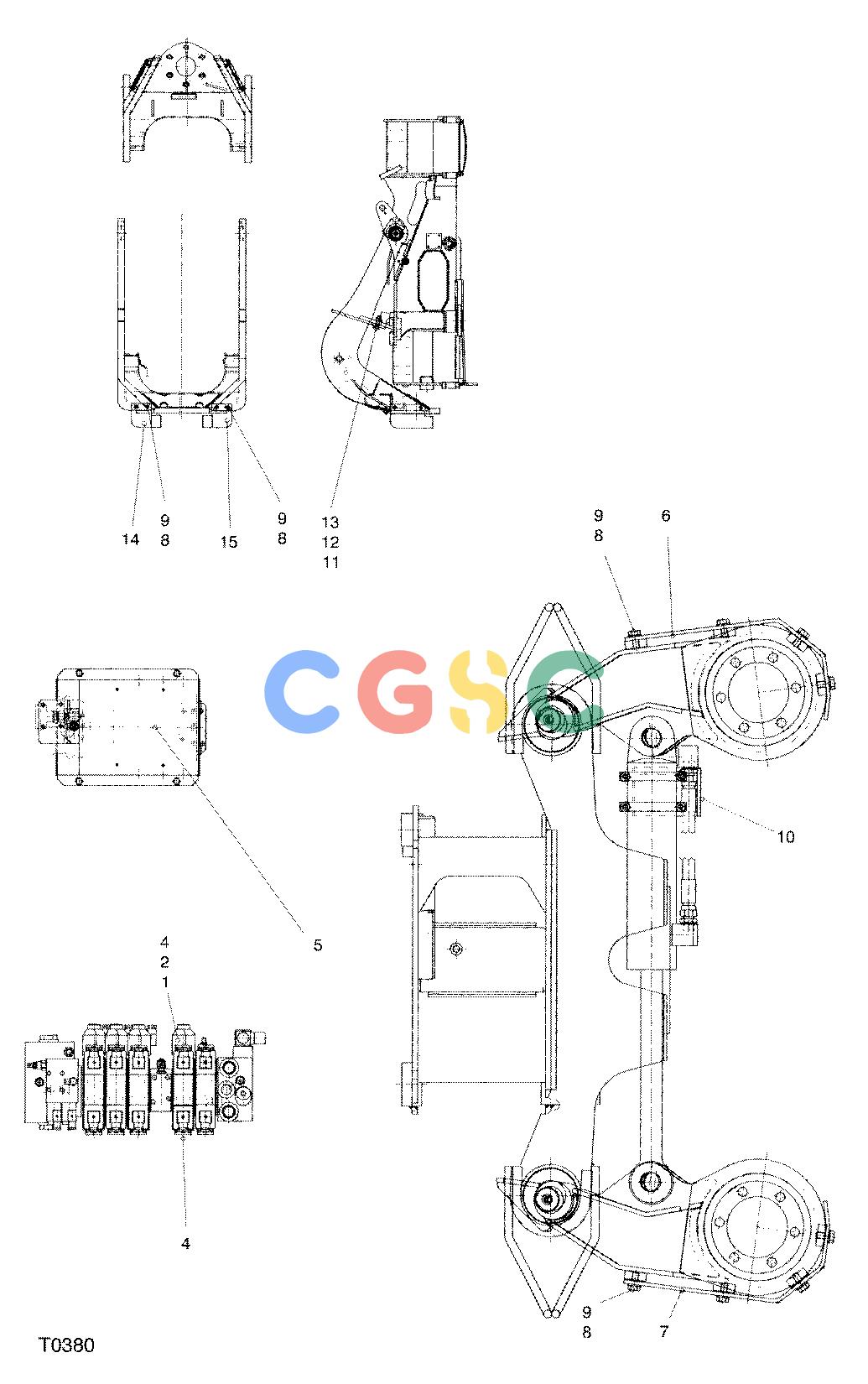

约翰迪尔零件查询KB200F - ATTACHMENTS FELLING HEAD ACCESSORIES 762B ( 1305 - ) 4535-025/10 [4535-025/10]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
738 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
F018367
|
[1] |
BLOCK - ROTATOR
|
|
| 2. |
F031737
|
[1] |
BLOCK - FLOW POSITION
|
|
| 3. |
F019944
|
[2] |
UNION
|
|
| 4. |
F010072
|
[2] |
Fitting
|
|
| 5. |
F008194
|
[1] |
Amplifier
|
|
| 6. |
F031096
|
[1] |
Cover
|
|
| 7. |
F031099
|
[1] |
Cover
|
|
| 8. |
F003540
|
[12] |
Bolt
|
|
| 9. |
F015376
|
[12] |
Washer
|
|
| 10. |
F031187
|
[1] |
Cover
|
|
| 11. |
F028503
|
[1] |
Hook
|
|
| 12. |
F003554
|
[1] |
BOLT M16-2.00X45
|
|
| 13. |
F003568
|
[1] |
NUT M16X2.00
|
|
| 14. |
F031185
|
[1] |
Cover
|
|
| 15. |
F031286
|
[1] |
Cover
|
|
