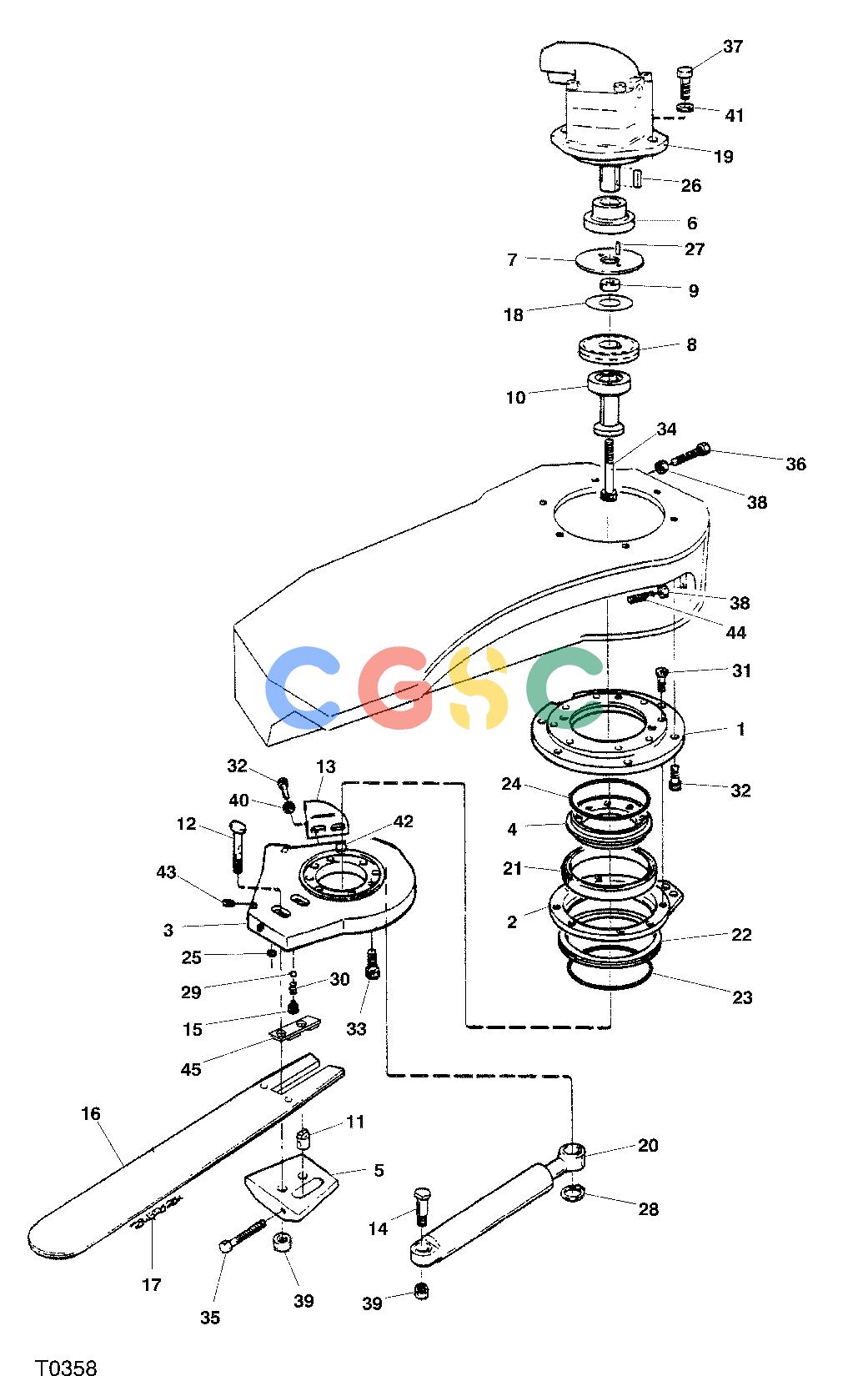

约翰迪尔零件查询TJ608F - ATTACHMENTS SAW 762B ( O012 - ) 4535-013/10 [4535-013/10]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
483 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
F009837
|
[1] |
Holder
|
|
| 2. |
F009841
|
[1] |
BEARING RING
|
|
| 3. |
F009831
|
[1] |
Holder
|
|
| 4. |
F009839
|
[1] |
BEARING RING
|
|
| 5. |
F009835
|
[1] |
Holder
|
|
| 6. |
F011207
|
[1] |
Driver
|
|
| 7. |
F011208
|
[1] |
Washer
|
|
| 8. |
F020180
|
[1] |
SPROCKET WHEEL
|
|
| 9. |
F011209
|
[1] |
Sleeve
|
|
| 10. |
F019801
|
[1] |
CHAIN CATCHER
|
|
| 11. |
F011217
|
[1] |
Tightener
|
|
| 12. |
F021404
|
[2] |
Bolt
|
|
| 13. |
F009836
|
[1] |
END PIECE
|
|
| 14. |
F014614
|
[1] |
Pin
|
|
| 15. |
F009848
|
[1] |
Plug
|
|
| 16. |
F020182
|
[1] |
BAR - SAW
|
|
| |
F002933
|
|
BAR - SAW
|
|
| 17. |
F010777
|
[1] |
Saw Chain
|
|
| |
F005519
|
[1] |
Saw Chain
|
|
| 18. |
F020181
|
|
Shim
|
|
| 19. |
F005473
|
[1] |
Motor
|
|
| 20. |
-------
|
[1] |
CYLINDER SAW
|
|
| 21. |
F005571
|
[1] |
Ball Bearing
|
|
| 22. |
F005506
|
[1] |
V-SEL
|
|
| 23. |
F004712
|
[1] |
O-Ring
|
|
| 24. |
F013914
|
[1] |
O-Ring
|
|
| 25. |
F013913
|
[1] |
O-Ring
|
|
| 26. |
F011194
|
[1] |
Key
|
|
| 27. |
F011196
|
[2] |
Pin
|
|
| 28. |
F003357
|
[1] |
CIRCLIP
|
|
| 29. |
F013607
|
[1] |
STEEL BALL
|
|
| 30. |
F013895
|
[1] |
Spring
|
|
| 31. |
F008572
|
[8] |
HEX.SOCKETHEAD SCREW
|
|
| 32. |
F003411
|
[8] |
Bolt
|
|
| 33. |
F008646
|
[8] |
HEX.SOCKETHEAD SCREW
|
|
| 34. |
F005572
|
[1] |
Bolt
|
|
| 35. |
F005572
|
[1] |
Bolt
|
|
| 36. |
F012712
|
[1] |
Screw
|
|
| 37. |
F003542
|
[2] |
BOLT, M12X1.75
|
|
| 38. |
F003564
|
[2] |
NUT, M10X1.5
|
|
| 39. |
F011198
|
[3] |
Nut
|
|
| 40. |
F003338
|
[2] |
Washer
|
|
| 41. |
F003340
|
[2] |
Washer
|
|
| 42. |
F010192
|
[1] |
REPLACED
|
|
| 43. |
F012758
|
[3] |
STOP SCREW
|
|
| 44. |
F024428
|
[1] |
STOP SCREW
|
|
| 45. |
F027648
|
[1] |
Gusset
|
|
