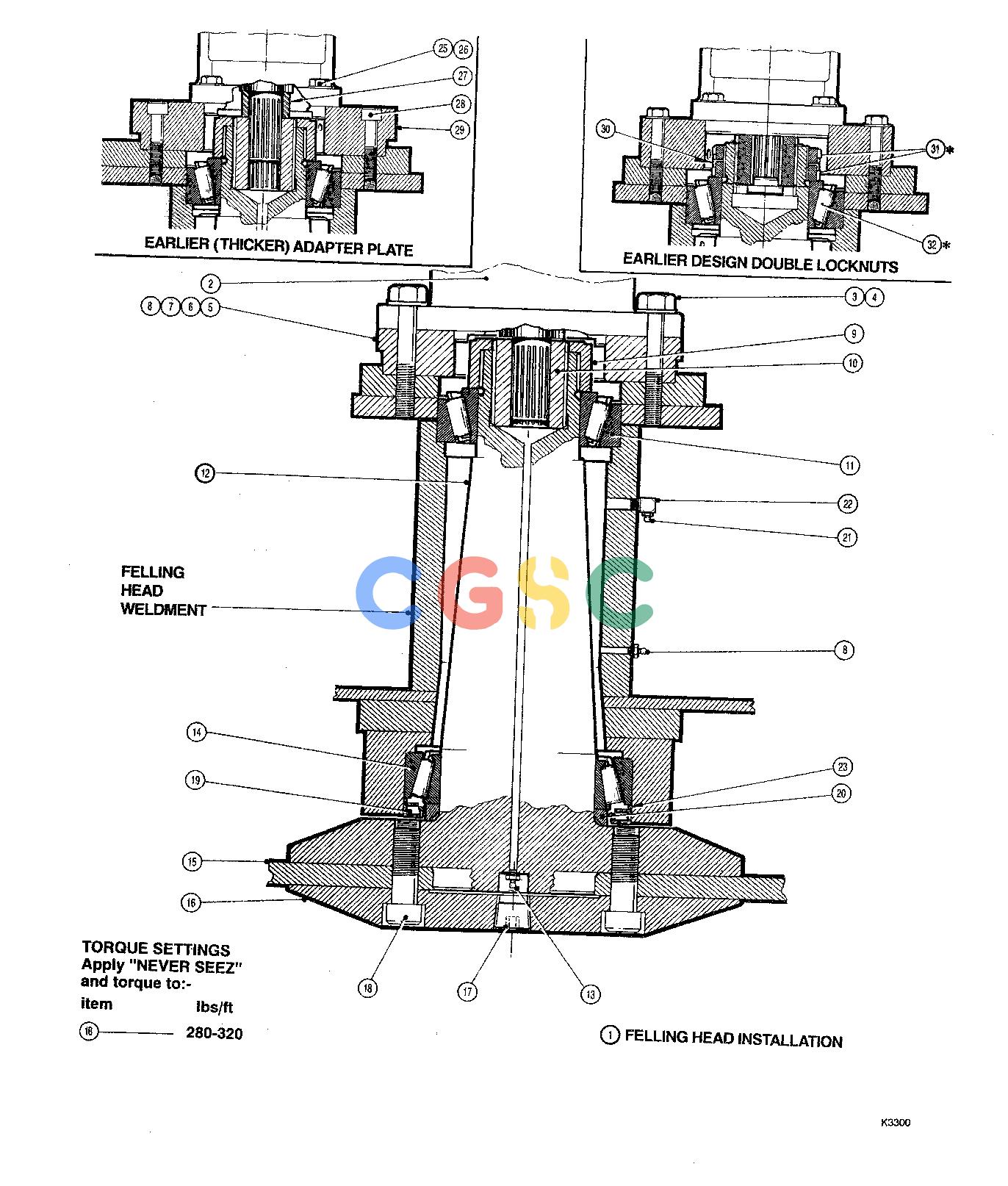

约翰迪尔零件查询TJ618 - ATTACHMENTS DISC SAW DRIVE 20`` HEAD ( 12101 - ) 4541-018/10 [4541-018/10]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
319 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
-------
|
[REF.] |
Felling Head
|
|
| 2. |
-------
|
[1] |
MOTOR - DISC SAW
|
|
| 3. |
810875200
|
[4] |
BOLT 3/4-10UNCX4-1/2
|
|
| 4. |
810002100
|
[4] |
WASHER 3/4
|
|
| 5. |
700755100
|
[1] |
Adapter
|
|
| 6. |
810112600
|
[1] |
Plug
|
|
| 7. |
840287000
|
[1] |
O-Ring
|
|
| 8. |
810000100
|
[2] |
GREASE FITTING.N610
|
|
| 9. |
700058000
|
[1] |
LOCKNUT
|
|
| 10. |
700057900
|
[1] |
ADAPTOR
|
|
| 11. |
700582600
|
[1] |
Bearing
|
|
| 12. |
700468200
|
[1] |
Drive Shaft
|
|
| 13. |
811242500
|
[1] |
Fitting
|
|
| 14. |
700582800
|
[1] |
Bearing
|
|
| 15. |
-------
|
[1] |
DISC BLADE
|
|
| 16. |
700620400
|
[1] |
Flange
|
|
| 17. |
810638100
|
[1] |
Plug
|
|
| 18. |
811349700
|
[12] |
BOLT 3/4-16X2.750
|
|
| 19. |
811447500
|
[1] |
Seal
|
|
| 20. |
700057800
|
[1] |
Spacer
|
|
| 21. |
810783000
|
[1] |
Breather
|
|
| 22. |
810781800
|
[1] |
ELBOW-90 DEG.
|
|
| 23. |
700058700
|
[1] |
Spacer
|
|
| 25. |
810084600
|
[4] |
BOLT 3/4-10UNCX2-1/2
|
|
| 26. |
810002100
|
[4] |
WASHER 3/4
|
|
| 27. |
700059000
|
[1] |
Spacer
|
|
| 28. |
840740800
|
[4] |
BOLT 1/2-13UNC 3-1/4
|
|
| 29. |
700058200
|
[1] |
ADAPTOR
|
|
| 30. |
842837200
|
[1] |
LOCKWASHER
|
|
| 31. |
811475800
|
[2] |
LOCKNUT 3.340
|
|
| 32. |
700587200
|
[1] |
CARRIER - 1-7/8`` THICK
|
|
| |
|
|
NOTE 1: TO CHANGE OVER FROM EARLIER
|
|
| |
|
|
DOUBLE LOCKNUT DESIGN, ORDER LATER
|
|
| |
|
|
DESIGN LOCKNUT, ITEM 9 AND UPPER
|
|
| |
|
|
BEARING ASSEMBLY, ITEM 11 TOGETHER
|
|
| |
|
|
UPPER BEARING ASSEMBLY IS 1/4`` THICKER
|
|
| |
|
|
THAN EARLIER DESIGN BEARING ITEM 32,
|
|
| |
|
|
TO ACCOMODATE LATER DESIGN LOCKNUT
|
|
