约翰迪尔零件查询1200 - AXLE AR107865 INPUT HOUSING (OC-1)EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
211 次

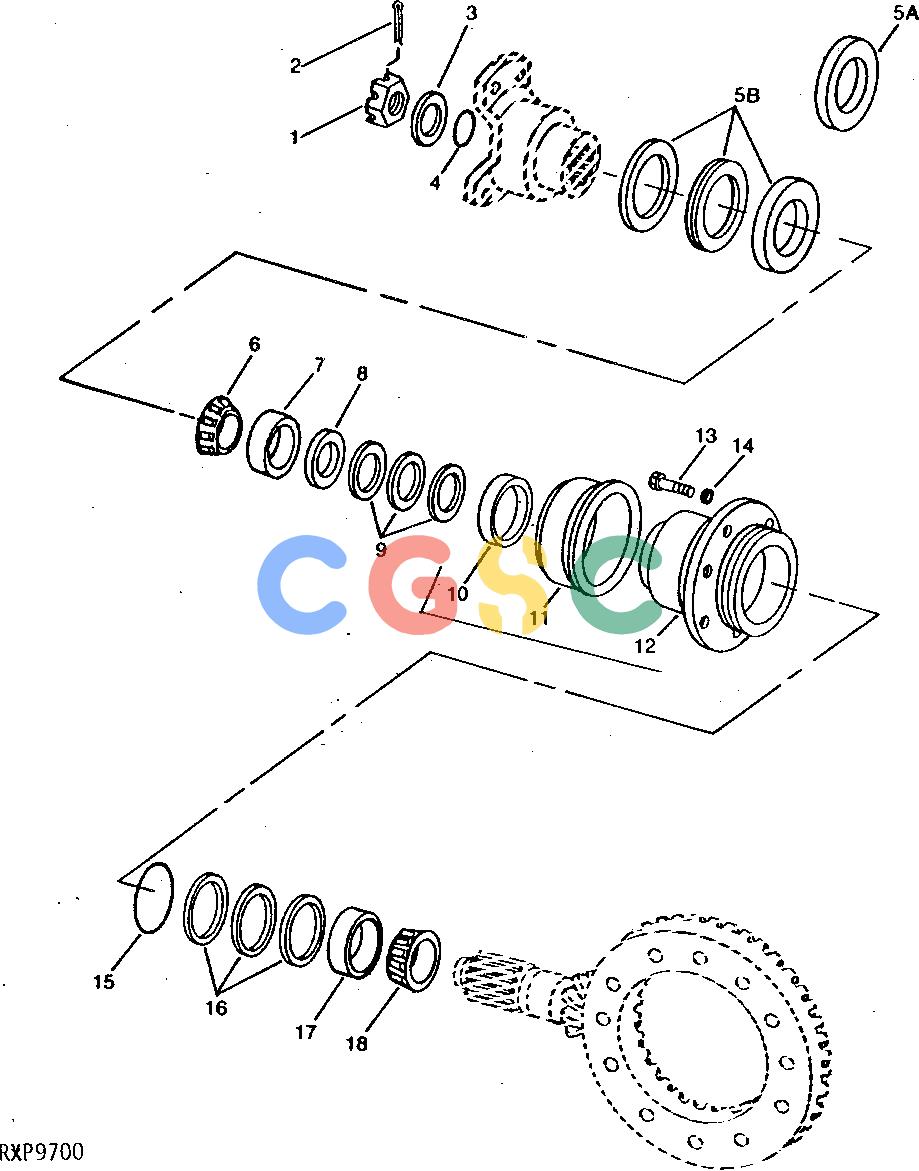

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
R48776
|
[1] |
Nut
|
|
| 2. |
11M7032
|
[1] |
Cotter Pin
|
|
| 3. |
R48733
|
[AR] |
Washer
|
|
| 3. |
R48734
|
[AR] |
Washer
|
|
| 3. |
R48735
|
[AR] |
Washer
|
|
| 4. |
U10289
|
[1] |
O-Ring
|
|
| 5. |
R37410
|
[1] |
Seal
|
|
| 5B. |
RE45312
|
[1] |
Seal Kit
|
|
| 6. |
JD8974
|
[1] |
Bearing Cone
|
|
| 7. |
JD8240
|
[1] |
Bearing Cup
|
|
| 8. |
R135535
|
[1] |
Washer
|
|
| 8. |
R163333
|
[1] |
Spacer
|
|
| 9. |
R45197
|
[AR] |
Shim
|
|
| 9. |
R45198
|
[AR] |
Shim
|
|
| 9. |
R45199
|
[AR] |
Shim
|
|
| 9. |
R45200
|
[AR] |
Shim
|
|
| 10. |
R70453
|
[1] |
Sleeve
|
|
| 11. |
R70452
|
[1] |
Sleeve
|
|
| 12. |
RE35234
|
[1] |
Bearing Housing W/O Bearing
|
|
| 13. |
R48783
|
[6] |
Cap Screw
|
|
| 14. |
24M7240
|
[6] |
Washer
|
|
| 15. |
R27796
|
[1] |
O-Ring
|
|
| 16. |
R26227
|
[AR] |
Shim
|
|
| 16. |
R26228
|
[AR] |
Shim
|
|
| 17. |
JD8264
|
[1] |
Bearing Cup
|
|
| 18. |
JD8970
|
[1] |
Bearing Cone
|
|
