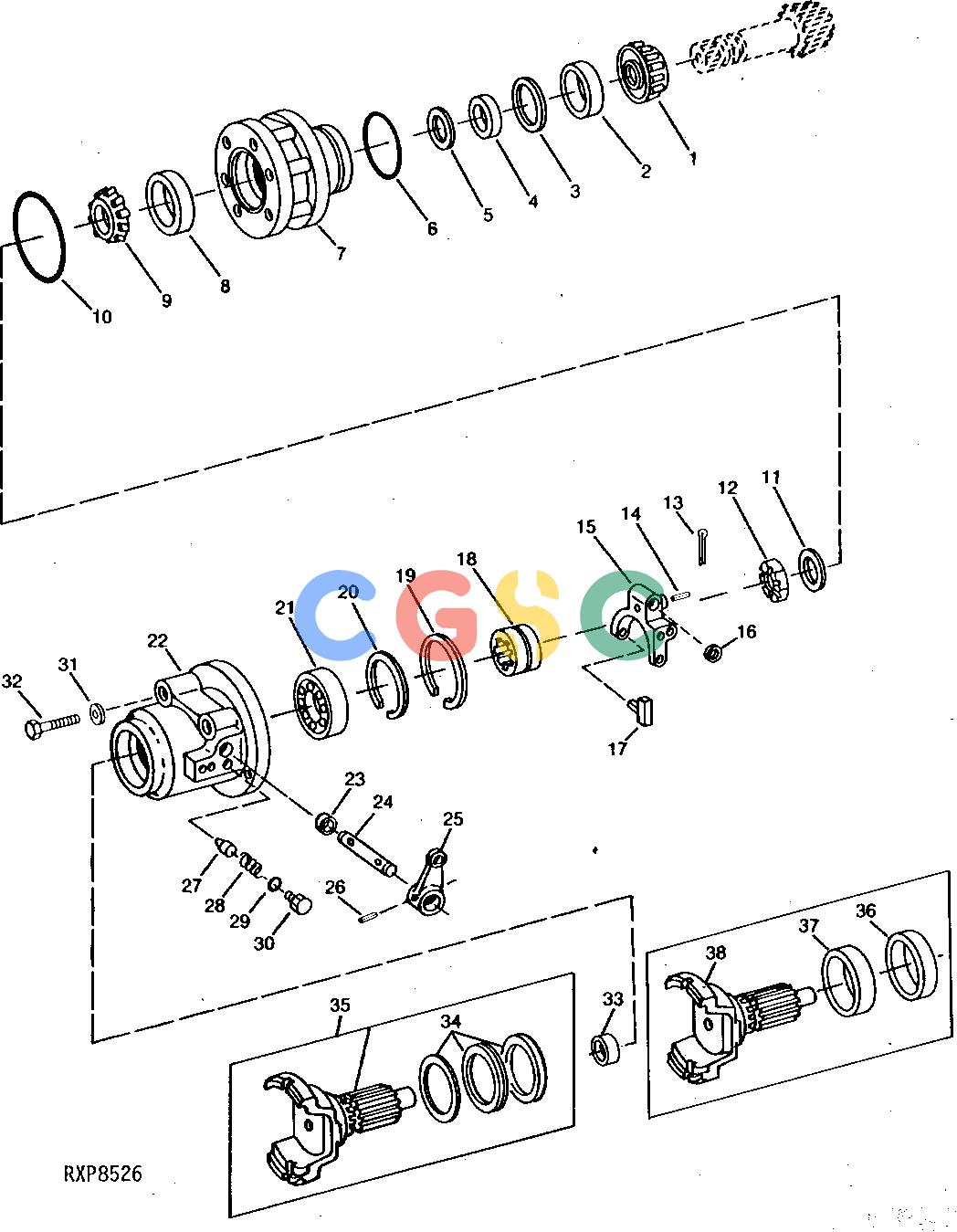

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | JD10377 | [1] | Bearing Cone | (A: AR107915 - INPUT HOUSING PARTS) (SUB RE49486) |
| 2. | JD8280 | [1] | Bearing Cup | (A: AR107915 - INPUT HOUSING PARTS) (SUB RE49486) |
| 3. | R35365 | [AR] | Shim | (A: AR107915 - INPUT HOUSING PARTS) |
| 3. | R35366 | [AR] | Shim | (A: AR107915 - INPUT HOUSING PARTS) |
| 3. | R35367 | [AR] | Shim | (A: AR107915 - INPUT HOUSING PARTS) |
| 4. | R88611 | [1] | Spacer | (A: AR107915 - INPUT HOUSING PARTS) |
| 5. | R88602 | [AR] | Shim | (A: AR107915 - INPUT HOUSING PARTS) |
| 5. | R88603 | [AR] | Shim | (A: AR107915 - INPUT HOUSING PARTS) |
| 5. | R88604 | [AR] | Shim | (A: AR107915 - INPUT HOUSING PARTS) |
| 6. | R27796 | [1] | O-Ring | (A: AR107915 - INPUT HOUSING PARTS) |
| 7. | R88485 | [1] | Bearing Housing W/O Bearing | (A: AR107915 - INPUT HOUSING PARTS) |
| 8. | JD8280 | [1] | Bearing Cup | (A: AR107915 - INPUT HOUSING PARTS) |
| 9. | JD10377 | [1] | Bearing Cone | (A: AR107915 - INPUT HOUSING PARTS) |
| 10. | T80622 | [1] | O-Ring | (B: AR107921 - INPUT YOKE PARTS) |
| 11. | R88608 | [AR] | Washer | (A: AR107915 - INPUT HOUSING PARTS) |
| 11. | R88609 | [AR] | Washer | (A: AR107915 - INPUT HOUSING PARTS) |
| 11. | R88610 | [AR] | Washer | (A: AR107915 - INPUT HOUSING PARTS) |
| 12. | R88607 | [1] | Nut | (A: AR107915 - INPUT HOUSING PARTS) |
| 13. | 11H247 | [1] | Cotter Pin | (A: AR107915 - INPUT HOUSING PARTS) 3/16" X 4" |
| 14. | R119832 | [1] | Spring Pin | (B: AR107921 - INPUT YOKE PARTS) |
| 15. | R88598 | [1] | Yoke | (B: AR107921 - INPUT YOKE PARTS) |
| 16. | R74372 | [2] | Washer | (B: AR107921 - INPUT YOKE PARTS) |
| 17. | T21841 | [2] | Shoe | (B: AR107921 - INPUT YOKE PARTS) |
| 18. | R88601 | [1] | Shift Collar | (B: AR107921 - INPUT YOKE PARTS) |
| 19. | C19243 | [1] | Snap Ring | (B: AR107921 - INPUT YOKE PARTS) |
| 20. | 40M5463 | [1] | Snap Ring | (B: AR107921 - INPUT YOKE PARTS) |
| 21. | JD9320 | [1] | Ball Bearing | (B: AR107921 - INPUT YOKE PARTS) |
| 22. | R88488 | [1] | Housing | (B: AR107921 - INPUT YOKE PARTS) (SUB R88606 AND RE45319) |
| 22. | R88606 | [1] | Housing | (B: AR107921 - INPUT YOKE PARTS) |
| 23. | AT12820 | [1] | Seal | (B: AR107921 - INPUT YOKE PARTS) |
| 24. | R88599 | [1] | Shaft | (B: AR107921 - INPUT YOKE PARTS) |
| 25. | R88600 | [1] | Lever | (B: AR107921 - INPUT YOKE PARTS) |
| 26. | R119832 | [1] | Spring Pin | (B: AR107921 - INPUT YOKE PARTS) |
| 27. | R42697 | [1] | Detent | (B: AR107921 - INPUT YOKE PARTS) |
| 28. | R33277 | [1] | Spring | (B: AR107921 - INPUT YOKE PARTS) |
| 29. | R26448 | [1] | O-Ring | (B: AR107921 - INPUT YOKE PARTS) |
| 30. | R45010 | [1] | Fitting | (B: AR107921 - INPUT YOKE PARTS) |
| 31. | 24M7240 | [6] | Washer | (B: AR107921 - INPUT YOKE PARTS) 13 X 25 X 3 MM (SUB FOR R47172) |
| 32. | 19H1182 | [4] | Cap Screw | (B: AR107921 - INPUT YOKE PARTS) 1/2" X 5" |
| 32. | 19H2211 | [2] | Cap Screw | (B: AR107921 - INPUT YOKE PARTS) 1/2" X 5" |
| 33. | JD8809 | [1] | Needle Bearing | (A: AR107915 - INPUT HOUSING PARTS) |
| 34. | RE45315 | [1] | Seal Kit | (B: AR107921 - INPUT YOKE PARTS) (USE WITH R93529) |
| 34. | R100500 | [1] | Seal | (B: AR107921 - INPUT YOKE PARTS) |
| 35. | RE45319 | [1] | Yoke | (B: AR107921 - INPUT YOKE PARTS) (USE WITH R93529) |
| 35. | R100500 | [1] | Seal | (B: AR107921 - INPUT YOKE PARTS) |
| 36. | AR66751 | [1] | Seal | (B: AR107921 - INPUT YOKE PARTS) (USE WITH R88596) |
| 37. | R88597 | [1] | Sleeve | (B: AR107921 - INPUT YOKE PARTS) (USE WITH R88596) |
| 38. | R88596 | [1] | Universal Joint Yoke | (B: AR107921 - INPUT YOKE PARTS) (SUB RE45319) |
