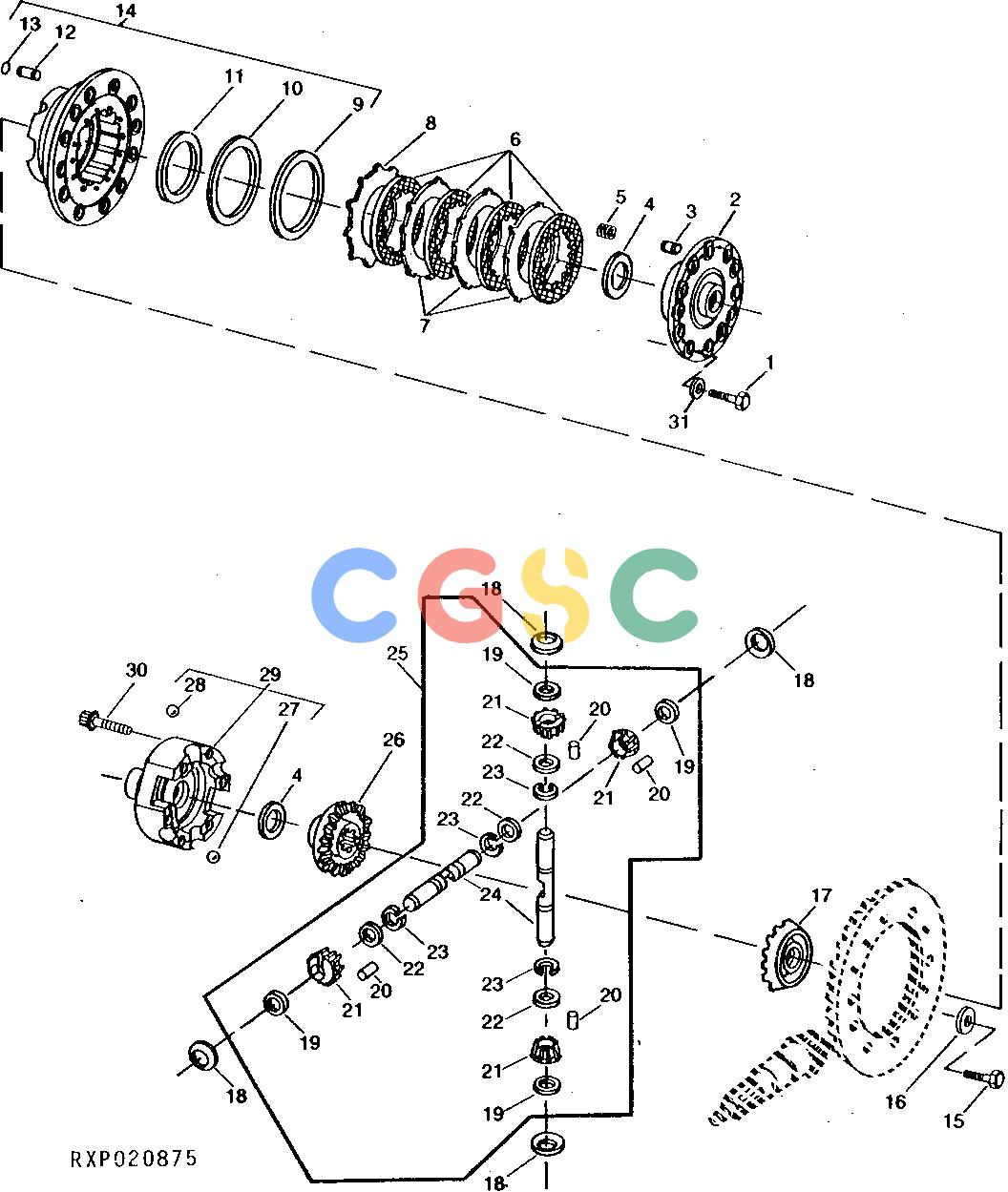

约翰迪尔零件查询1200 - AXLE RE35669, RE38716 DIFFERENTIAL LOCK (OC-3)EPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 972 次

Pos.	Part No	Qty	Parts name	Comments
1.	R116064	[12]	Cap Screw	(SUB FOR R40236 ) (USE WITH R89118)
1.	19H2964	[12]	Cap Screw	7/16" X 1-1/8" (USE WITH R89118)
2.	R84993	[1]	Cover
3.	34H327	[3]	Spring Pin	5/16" X 1"
4.	R93623	[2]	Thrust Washer	(SUB FOR R77145)
5.	R34203	[3]	Spring
6.	RE29428	[4]	Disk	(SUB FOR RE29656 ) (SUB RE53823)
7.	R34858	[3]	Clutch Plate
8.	R34857	[1]	Clutch Plate
9.	R58775	[1]	Piston
10.	R68615	[1]	Washer
11.	R68616	[1]	Washer
12.	R70532	[1]	Bushing	(USE WITH R89118)
13.	R60038	[1]	Packing
14.	RE32603	[1]	Housing	(MARKED R89118 ) (SUB RE53244 AND RE53704)
15.	R85225	[12]	Cap Screw
16.	R85226	[12]	Washer
17.	R59290	[1]	Bevel Gear
18.	R59460	[4]	Thrust Washer
19.	R70112	[4]	Thrust Washer
20.	R70115	[104]	Needle Roller
21.	R134726	[4]	Pinion	(SUB FOR R68170)
22.	R70113	[4]	Thrust Washer
23.	R70114	[4]	Snap Ring
24.	R70111	[2]	Pinion Shaft
25.	AR91483	[1]	Pinion	(SUB (4) R134726, (2) R70111, (4) R70112, (4) R70113, (4) R70114 AND (104) R70115)
26.	R59289	[1]	Bevel Gear
27.	400R	[1]	Ball
28.	H871R	[2]	Ball
29.	RE21029	[1]	Housing	(MARKED R82197 ) (SUB RE53244, RE53704, (12) 19H2563 AND (12) T105740)
30.	R116211	[8]	Screw	(SUB FOR R52718)
31.	T105740	[12]	Washer
...	R51494	[2]	Washer
...	R69532	[2]	Fitting Plug
