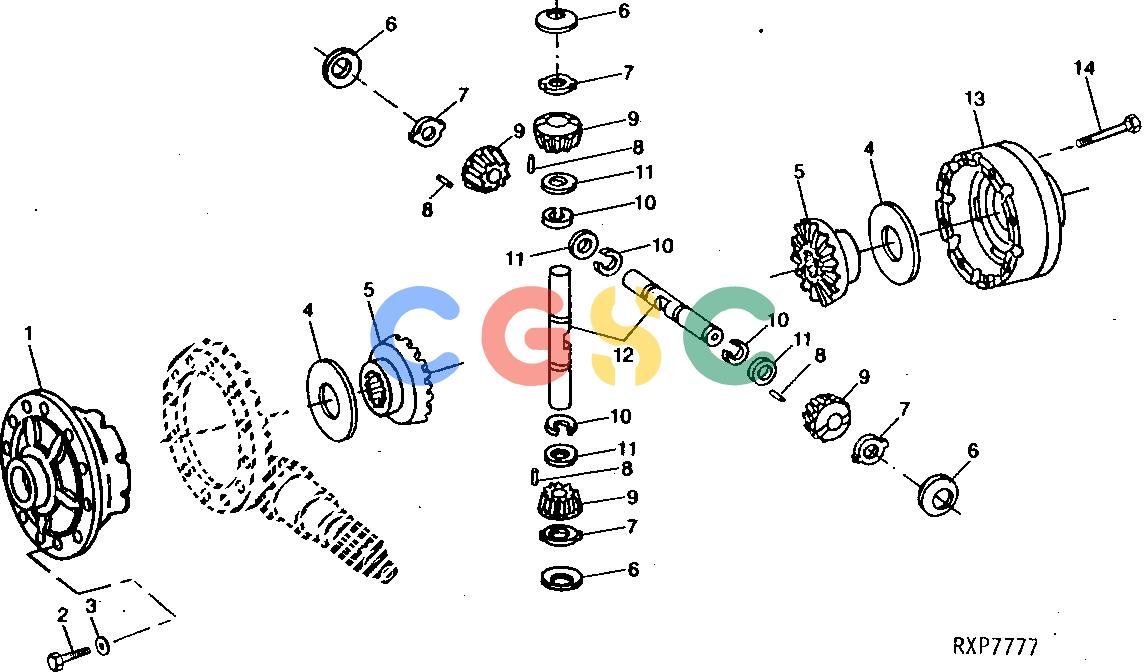

约翰迪尔零件查询1200 - AXLE RE37530 STANDARD DIFFERENTIAL (OC-5)EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
202 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
R73009
|
[1] |
Housing
|
|
| 2. |
R85225
|
[12] |
Cap Screw
|
|
| 3. |
R85226
|
[12] |
Washer
|
|
| 4. |
R93623
|
[2] |
Thrust Washer
|
|
| 5. |
R63477
|
[2] |
Bevel Gear
|
|
| 6. |
R59460
|
[4] |
Thrust Washer
|
|
| 7. |
R70113
|
[4] |
Thrust Washer
|
|
| 8. |
R70115
|
[104] |
Needle Roller
|
|
| 9. |
R134726
|
[4] |
Pinion
|
|
| 10. |
R70114
|
[4] |
Snap Ring
|
|
| 11. |
R70112
|
[4] |
Thrust Washer
|
|
| 12. |
R70111
|
[2] |
Pinion Shaft
|
|
| 13. |
R73008
|
[1] |
Cover
|
|
| 14. |
R115439
|
[8] |
Cap Screw
|
|
| ... |
R51494
|
[4] |
Washer
|
|
| ... |
R69532
|
[4] |
Fitting Plug
|
|
