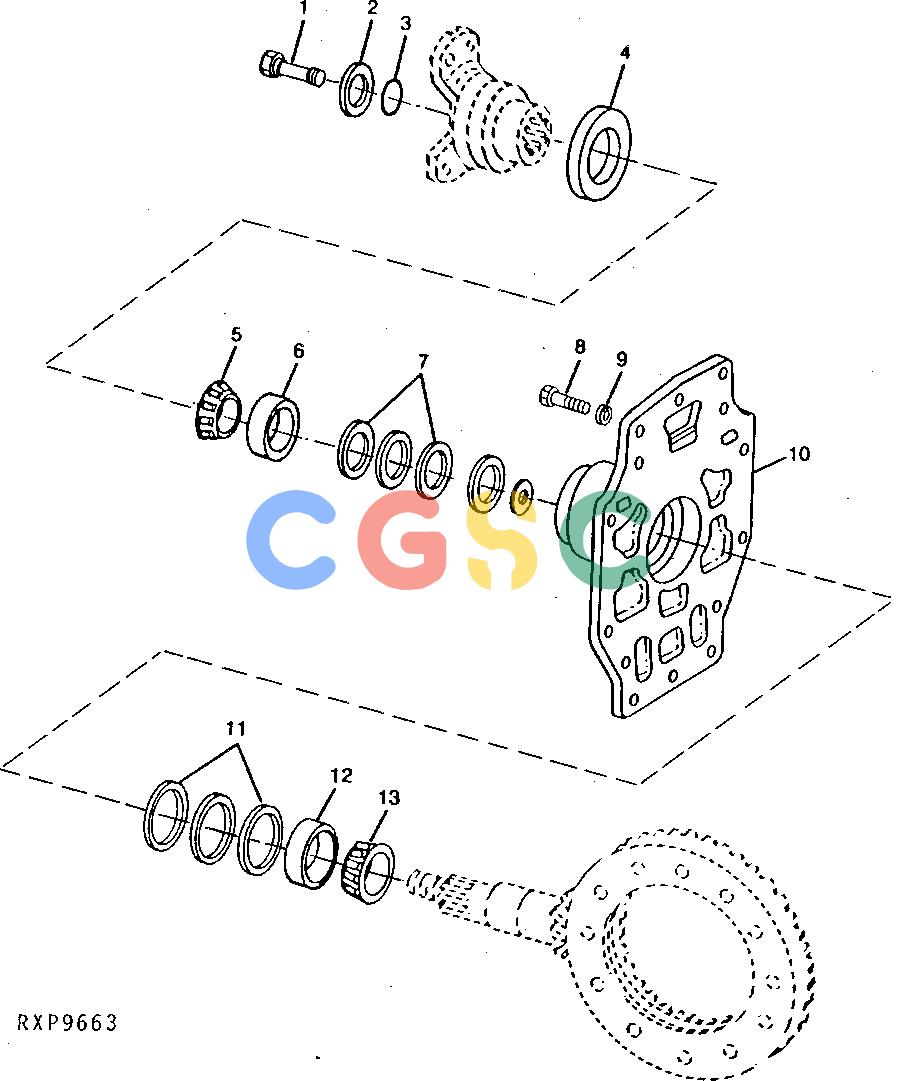

约翰迪尔零件查询1200 - AXLE RE38302,RE42106 INPUT HOUSING (OC-B)EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
791 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
R98309
|
[1] |
Cap Screw
|
|
| 2. |
W23832
|
[1] |
Spacer
|
|
| 3. |
U11017
|
[1] |
O-Ring
|
|
| 4. |
RE40296
|
[1] |
Seal
|
|
| 5. |
JD10369
|
[1] |
Bearing Cone
|
|
| 6. |
JD10370
|
[1] |
Bearing Cup
|
|
| 7. |
R58255
|
[AR] |
Shim
|
|
| 7. |
R58256
|
[AR] |
Shim
|
|
| 7. |
R58257
|
[AR] |
Shim
|
|
| 7. |
R58258
|
[AR] |
Shim
|
|
| 8. |
19M7759
|
[1] |
Cap Screw
|
|
| 8. |
19M7409
|
[5] |
Cap Screw
|
|
| 9. |
R135543
|
[6] |
Washer
|
|
| 10. |
R105504
|
[1] |
Cover
|
|
| 11. |
R84606
|
[AR] |
Shim
|
|
| 11. |
R84607
|
[AR] |
Shim
|
|
| 11. |
R84608
|
[AR] |
Shim
|
|
| 12. |
JD8941
|
[1] |
Bearing Cone
|
|
| 13. |
JD8255
|
[1] |
Bearing Cup
|
|
