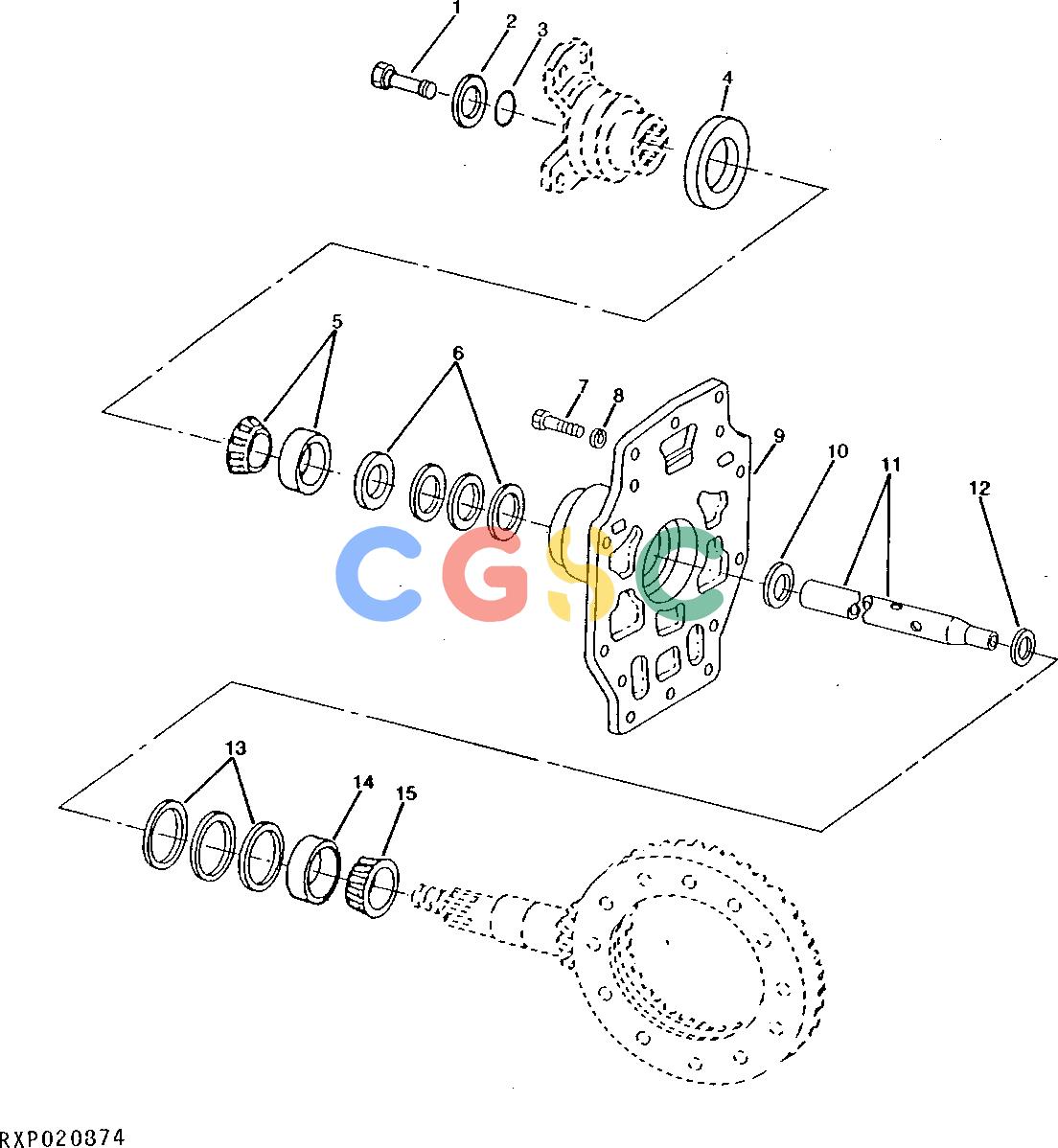

约翰迪尔零件查询1200 - AXLE RE50814 INPUT HOUSING (OC-A)EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
142 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
R98309
|
[1] |
Cap Screw
|
|
| 2. |
W23832
|
[1] |
Spacer
|
|
| 3. |
U11017
|
[1] |
O-Ring
|
|
| 4. |
RE40296
|
[1] |
Seal
|
|
| 5. |
JD10371
|
[1] |
Bearing Cone
|
|
| 6. |
JD7446
|
[1] |
Bearing Cup
|
|
| 7. |
R58255
|
[AR] |
Shim
|
|
| 7. |
R58256
|
[AR] |
Shim
|
|
| 7. |
R58257
|
[AR] |
Shim
|
|
| 7. |
R58258
|
[AR] |
Shim
|
|
| 8. |
19M7759
|
[1] |
Cap Screw
|
|
| 8. |
19M7409
|
[5] |
Cap Screw
|
|
| 9. |
R135543
|
[6] |
Washer
|
|
| 10. |
R105503
|
[1] |
Cover
|
|
| 11. |
R29463
|
[1] |
O-Ring
|
|
| 12. |
R114064
|
[1] |
Oil Tube
|
|
| 13. |
R56751
|
[1] |
O-Ring
|
|
| 14. |
R81362
|
[AR] |
Shim
|
|
| 14. |
R81363
|
[AR] |
Shim
|
|
| 14. |
R81364
|
[AR] |
Shim
|
|
| 15. |
JD10313
|
[1] |
Bearing Cone
|
|
| 16. |
JD10372
|
[1] |
Bearing Cup
|
|
| ... |
TY16021
|
[1] |
Sealant
|
|
