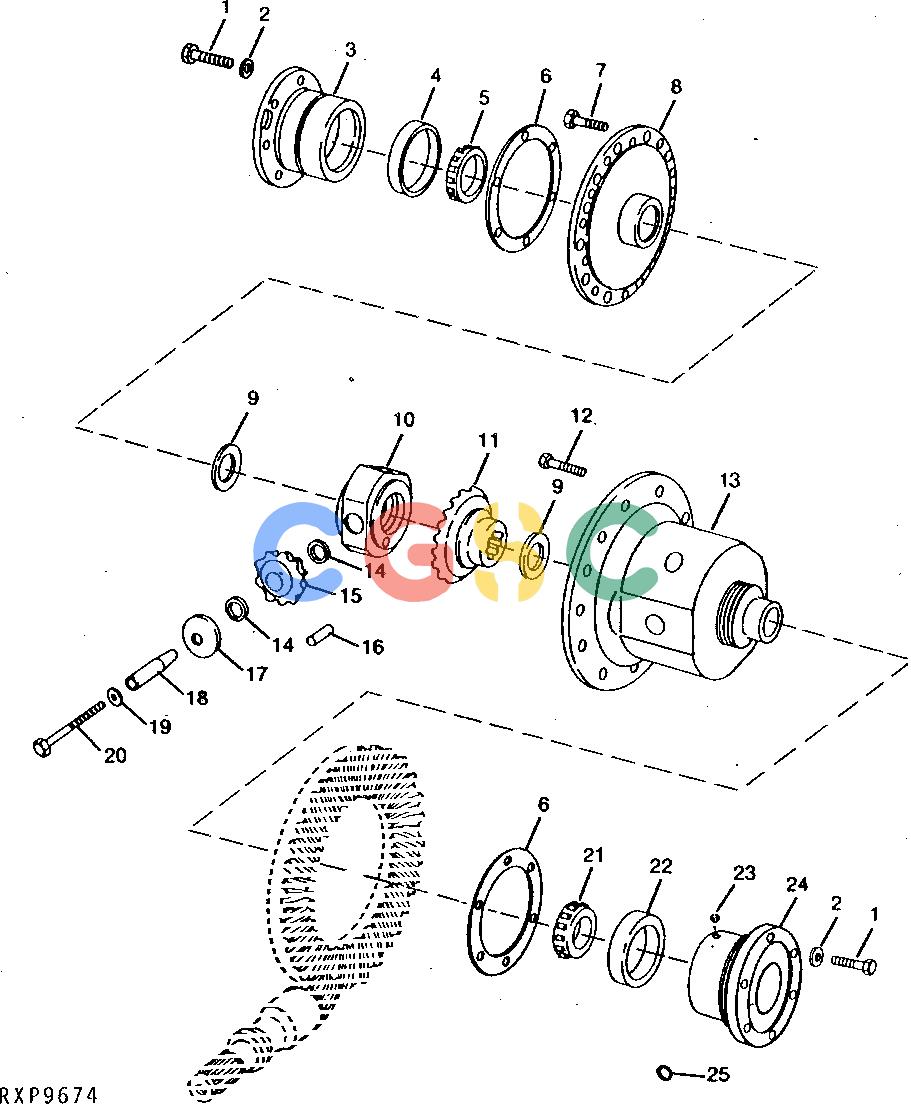

约翰迪尔零件查询1200 - AXLE RE44444 STANDARD DIFFERENTIAL (OC-B)EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
1016 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
R112887
|
[6] |
Bolt
|
|
| 2. |
R47172
|
[6] |
Washer
|
|
| 3. |
R83644
|
[1] |
Bearing Housing W/O Bearing
|
|
| 4. |
JD8298
|
[1] |
Bearing Cup
|
|
| 5. |
JD8962
|
[1] |
Bearing Cone
|
|
| 6. |
R35501
|
[AR] |
Shim
|
|
| 6. |
R35502
|
[AR] |
Shim
|
|
| 6. |
R35503
|
[AR] |
Shim
|
|
| 7. |
R121199
|
[6] |
Screw
|
|
| 8. |
R94631
|
[1] |
Cover
|
|
| 9. |
R99466
|
[2] |
Thrust Washer
|
|
| 10. |
R93019
|
[1] |
Hub
|
|
| 11. |
R109489
|
[2] |
Bevel Gear
|
|
| 12. |
R43368
|
[6] |
Cap Screw
|
|
| 13. |
AR88775
|
[1] |
Housing
|
|
| 14. |
R68167
|
[6] |
Washer
|
|
| 15. |
R67784
|
[1] |
Pinion
|
|
| 16. |
R55081
|
[54] |
Needle Roller
|
|
| 17. |
R68166
|
[3] |
Thrust Washer
|
|
| 18. |
R67782
|
[3] |
Shaft
|
|
| 19. |
R57696
|
[3] |
Washer
|
|
| 20. |
R89837
|
[3] |
Cap Screw
|
|
| 21. |
JD9019
|
[1] |
Bearing Cone
|
|
| 22. |
JD8214
|
[1] |
Bearing Cup
|
|
| 23. |
400R
|
[2] |
Ball
|
|
| 24. |
RE42757
|
[1] |
Bearing Housing W/O Bearing
|
|
| 25. |
R26448
|
[2] |
O-Ring
|
|
