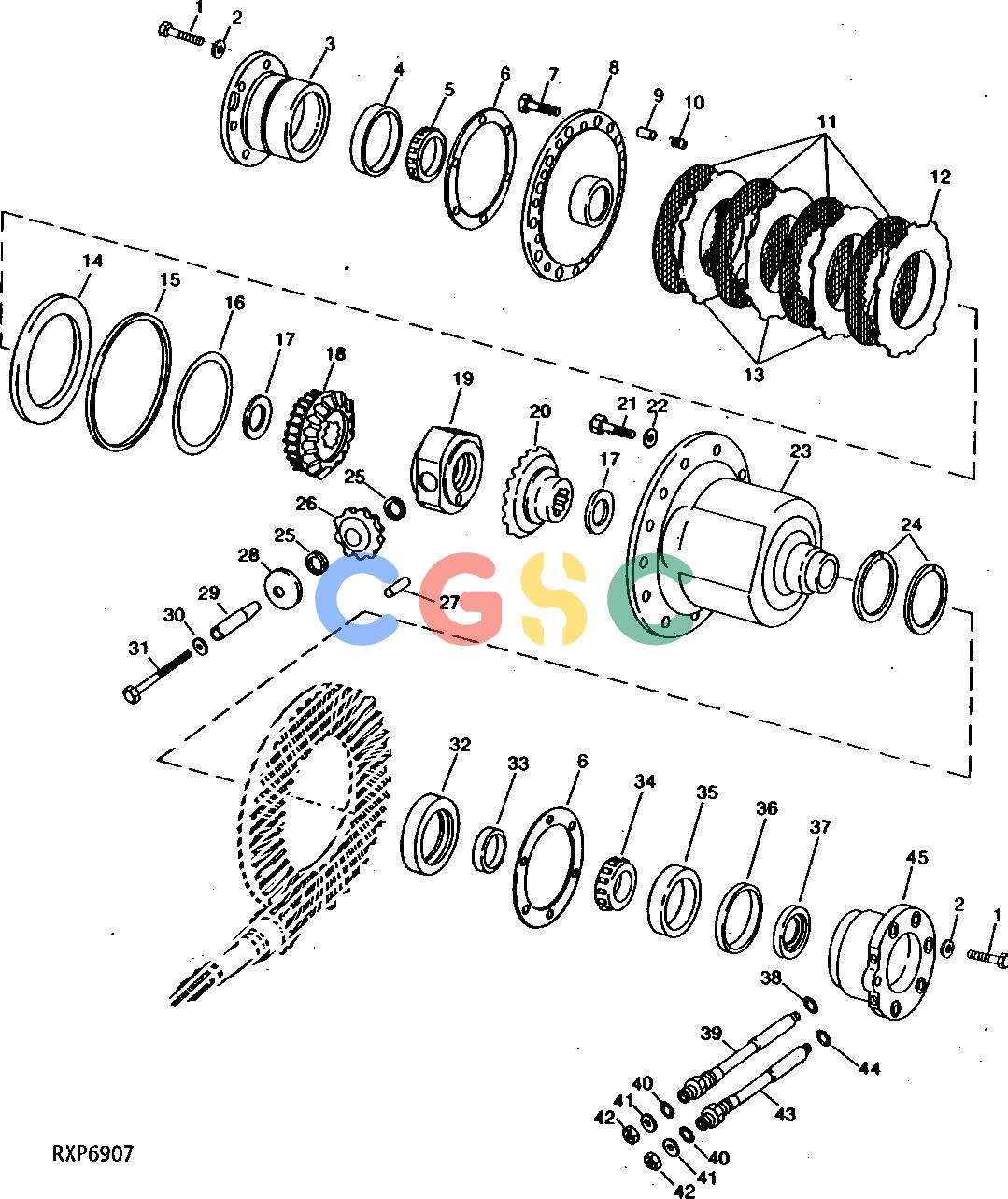

约翰迪尔零件查询1200 - AXLE RE37957 DIFFERENTIAL LOCK (OC-3)EPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 181 次

Pos.	Part No	Qty	Parts name	Comments
1.	R112887	[12]	Bolt	(SUB FOR R86886)
2.	R47172	[12]	Washer
3.	R83644	[1]	Bearing Housing W/O Bearing
4.	JD8298	[1]	Bearing Cup
5.	JD8962	[1]	Bearing Cone
6.	R35501	[AR]	Shim
6.	R35502	[AR]	Shim
6.	R35503	[AR]	Shim
7.	R112884	[12]	Cap Screw	(SUB FOR R43369 ) (SUB R121199)
8.	R94631	[1]	Cover
9.	34H311	[3]	Spring Pin	1/4" X 7/8"
10.	R41770	[3]	Spring
11.	RE29429	[4]	Disk
12.	R43340	[1]	Plate
13.	R43343	[3]	Clutch Plate
14.	R67045	[1]	Piston
15.	R67046	[1]	Washer
16.	R67047	[1]	Washer
17.	R99466	[2]	Thrust Washer	(SUB FOR R72586)
18.	R90869	[1]	Bevel Gear	(SUB R112169)
18.	R112169	[1]	Bevel Gear
19.	R93019	[1]	Hub	(SUB (3) R133584, R134268 AND (3) R131865)
20.	R64257	[1]	Bevel Gear	(SUB R109489)
20.	R109489	[1]	Bevel Gear
21.	19H3718	[12]	Cap Screw	5/8" X 1-3/8"
22.	R85226	[12]	Washer
23.	RE32003	[1]	Housing	(MARKED R93201)
24.	R93202	[2]	Ring
25.	R68167	[6]	Washer
26.	R67784	[3]	Pinion
27.	R55081	[54]	Needle Roller
28.	R68166	[3]	Thrust Washer
29.	R67782	[3]	Shaft
30.	R57696	[3]	Washer
31.	R89837	[3]	Cap Screw
32.	RE32979	[1]	Seal
33.	R93200	[1]	Sleeve
34.	JD9019	[1]	Bearing Cone
35.	JD8214	[1]	Bearing Cup
36.	R93199	[1]	Sleeve
37.	RE42667	[1]	Seal	(SUB FOR AR82993)
38.	R28782	[1]	O-Ring
39.	R93196	[1]	Fitting
40.	R93170	[2]	Packing
41.	24H1139	[2]	Washer	11/16" X 1-1/4" X 0.105"
42.	14H904	[2]	Nut	3/4"
43.	R93197	[1]	Fitting
44.	R26286	[1]	O-Ring
45.	RE33994	[1]	Bearing Housing W/O Bearing	(MARKED R93198)
...	R68437	[4]	Plug
