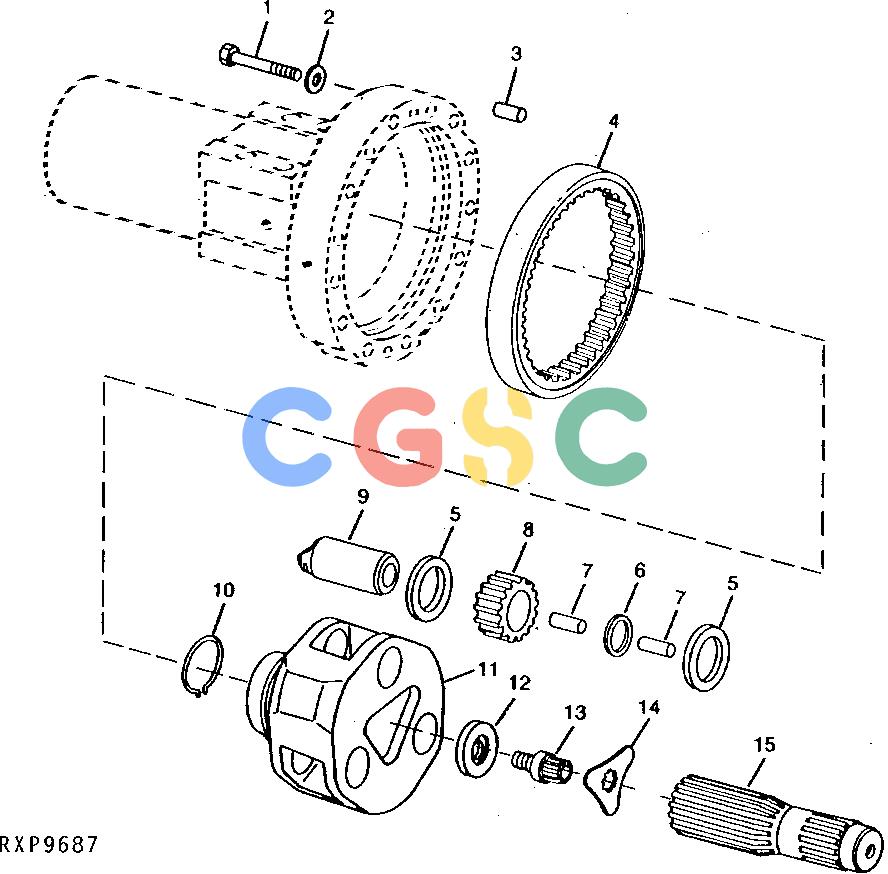

约翰迪尔零件查询1200 - AXLE RE38300 FINAL DRIVE (OC-B) (AXLE SERIAL NO. -026768)EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
174 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
19M8486
|
[14] |
Cap Screw
|
|
| 2. |
R135543
|
[14] |
Washer
|
|
| 3. |
R54380
|
[2] |
Dowel Pin
|
|
| 4. |
R83651
|
[1] |
Gear
|
|
| 5. |
R112080
|
[3] |
Thrust Washer
|
|
| 6. |
R83788
|
[1] |
Washer
|
|
| 7. |
R63575
|
[34] |
Needle Roller
|
|
| 8. |
R121728
|
[1] |
Shaft
|
|
| 9. |
R83649
|
[1] |
Shaft
|
|
| 10. |
R94393
|
[1] |
Ring
|
|
| 11. |
R120962
|
[1] |
Planet Pinion Carrier
|
|
| 12. |
R86675
|
[1] |
Spacer
|
|
| 13. |
R81162
|
[2] |
Bolt
|
|
| 14. |
R69549
|
[1] |
Plate
|
|
| 15. |
R112837
|
[1] |
Shaft
|
|
