约翰迪尔零件查询1200 - AXLE RE46453 FINAL DRIVE (AXLE SERIAL NO.026768- )EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
560 次

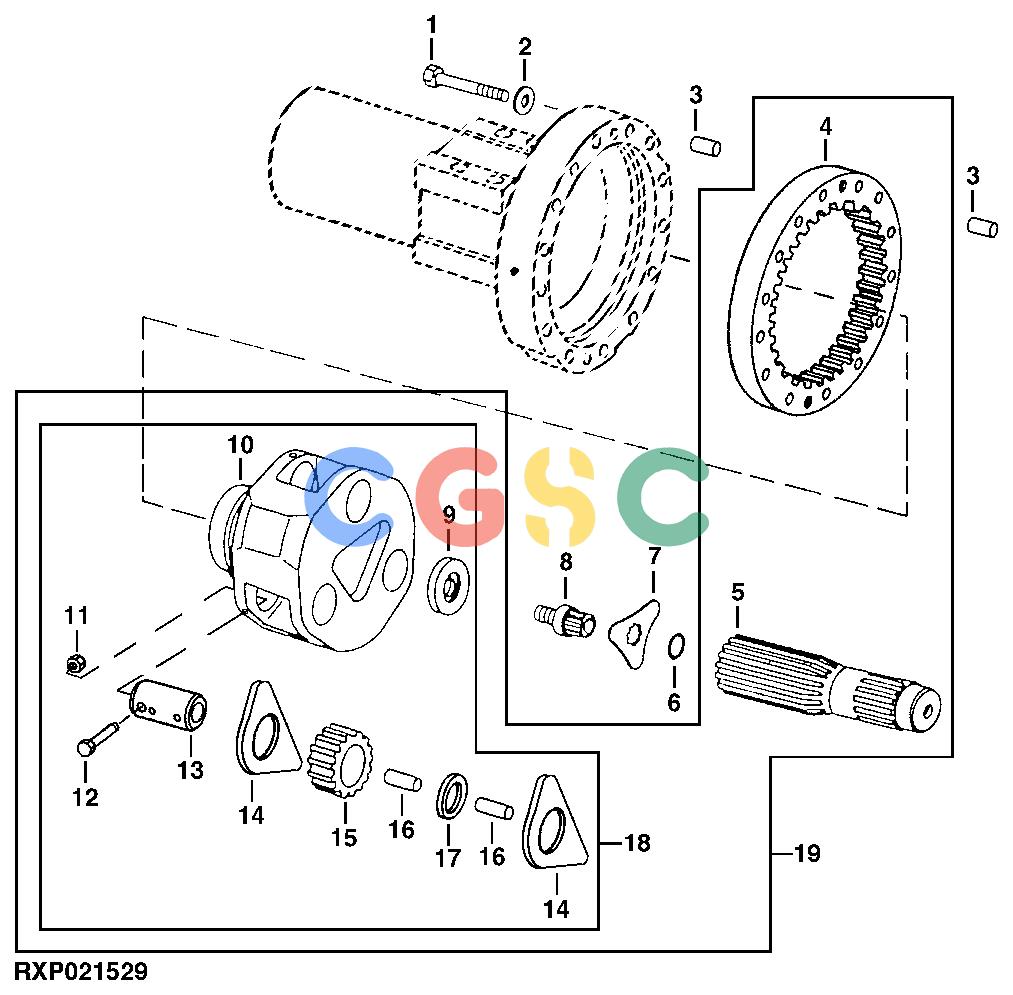

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
19M8486
|
[14] |
Cap Screw
|
|
| 1. |
19M8190
|
[14] |
Cap Screw
|
|
| 2. |
R135543
|
[14] |
Washer
|
|
| 3. |
R54380
|
[2] |
Dowel Pin
|
|
| 4. |
R135967
|
[1] |
Ring Gear
|
|
| 5. |
R134669
|
[1] |
Pinion
|
|
| 6. |
F3171R
|
[1] |
O-Ring
|
|
| 7. |
R69549
|
[2] |
Plate
|
|
| 8. |
R81162
|
[1] |
Bolt
|
|
| 10. |
R115413
|
[1] |
Planet Pinion Carrier
|
|
| 11. |
14M7452
|
[3] |
Lock Nut
|
|
| 12. |
R125362
|
[3] |
Bolt
|
|
| 13. |
R125070
|
[3] |
Pinion Shaft
|
|
| 14. |
R121239
|
[6] |
Thrust Washer
|
|
| 15. |
R124630
|
[3] |
Planet Pinion
|
|
| 16. |
R63575
|
[204] |
Needle Roller
|
|
| 17. |
R107242
|
[3] |
Spacer
|
|
| 18. |
RE49256
|
[1] |
Planet Pinion Carrier
|
|
| 19. |
RE63683
|
[1] |
Kit
|
|
