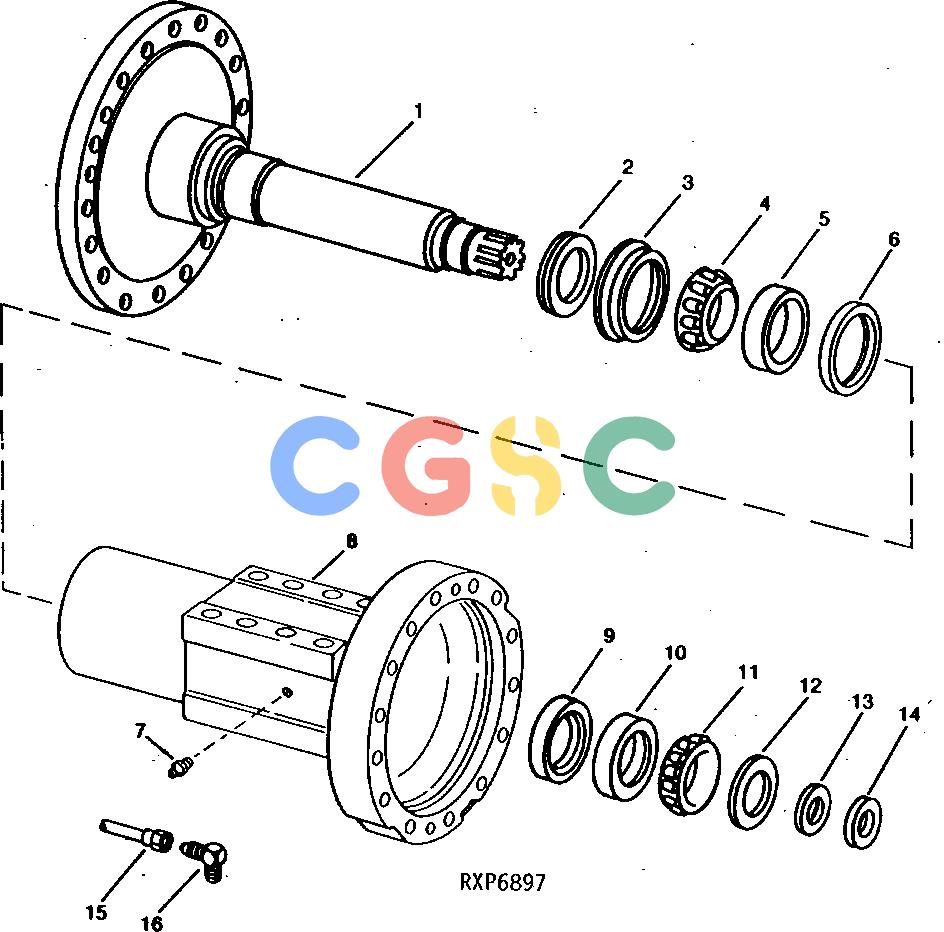

约翰迪尔零件查询1200 - AXLE RE38436,RE38437 Axle Housing and ShaftEPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
572 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
R89835
|
[1] |
Spindle
|
|
| 2. |
RE33442
|
[1] |
Seal
|
|
| 3. |
R106854
|
[1] |
Oil Cup
|
|
| 4. |
JD9033
|
[1] |
Bearing Cone
|
|
| 5. |
JD8297
|
[1] |
Bearing Cup
|
|
| 6. |
R90874
|
[1] |
Seal
|
|
| 7. |
JD7759
|
[1] |
Lubrication Fitting
|
|
| 8. |
YZ120579
|
[1] |
Housing
|
|
| 8. |
YZ120580
|
[1] |
Housing
|
|
| 9. |
AR78412
|
[1] |
Seal
|
|
| 10. |
JD9127
|
[1] |
Bearing Cup
|
|
| 11. |
JD9069
|
[1] |
Bearing Cone
|
|
| 12. |
R63237
|
[1] |
Shim
|
|
| 13. |
R63247
|
[AR] |
Shim
|
|
| 13. |
R63248
|
[AR] |
Shim
|
|
| 13. |
R63246
|
[AR] |
Shim
|
|
| 14. |
R33330
|
[1] |
Washer
|
|
| 15. |
RE30367
|
[1] |
Oil Line
|
|
| 16. |
H80936
|
[1] |
Elbow Fitting
|
|
| ... |
UN7189
|
[1] |
Sealant
|
|
| ... |
T43514
|
[1] |
Gasket
|
|
