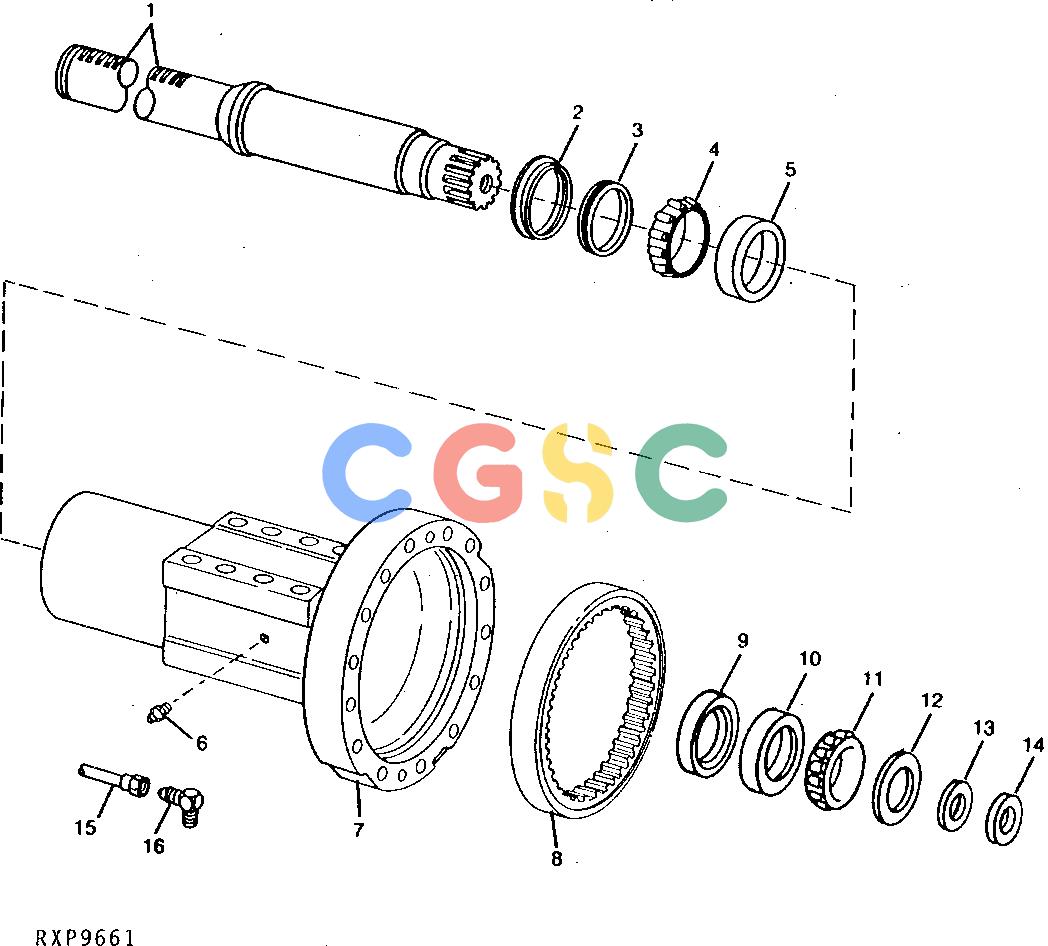

约翰迪尔零件查询1200 - AXLE RE38242 AXLE HOUSING AND SHAFT (OC-A)EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
331 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
R61295
|
[1] |
Shaft
|
|
| 2. |
R52015
|
[1] |
Round Retainer
|
|
| 3. |
R58861
|
[1] |
Spacer
|
|
| 4. |
JD10042
|
[1] |
Bearing Cone
|
|
| 5. |
JD10043
|
[1] |
Bearing Cup
|
|
| 6. |
JD7759
|
[1] |
Lubrication Fitting
|
|
| 7. |
RE36997
|
[1] |
Housing
|
|
| 8. |
R61426
|
[1] |
Gear
|
|
| 9. |
AR75527
|
[1] |
Seal
|
|
| 10. |
JD8248
|
[1] |
Bearing Cup
|
|
| 11. |
JD9018
|
[1] |
Bearing Cone
|
|
| 12. |
R52389
|
[1] |
Shim
|
|
| 13. |
R61461
|
[AR] |
Shim
|
|
| 13. |
R59439
|
[AR] |
Shim
|
|
| 13. |
R59440
|
[AR] |
Shim
|
|
| 14. |
F2380R
|
[1] |
Washer
|
|
| 15. |
RE27824
|
[1] |
Oil Line
|
|
| 16. |
H80936
|
[1] |
Elbow Fitting
|
|
| ... |
R88185
|
[1] |
Seal
|
|
