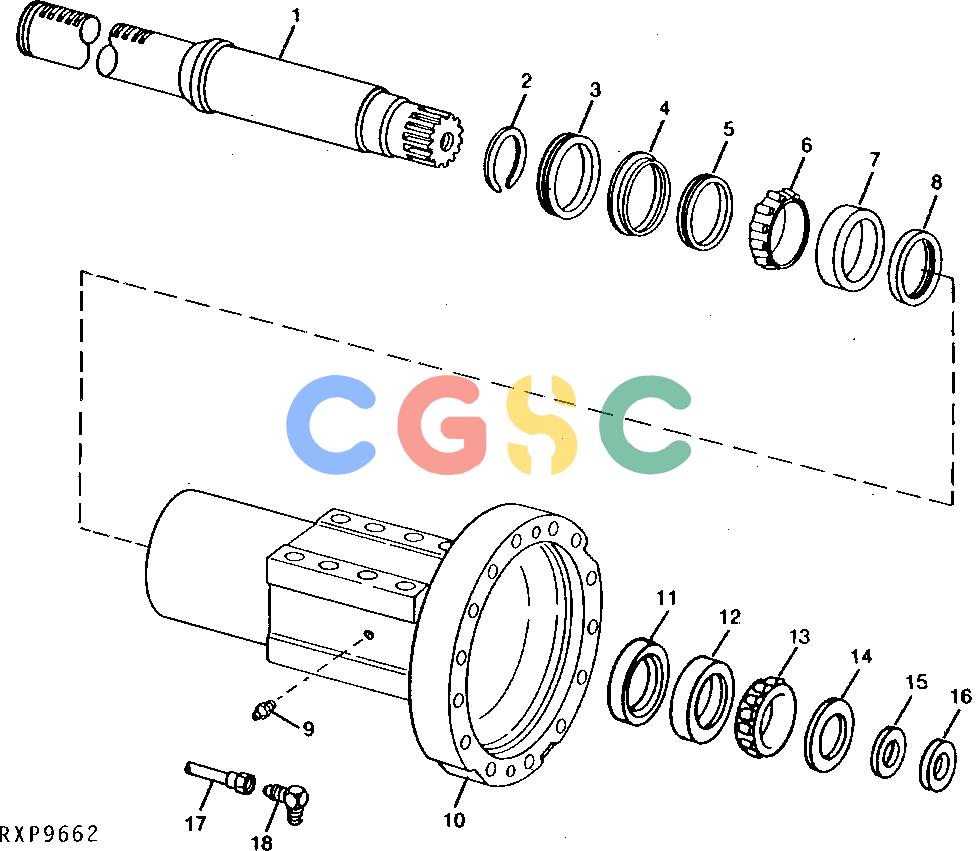

约翰迪尔零件查询1200 - AXLE RE38243 AXLE HOUSING AND SHAFT(OC-B)EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
742 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
R83652
|
[1] |
Shaft
|
|
| 2. |
R83786
|
[1] |
Snap Ring
|
|
| 3. |
RE33442
|
[1] |
Seal
|
|
| 4. |
R106854
|
[1] |
Oil Cup
|
|
| 5. |
R83653
|
[1] |
Spacer
|
|
| 6. |
RE23513
|
[1] |
Bearing Cone
|
|
| 7. |
JD8297
|
[1] |
Bearing Cup
|
|
| 8. |
R88161
|
[1] |
Seal
|
|
| 9. |
JD7759
|
[1] |
Lubrication Fitting
|
|
| 10. |
R98313
|
[1] |
Housing
|
|
| 11. |
AR78412
|
[1] |
Seal
|
|
| 12. |
JD9127
|
[1] |
Bearing Cup
|
|
| 13. |
JD9069
|
[1] |
Bearing Cone
|
|
| 14. |
R63237
|
[1] |
Shim
|
|
| 15. |
R61461
|
[AR] |
Shim
|
|
| 15. |
R59439
|
[AR] |
Shim
|
|
| 15. |
R59440
|
[AR] |
Shim
|
|
| 15. |
R79989
|
[AR] |
Shim
|
|
| 16. |
F2380R
|
[1] |
Washer
|
|
| 17. |
RE27780
|
[1] |
Oil Line
|
|
| 18. |
H80936
|
[1] |
Elbow Fitting
|
|
| ... |
T43514
|
[1] |
Gasket
|
|
| ... |
UN7189
|
[1] |
Sealant
|
|
