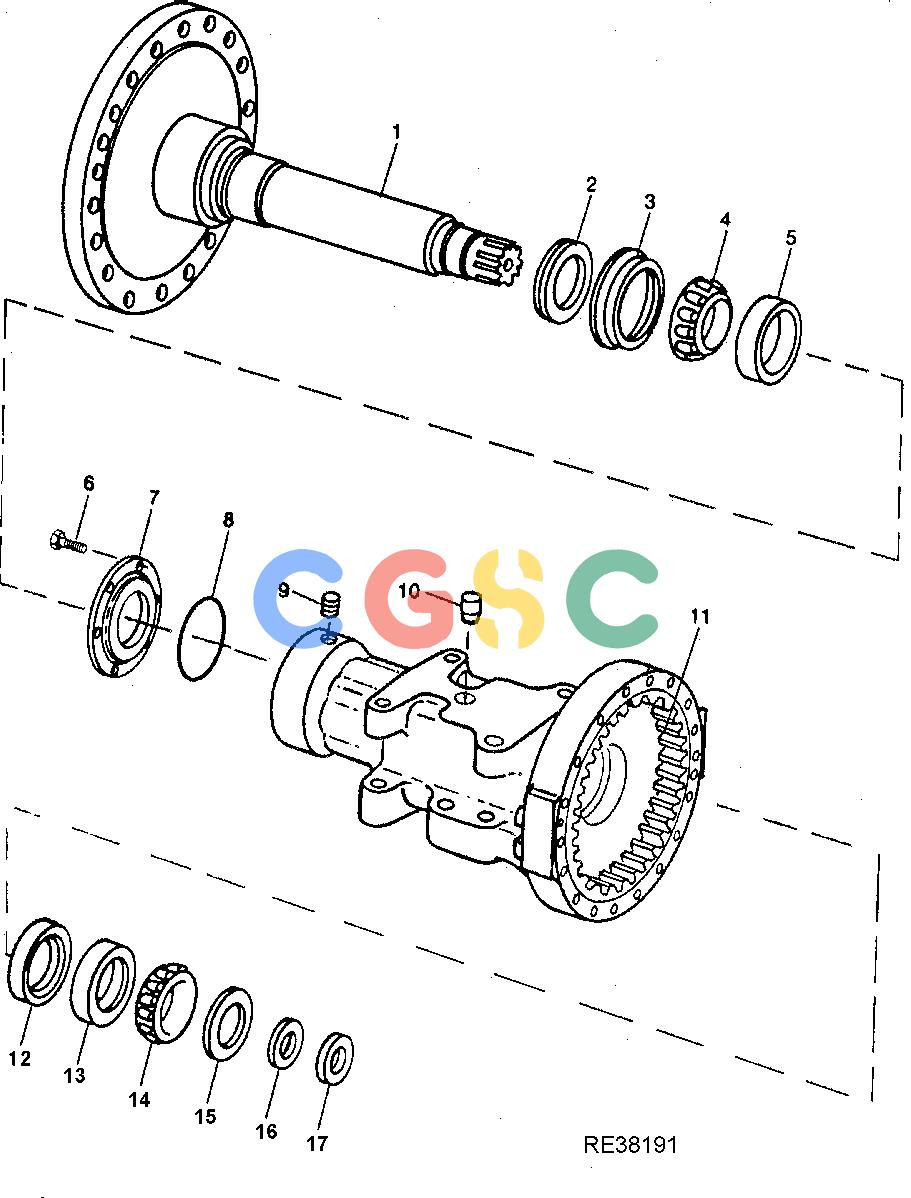

约翰迪尔零件查询1200 - AXLE RE38191 AXLE HOUSING AND SHAFT (OC-4)EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
728 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
R81571
|
[1] |
Spindle
|
|
| 2. |
RE33442
|
[1] |
Seal
|
|
| 3. |
R106854
|
[1] |
Oil Cup
|
|
| 4. |
JD10307
|
[1] |
Bearing Cone
|
|
| 5. |
JD10308
|
[1] |
Bearing Cup
|
|
| 6. |
19H2552
|
[6] |
Cap Screw
|
|
| 7. |
R81572
|
[1] |
Housing
|
|
| 8. |
T39414
|
[1] |
O-Ring
|
|
| 9. |
15H559
|
[1] |
Pipe Plug
|
|
| 12. |
AR78412
|
[1] |
Seal
|
|
| 13. |
JD9127
|
[1] |
Bearing Cup
|
|
| 14. |
JD9069
|
[1] |
Bearing Cone
|
|
| 15. |
R63237
|
[1] |
Shim
|
|
| 16. |
R63246
|
[2] |
Shim
|
|
| 16. |
R63247
|
[4] |
Shim
|
|
| 16. |
R63248
|
[4] |
Shim
|
|
| 17. |
R33330
|
[1] |
Washer
|
|
