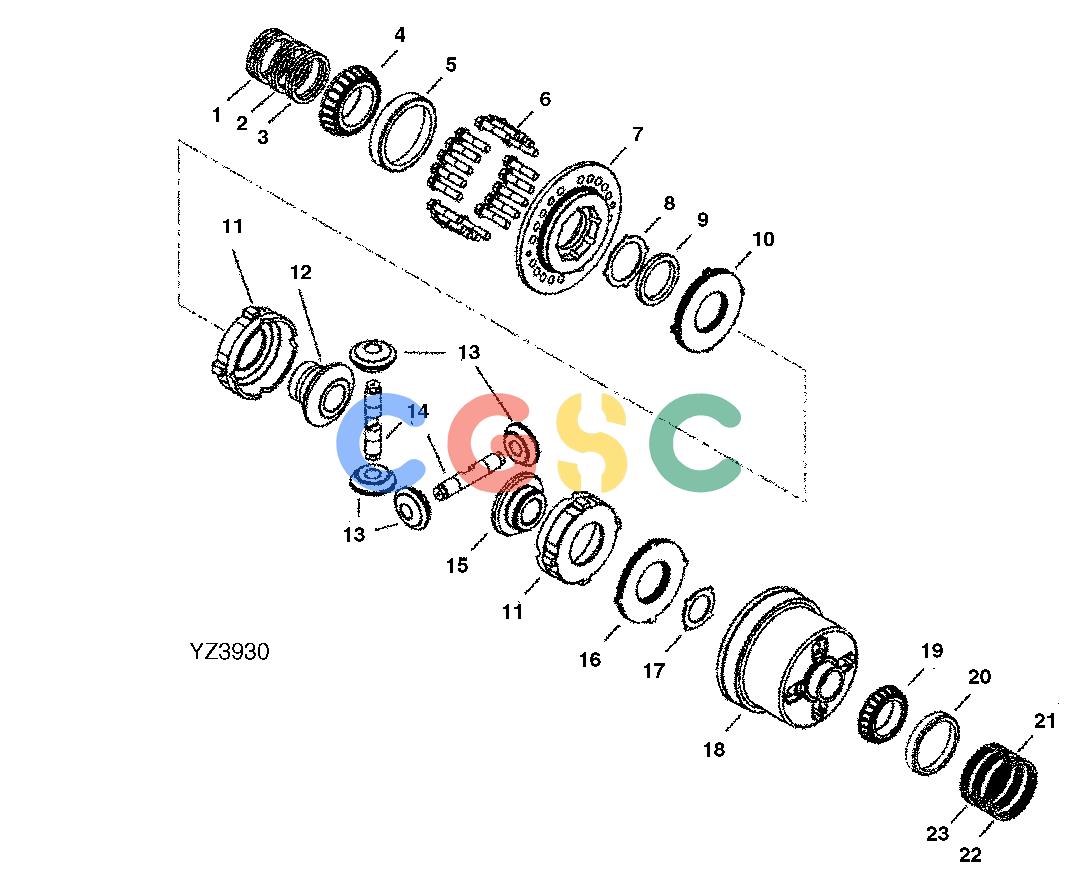

约翰迪尔零件查询RE160299 - AXLE LIMITED SLIP DIFFERENTIAL, FRONT, 1400 SERIES (RE68131)EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
473 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
R134719
|
[4] |
Shim
|
|
| 2. |
R134718
|
[3] |
Shim
|
|
| 3. |
R134717
|
[3] |
Shim
|
|
| 4. |
JD10127
|
[1] |
Bearing Cone
|
|
| 5. |
JD8254
|
[1] |
Bearing Cup
|
|
| 6. |
R134183
|
[20] |
Cap Screw
|
|
| 7. |
R152913
|
[1] |
Cover
|
|
| 8. |
R152928
|
[1] |
Washer
|
|
| 9. |
R152927
|
[1] |
Spacer
|
|
| 10. |
RE152929
|
[2] |
Plate
|
|
| 11. |
R152916
|
[2] |
Housing
|
|
| 12. |
R152923
|
[1] |
Gear
|
|
| 13. |
R152924
|
[4] |
Pinion
|
|
| 14. |
R152925
|
[2] |
Shaft
|
|
| 15. |
R152922
|
[1] |
Gear
|
|
| 16. |
RE152930
|
[2] |
Plate
|
|
| 17. |
R152926
|
[1] |
Washer
|
|
| 18. |
R152911
|
[1] |
Housing
|
|
| 19. |
JD8167
|
[1] |
Bearing Cone
|
|
| 20. |
JD8214
|
[1] |
Bearing Cup
|
|
| 21. |
R135532
|
[3] |
Shim
|
|
| 22. |
R135534
|
[3] |
Shim
|
|
| 23. |
R135533
|
[3] |
Shim
|
|
