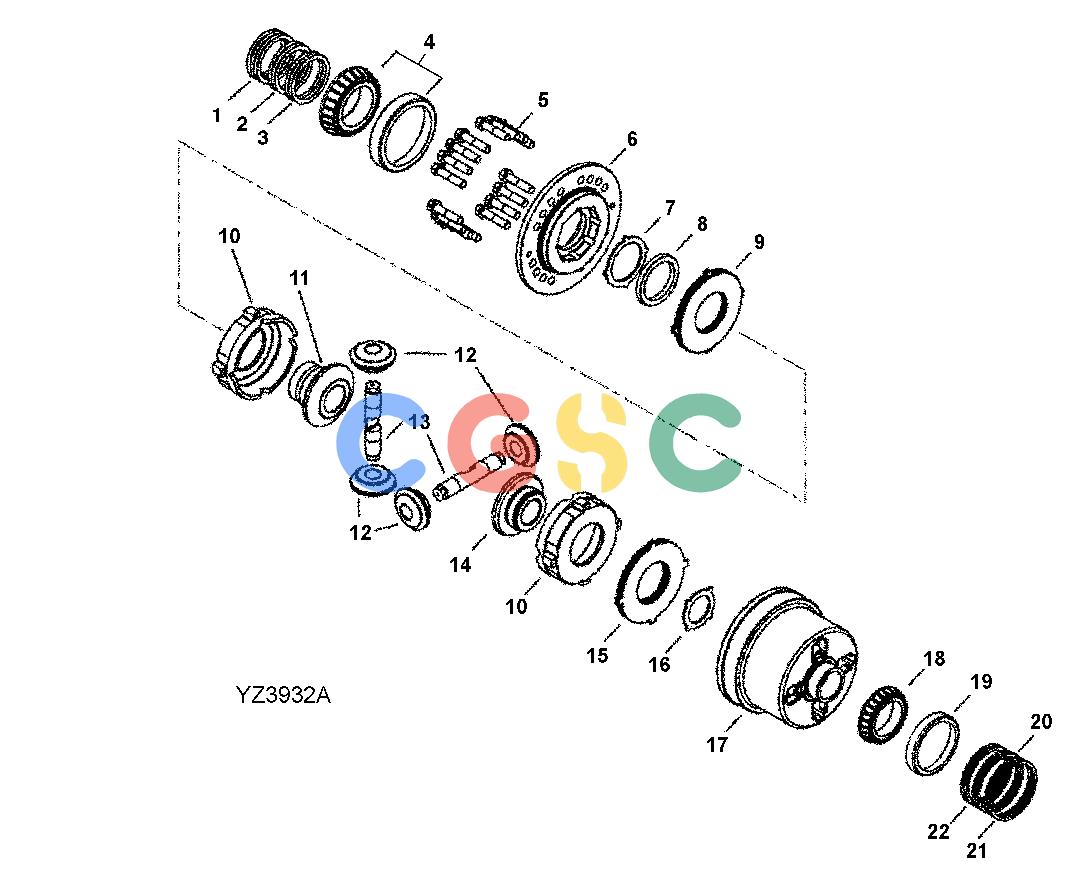

约翰迪尔零件查询RE160299 - AXLE Limited Slip Differential, RearEPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
1008 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
R133113
|
[4] |
Shim
|
|
| 2. |
R133114
|
[3] |
Shim
|
|
| 3. |
R133115
|
[3] |
Shim
|
|
| 4. |
RE61191
|
[1] |
Tapered Roller Bearing
|
|
| 5. |
R134183
|
[16] |
Cap Screw
|
|
| 6. |
R151705
|
[1] |
Cover
|
|
| 7. |
R151713
|
[1] |
Washer
|
|
| 8. |
R151712
|
[1] |
Spacer
|
|
| 9. |
RE151714
|
[1] |
Plate
|
|
| 10. |
R151706
|
[2] |
Housing
|
|
| 11. |
R151708
|
[1] |
Gear
|
|
| 12. |
R151709
|
[4] |
Pinion
|
|
| 13. |
R151710
|
[2] |
Shaft
|
|
| 14. |
R151707
|
[1] |
Gear
|
|
| 15. |
RE151715
|
[1] |
Plate
|
|
| 16. |
R151711
|
[1] |
Washer
|
|
| 17. |
R151704
|
[1] |
Housing
|
|
| 18. |
JD8159
|
[1] |
Bearing Cone
|
|
| 19. |
JD8210
|
[1] |
Bearing Cup
|
|
| 20. |
T34354
|
[3] |
Shim
|
|
| 21. |
T34355
|
[3] |
Shim
|
|
| 22. |
T34356
|
[3] |
Shim
|
|
