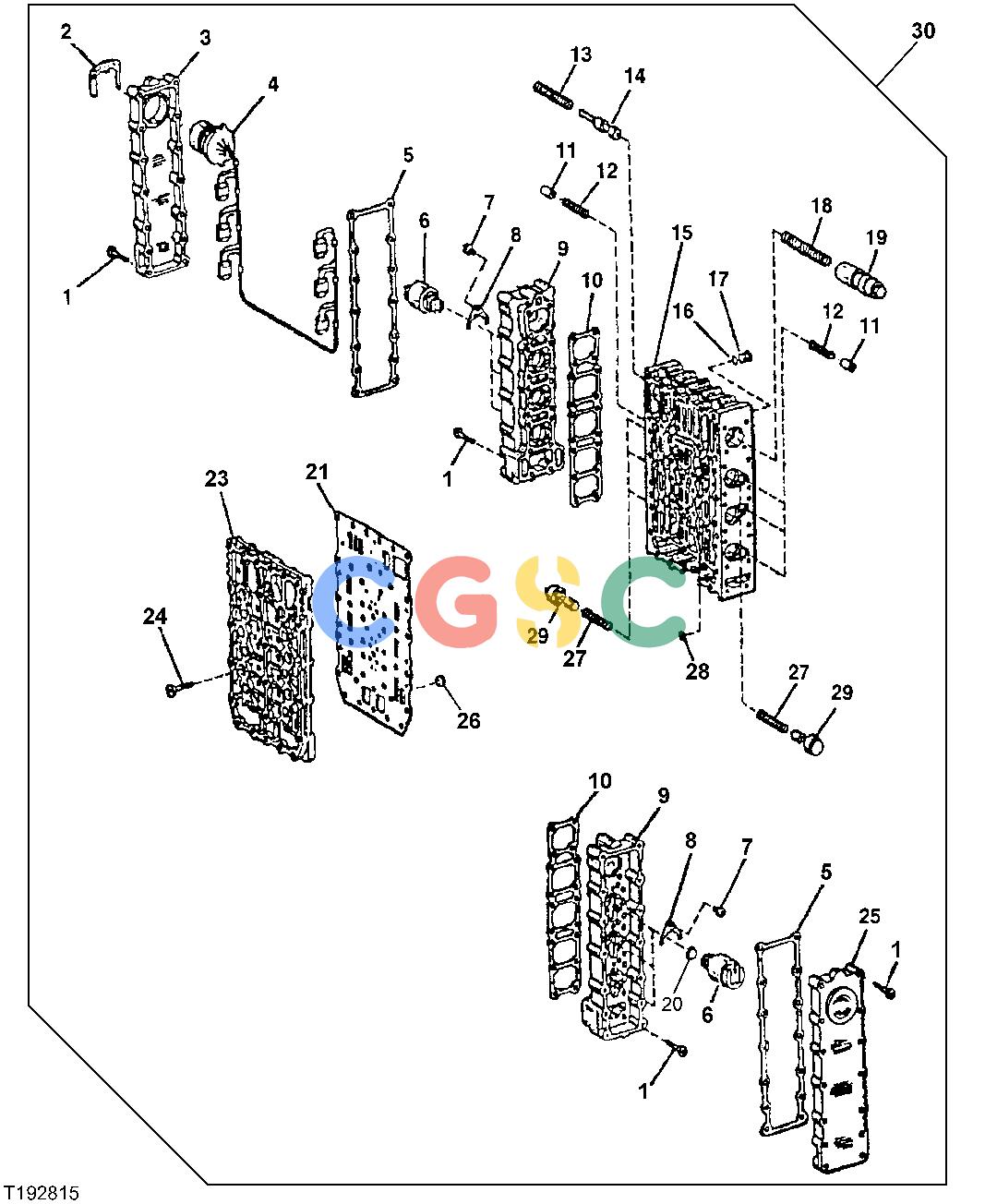

约翰迪尔零件查询RE160299 - AXLE Transmission Control ValveEPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
888 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
T173131
|
[64] |
Cap Screw
|
|
| 2. |
T161207
|
[1] |
Clamp
|
|
| 3. |
T173138
|
[1] |
Cover
|
|
| 4. |
T179721
|
[1] |
Wiring Harness
|
|
| 5. |
T182254
|
[2] |
Gasket
|
|
| 6. |
T169607
|
[6] |
Solenoid Valve
|
|
| 7. |
19M7600
|
[6] |
Screw
|
|
| 8. |
T144486
|
[6] |
Plate
|
|
| 9. |
T177221
|
[2] |
Housing
|
|
| 10. |
T182196
|
[2] |
Gasket
|
|
| 11. |
T169766
|
[6] |
Pin Fastener
|
|
| 12. |
T169712
|
[6] |
Compression Spring
|
|
| 13. |
T173126
|
[1] |
Compression Spring
|
|
| 14. |
T173125
|
[1] |
Piston
|
|
| 15. |
T177219
|
[1] |
Flow Control Hyd. Valve
|
|
| 16. |
T116416
|
[8] |
O-Ring
|
|
| 17. |
T175862
|
[8] |
Plug
|
|
| 18. |
T173128
|
[1] |
Compression Spring
|
|
| 19. |
T205369
|
[1] |
Piston
|
|
| 20. |
T170196
|
[6] |
O-Ring
|
|
| 21. |
........
|
[1] |
Plate
|
|
| 21. |
T179532
|
[1] |
Plate
|
|
| 21. |
T179531
|
[1] |
Gasket
|
|
| 21. |
T179533
|
[1] |
Gasket
|
|
| 23. |
T203767
|
[1] |
Plate
|
|
| 24. |
T173144
|
[18] |
Cap Screw
|
|
| 25. |
T173139
|
[1] |
Cover
|
|
| 26. |
T174396
|
[6] |
Screen
|
|
| 27. |
T169711
|
[6] |
Compression Spring
|
|
| 28. |
T169707
|
[6] |
Orifice
|
|
| 29. |
T173511
|
[6] |
Piston
|
|
| 30. |
AT220039
|
[1] |
Hyd Actuated Control Valve
|
|
