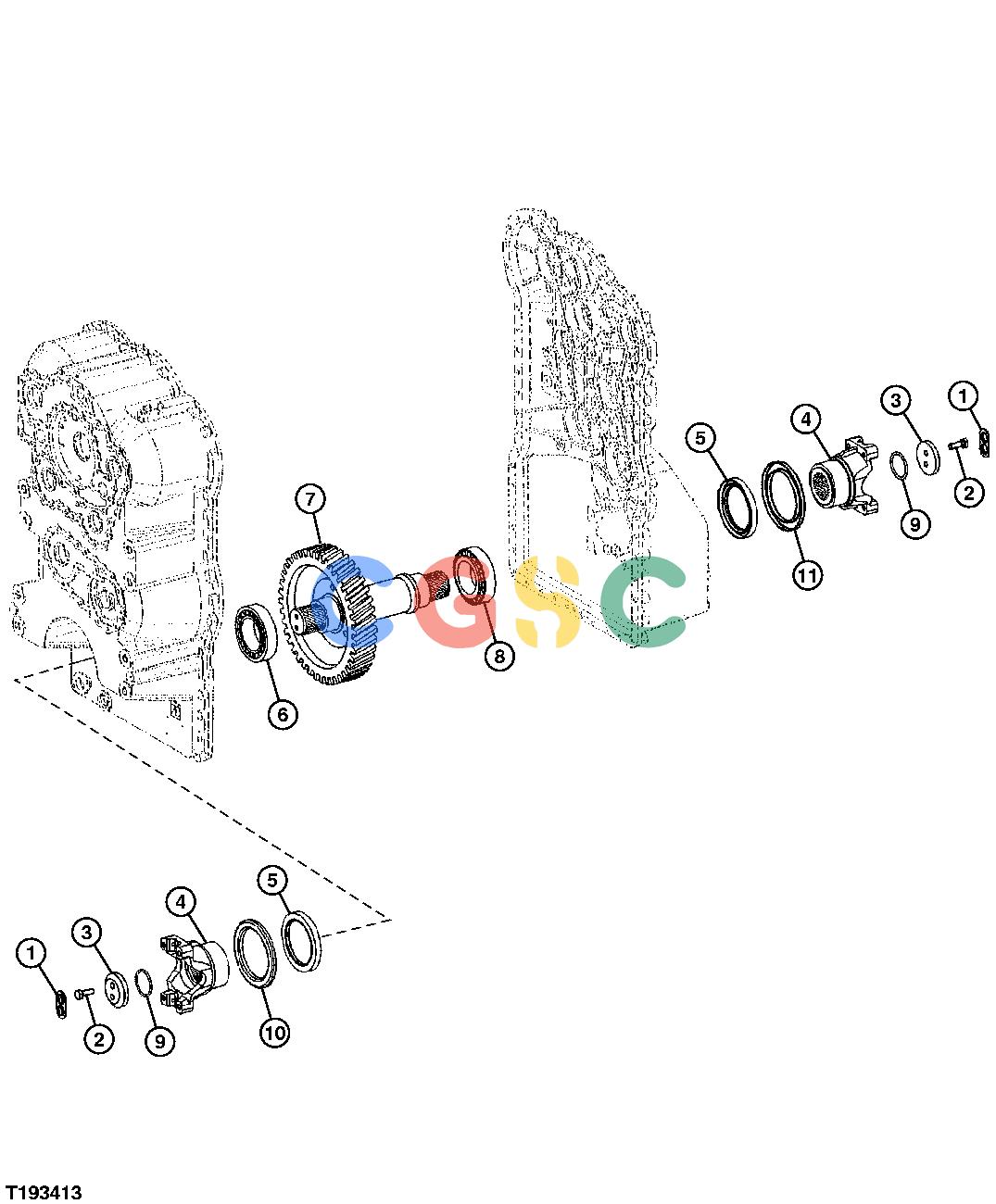

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | T116928 | [2] | Washer | |
| 2. | 19M7168 | [4] | Cap Screw | M10 X 30 |
| 3. | T180957 | [2] | Washer | |
| 4. | T225913 | [2] | Universal Joint Yoke | SUB FOR T180328 |
| 5. | T116915 | [2] | Seal | |
| 6. | T310105 | [1] | Bearing | SUB FOR T173847 IMPORTANT - HIGH TOLERANCE BEARING REQUIRED IN THIS LOCATION. USE ONLY JOHN DEERE PARTS SOURCED BEARINGS. |
| 7. | T242436 | [1] | Shaft | SUB FOR T173865 |
| 8. | T310105 | [1] | Bearing | SUB FOR T173847 IMPORTANT - HIGH TOLERANCE BEARING REQUIRED IN THIS LOCATION. USE ONLY JOHN DEERE PARTS SOURCED BEARINGS. |
| 9. | T174237 | [2] | O-Ring | |
| 10. | T180329 | [1] | Screen | |
| 11. | T180753 | [1] | Screen |
