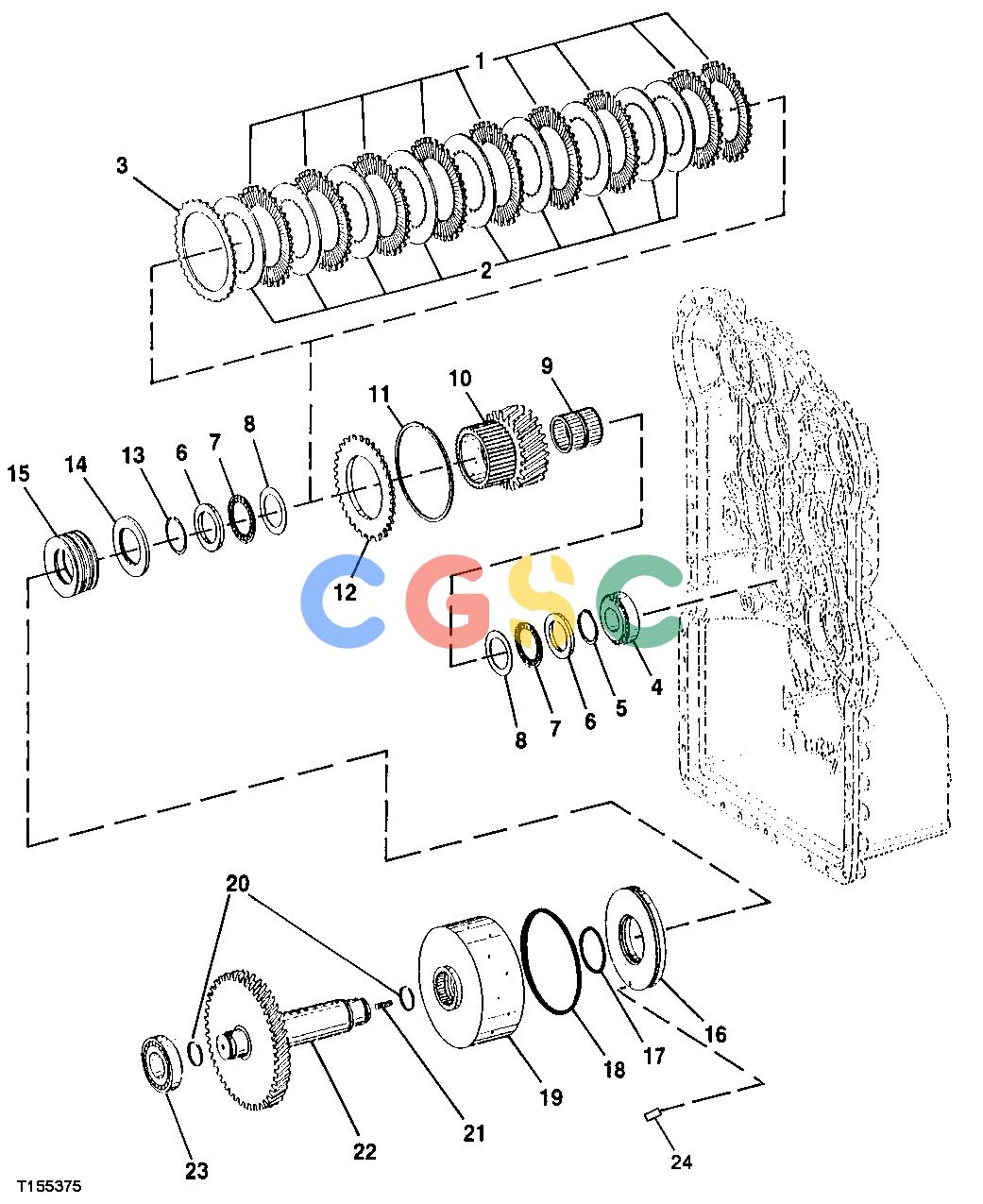

Pos.	Part No	Qty	Parts name	Comments
1.	T173841	[9]	Clutch Disk
2.	T173842	[9]	Clutch Disk
3.	T173840	[1]	Clutch Disk
4.	T310104	[1]	Bearing	SUB FOR T173849 IMPORTANT-HIGH TOLERANCE BEARING REQUIRED IN THIS LOCATION. USE ONLY JOHN DEERE PARTS SOURCED BEARINGS.
5.	T173036	[1]	Snap Ring
6.	T172104	[2]	Disk
7.	T172129	[2]	Thrust Bearing
8.	T172130	[2]	Thrust Washer
9.	T179935	[1]	Needle Bearing
10.	T173845	[1]	Idler
11.	T173863	[AR]	Snap Ring	3.60 MM (.142")
11.	T173864	[AR]	Snap Ring	4.20 MM (.165")
11.	T181881	[AR]	Snap Ring	2.4 MM (.095")
11.	T181882	[AR]	Snap Ring	2.7 MM (.106")
11.	T181883	[AR]	Snap Ring	3.0 MM (.118")
11.	T181884	[AR]	Snap Ring	3.3 MM (.123")
12.	T294875	[1]	Solid Shim	SUB FOR T173844
13.	T173067	[1]	Snap Ring
14.	T173066	[1]	Snap Ring
15.	T173839	[7]	Disk Spring
16.	T174418	[1]	Piston
17.	T173958	[1]	O-Ring
18.	T174413	[1]	O-Ring
19.	T173837	[1]	Housing
20.	T172115	[2]	Piston Ring
21.	T171153	[1]	Stud
22.	T294884	[1]	Shaft	SUB FOR T173843
23.	T310105	[1]	Bearing	SUB FOR T173847 IMPORTANT-HIGH TOLERANCE BEARING REQUIRED IN THIS LOCATION. DO NOT SUBSTITUTE STANDARD BEARING.
24.	T176801	[1]	Flow Control Hyd. Valve
