约翰迪尔零件查询RE160299 - AXLE Second Gear Clutch AssemblyEPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 935 次

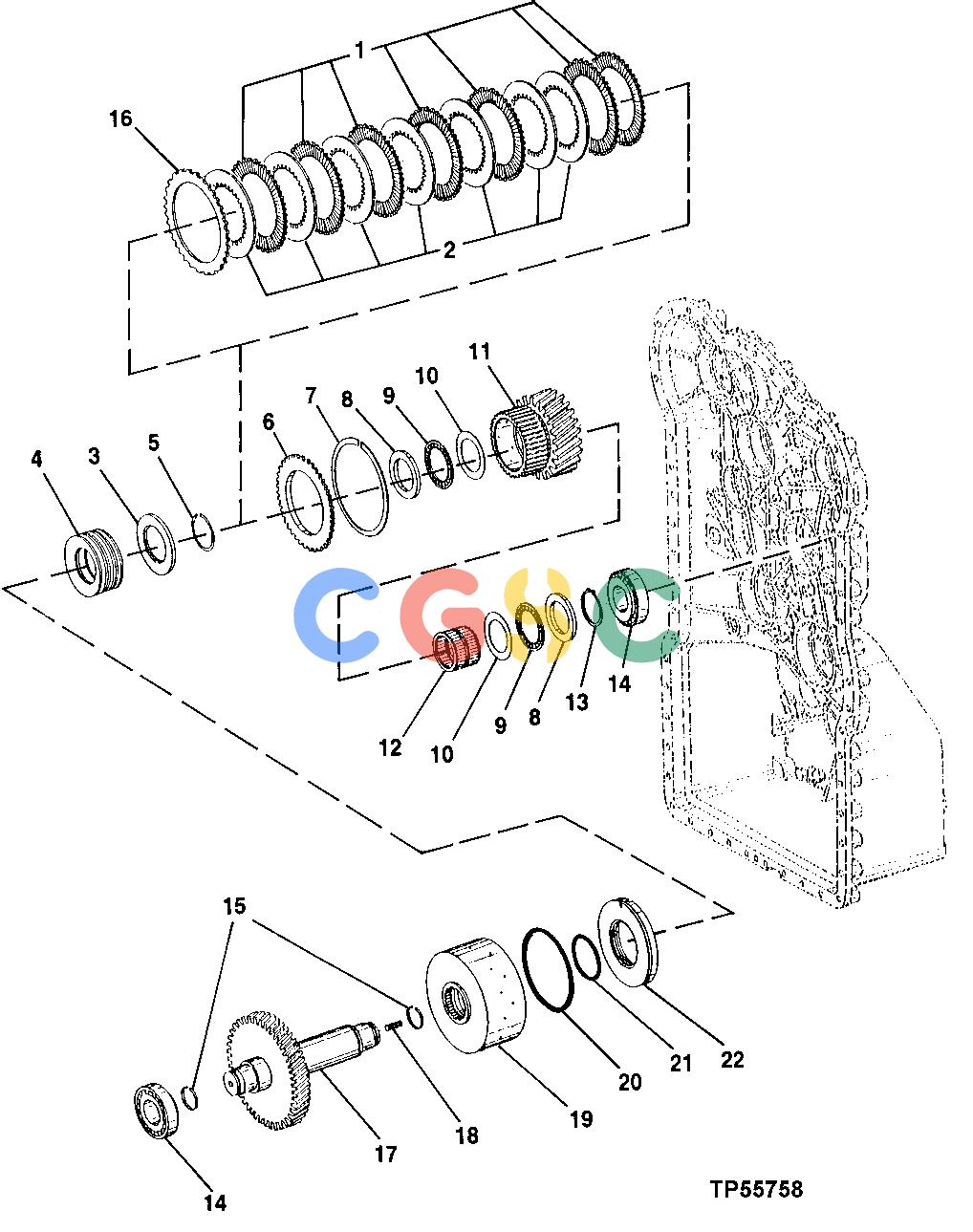

Pos.	Part No	Qty	Parts name	Comments
1.	T173637	[7]	Disk With Outer Spline
2.	T173638	[7]	Disk With Inner Spline
3.	T173066	[2]	Snap Ring
4.	T173839	[7]	Disk Spring
5.	T173067	[1]	Snap Ring
6.	T294876	[1]	Solid Shim	SUB FOR T173639
7.	T172247	[AR]	Snap Ring	3.60 MM (.141")
7.	T172251	[AR]	Snap Ring	4.20 MM (.165")
7.	T181873	[AR]	Snap Ring	2.4 MM (.095")
7.	T181874	[AR]	Snap Ring	2.7 MM (.106")
7.	T181875	[AR]	Snap Ring	3.0 MM (.118")
7.	T181876	[AR]	Snap Ring	3.3 MM (.123")
8.	T172104	[2]	Disk
9.	T172129	[2]	Thrust Bearing
10.	T172130	[2]	Thrust Washer
11.	T174392	[1]	Idler
12.	T179594	[1]	Needle Bearing
13.	T173036	[1]	Snap Ring
14.	T310104	[2]	Bearing	SUB FOR T173849 IMPORTANT-HIGH TOLERANCE BEARING REQUIRED IN THIS LOCATION. USE ONLY JOHN DEERE PARTS SOURCED BEARINGS.
15.	T172115	[2]	Piston Ring
16.	T173636	[1]	Disk With Outer Spline
17.	T294886	[1]	Shaft	SUB FOR T173851
18.	T171153	[1]	Stud
19.	T173852	[2]	Housing
20.	T173960	[1]	O-Ring
21.	T173958	[1]	O-Ring
22.	T173853	[1]	Piston
