约翰迪尔零件查询RE160299 - AXLE High Range Clutch AssemblyEPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 882 次

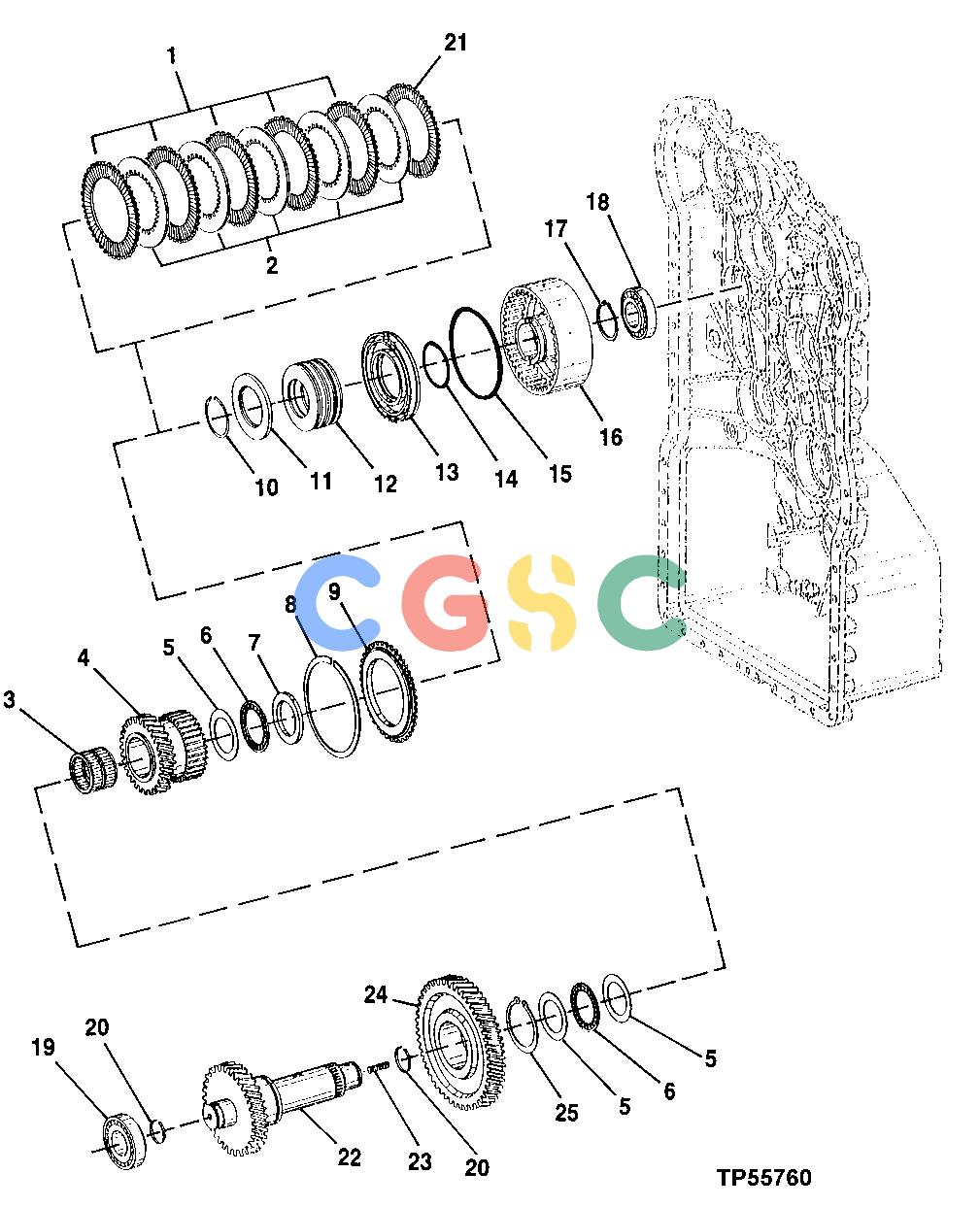

Pos.	Part No	Qty	Parts name	Comments
1.	T173637	[5]	Disk With Outer Spline
2.	T173638	[5]	Disk With Inner Spline
3.	T179594	[1]	Needle Bearing
4.	T173855	[1]	Idler
5.	T172130	[3]	Thrust Washer
6.	T172129	[2]	Thrust Bearing
7.	T172104	[1]	Disk
8.	T172247	[AR]	Snap Ring
8.	T172251	[AR]	Snap Ring
8.	T181873	[AR]	Snap Ring
8.	T181874	[AR]	Snap Ring
8.	T181875	[AR]	Snap Ring
8.	T181876	[AR]	Snap Ring
9.	T294876	[1]	Solid Shim	SUB FOR T173639
10.	T173067	[1]	Snap Ring
11.	T173066	[1]	Snap Ring
12.	T173839	[7]	Disk Spring
13.	T173853	[1]	Piston
14.	T173958	[1]	O-Ring
15.	T173960	[1]	O-Ring
16.	T173854	[1]	Housing
17.	T159519	[1]	Snap Ring
18.	T294935	[1]	Bearing	SUB FOR T171156 IMPORTANT-HIGH TOLERANCE BEARING REQUIRED IN THIS LOCATION. USE ONLY JOHN DEERE PARTS SOURCED BEARINGS.
19.	T310104	[1]	Bearing	SUB FOR T173849 IMPORTANT-HIGH TOLERANCE BEARING REQUIRED IN THIS LOCATION. USE ONLY JOHN DEERE PARTS SOURCED BEARINGS.
20.	T172115	[2]	Piston Ring
21.	T173636	[1]	Disk With Outer Spline
22.	T294888	[1]	Shaft	SUB FOR T173860
23.	T171153	[1]	Stud
24.	T173859	[1]	Gear
25.	T158719	[1]	Snap Ring
