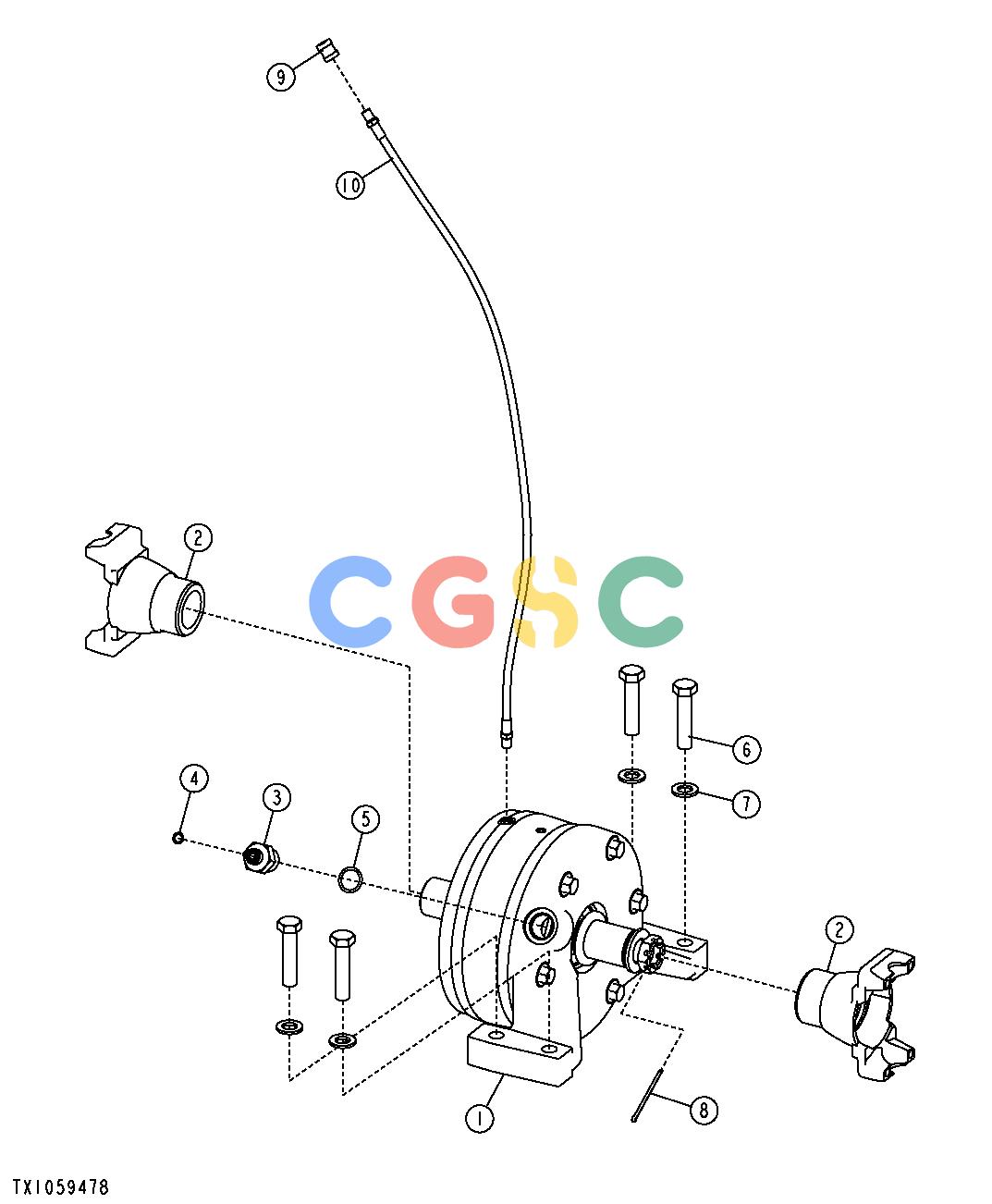

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | ........ | [1] | Brake | (SUB (1) AT330287 AND (1) 11M7025)( AT207839 NLA) (COMPONENTS ON SEPARATE PAGE) |
| 1. | AT330287 | [1] | Brake | REPLACEMENT (SUB FOR (1) AT361046 (COMPONENTS ON SEPARATE PAGE)) |
| 2. | T172968 | [2] | Yoke | |
| 3. | 38H1338 | [1] | Adapter Fitting | |
| 4. | T77613 | [1] | O-Ring | 9.250 X 1.780 MM (0.364" X 0.070") |
| 5. | U12547 | [1] | O-Ring | 23.470 X 2.946 MM (0.924" X 0.116") |
| 6. | 19M7719 | [4] | Cap Screw | M16 X 70 |
| 7. | 24M7338 | [4] | Washer | 17 X 30 X 3 MM |
| 8. | 11M7025 | [1] | Cotter Pin | 4 X 63 MM |
| 9. | 15H84 | [1] | Coupling | 1/8" |
| 10. | AT207022 | [1] | Hydraulic Hose | 1/8" X 899 MM (35-1/2") X 1/8" |
