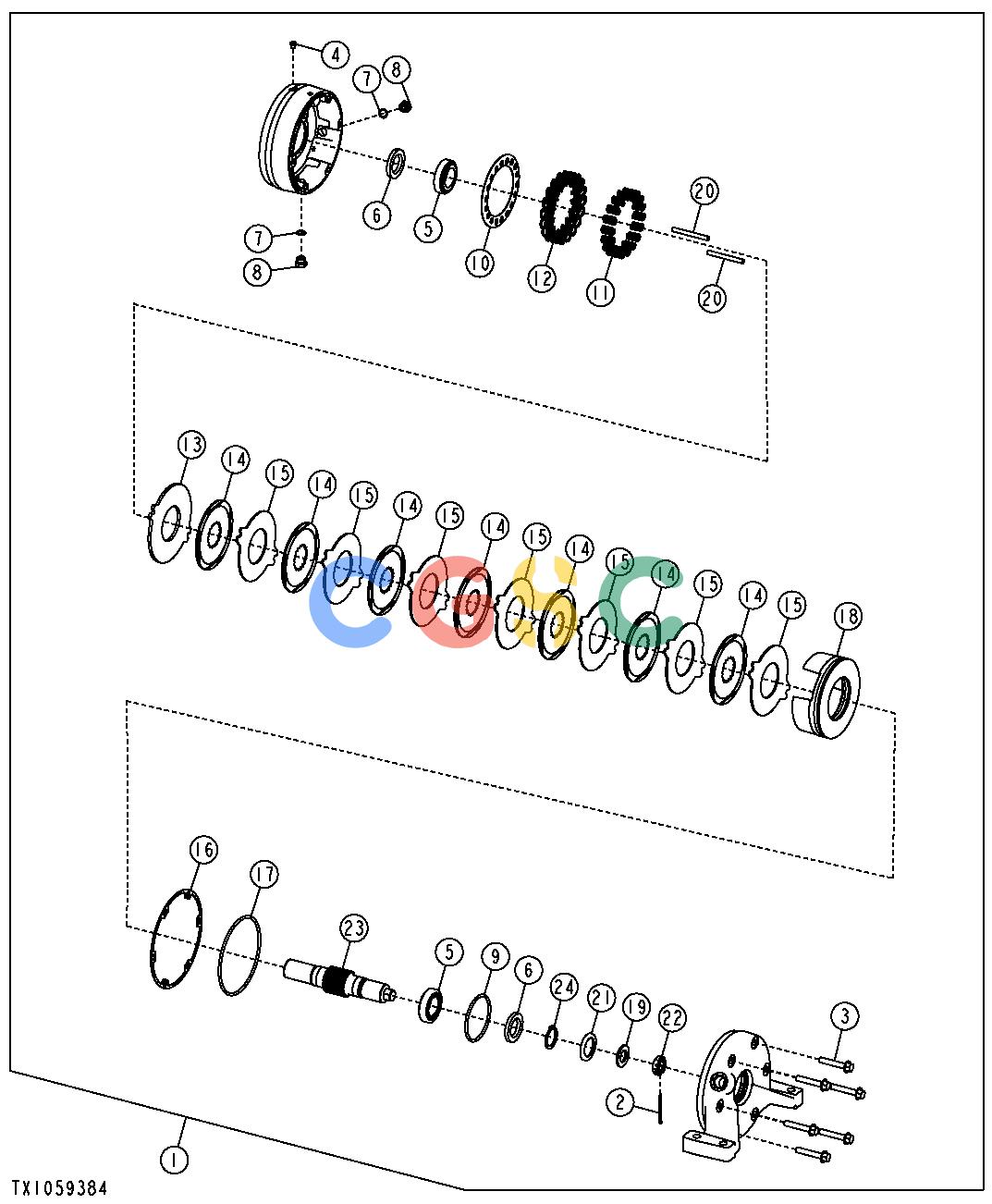

约翰迪尔零件查询RE160299 - AXLE Park BrakeEPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 535 次

Pos.	Part No	Qty	Parts name	Comments
1.	........	[1]	Brake	(SUB AT330287 AND 11M7025)( AT207839 NLA)
2.	11M7025	[1]	Cotter Pin	4 X 63 MM
3.	19M7817	[6]	Screw	M12 X 70
4.	AT208411	[1]	Pressure Relief Valve
5.	AT209496	[2]	Bearing
6.	AT225727	[2]	Seal
7.	R26375	[2]	O-Ring	16.358 X 2.210 MM (0.644" X 0.087")
8.	R39112	[2]	Fitting
9.	R74657	[1]	O-Ring	100.965 X 5.334 MM (3.975" X 0.210")
10.	T169103	[1]	Retainer
11.	T169104	[18]	Compression Spring
12.	T169105	[18]	Compression Spring
13.	T169107	[1]	Brake Disk	(PRIMARY)
14.	T169108	[7]	Brake Disk	(ROTATING)
15.	T169109	[7]	Brake Disk	(STATIONARY)
16.	T169110	[1]	Gasket
17.	T169116	[1]	O-Ring	177.165 X 5.334 MM (6.975" X 0.210")
18.	T169290	[1]	Piston
19.	T172856	[1]	Washer	29.337 X 51.562 X 4.496 MM (1.155" X 2.030" X 0.177")
20.	T173230	[2]	Pin
21.	T173593	[1]	Washer
22.	T169113	[1]	Nut
22.	T226801	[1]	Nut
23.	........	[1]	Universal Driveshaft	(SUB T226804, T226801 AND 11M7025)( T173267 NLA)
23.	T226804	[1]	Shaft
24.	U12167	[1]	Snap Ring
