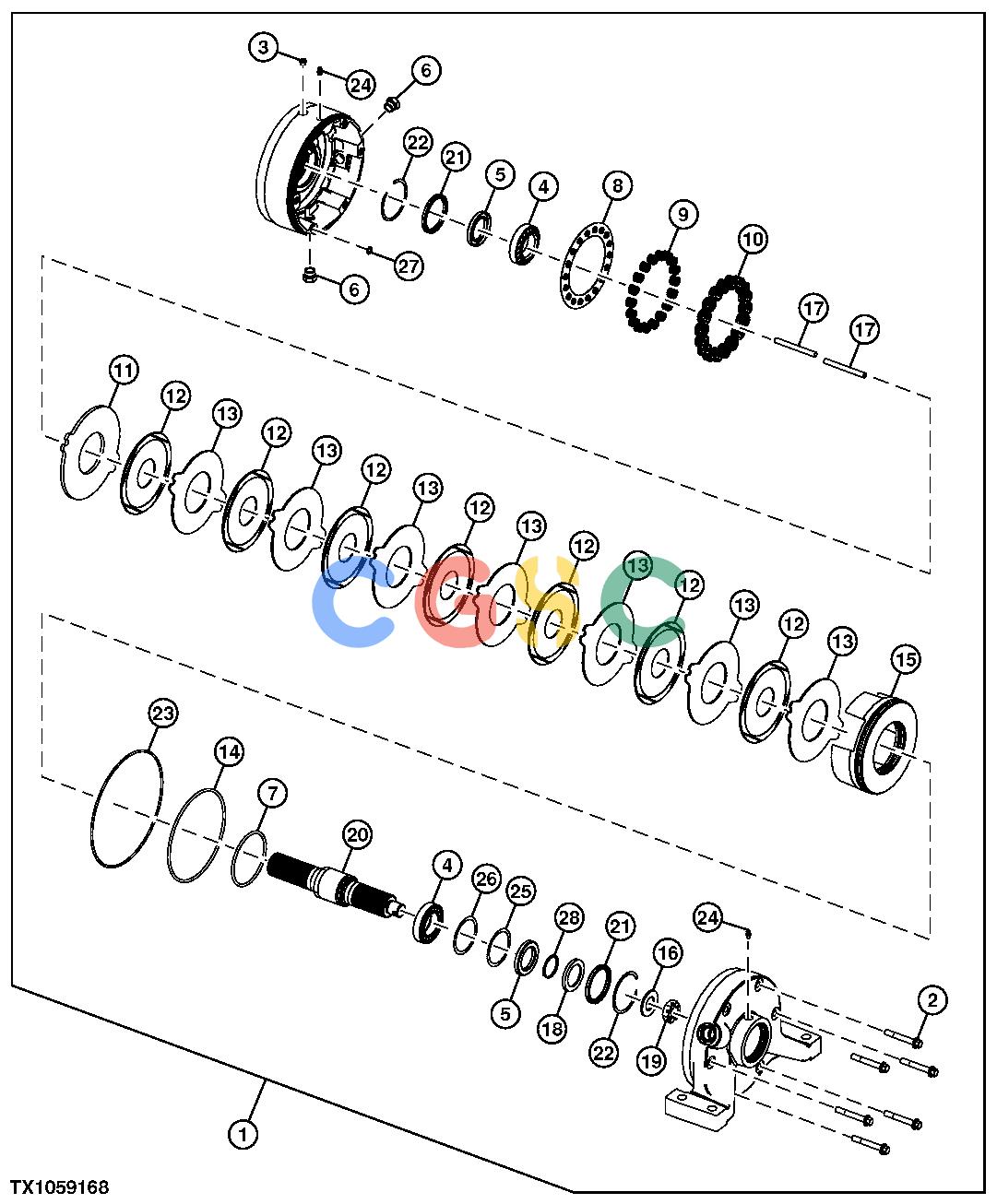

约翰迪尔零件查询RE160299 - AXLE Replacement Park BrakeEPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 198 次

Pos.	Part No	Qty	Parts name	Comments
1.	AT330287	[1]	Brake	(SUB FOR AT361046)
2.	19M7809	[6]	Screw	M10 X 70
3.	AT208411	[1]	Pressure Relief Valve
4.	AT209496	[2]	Bearing
5.	AT225727	[2]	Seal
6.	R39112	[2]	Fitting
6.	R26375	[2]	O-Ring	16.358 X 2.210 MM (0.644" X 0.087")
7.	R74657	[1]	O-Ring	100.965 X 5.334 MM (3.975" X 0.210") (NOT ILLUSTRATED)
8.	T169103	[1]	Retainer
9.	T169104	[18]	Compression Spring
10.	T169105	[18]	Compression Spring
11.	T169107	[1]	Brake Disk	(PRIMARY)
12.	T169108	[7]	Brake Disk	(ROTATING)
13.	T169109	[7]	Brake Disk	(STATIONARY)
14.	T169116	[1]	O-Ring	177.165 X 5.334 MM (6.975" X 0.210")
15.	T169290	[1]	Piston
16.	T172856	[1]	Washer	29.337 X 51.562 X 4.496 MM (1.155" X 2.030" X 0.177")
17.	T173230	[2]	Pin
18.	T173593	[1]	Washer
19.	T226801	[1]	Nut
20.	T226804	[1]	Shaft
21.	T242935	[2]	Seal
22.	T242936	[2]	Snap Ring
23.	T242937	[1]	O-Ring
24.	T242938	[2]	Fitting
25.	T242939	[1]	Shim
26.	T242940	[1]	Shim
27.	T81686	[6]	O-Ring	10.820 X 1.778 MM (0.426" X 0.070")
28.	U12167	[1]	Snap Ring
