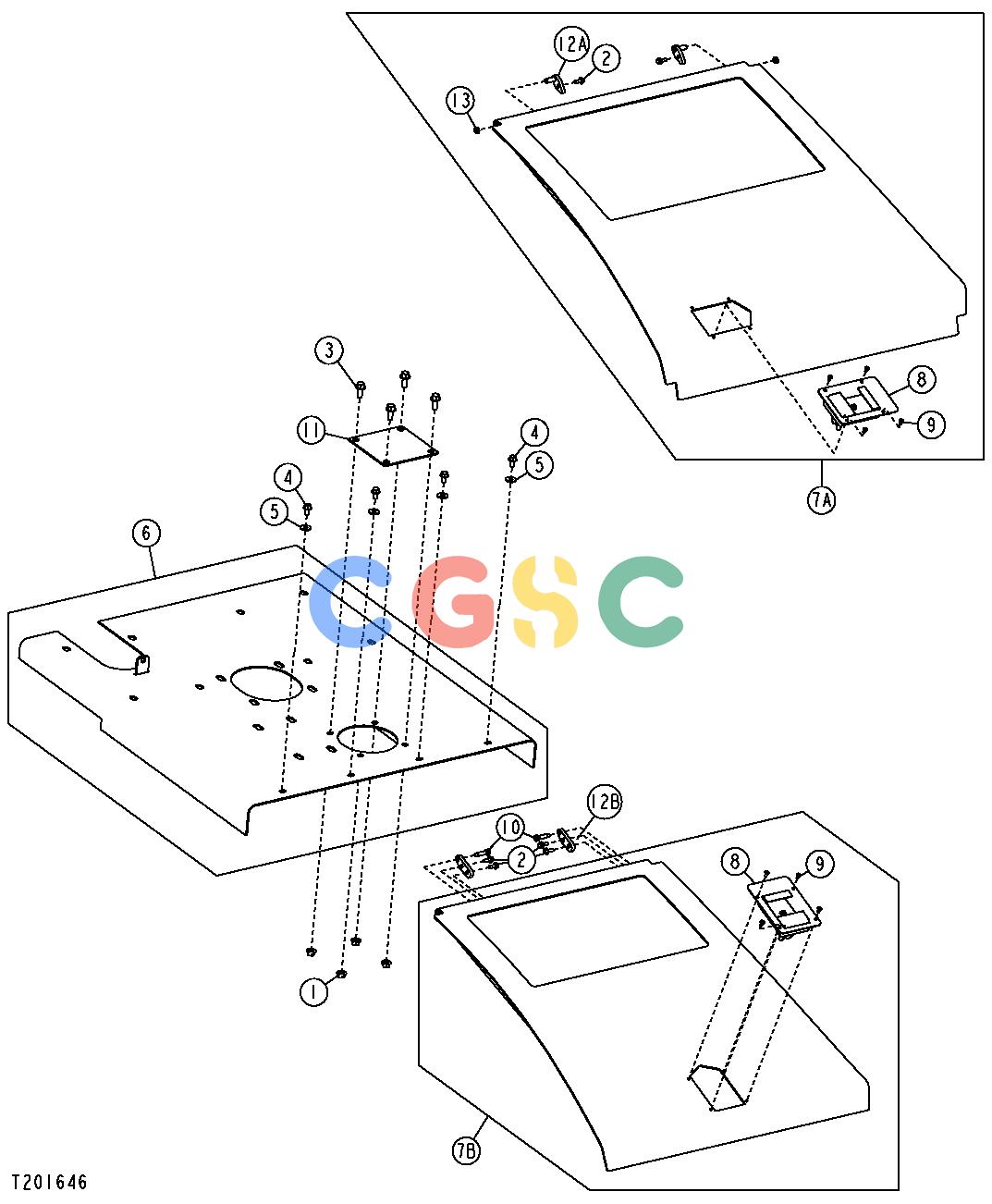

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 14M7296 | [4] | Flange Nut | M10 |
| 2. | 19M7775 | [2] | Screw | M6 X 16 |
| 2. | 19M7775 | [4] | Screw | M6 X 16 |
| 3. | 19M7785 | [4] | Screw | M10 X 25 |
| 4. | 19M7865 | [4] | Screw | M8 X 16 |
| 5. | 24M7298 | [4] | Washer | 8.400 X 25 X 2 MM (SUB FOR (4) 24M7207) |
| 6. | AT226849 | [1] | Hood | |
| 7A. | ........ | [1] | Hood | (SUB (1) AT327537 ) (ALSO ORDER (1) AT310759, (1) AT310760, (1) T208352, (1) T208372 AND (1) T208317)( AT228847 NLA) |
| 7B. | AT327537 | [1] | Hood | (SUB FOR AT310816) |
| 8. | AT221696 | [1] | Latch | |
| 9. | H85233 | [4] | Rivet | |
| 10. | R187539 | [2] | Screw | |
| 11. | T198109 | [1] | Reinforcement | |
| 12A. | AT304375 | [2] | Pin | |
| 12B. | T208317 | [2] | Plate | |
| 13. | M148224 | [2] | Washer |
