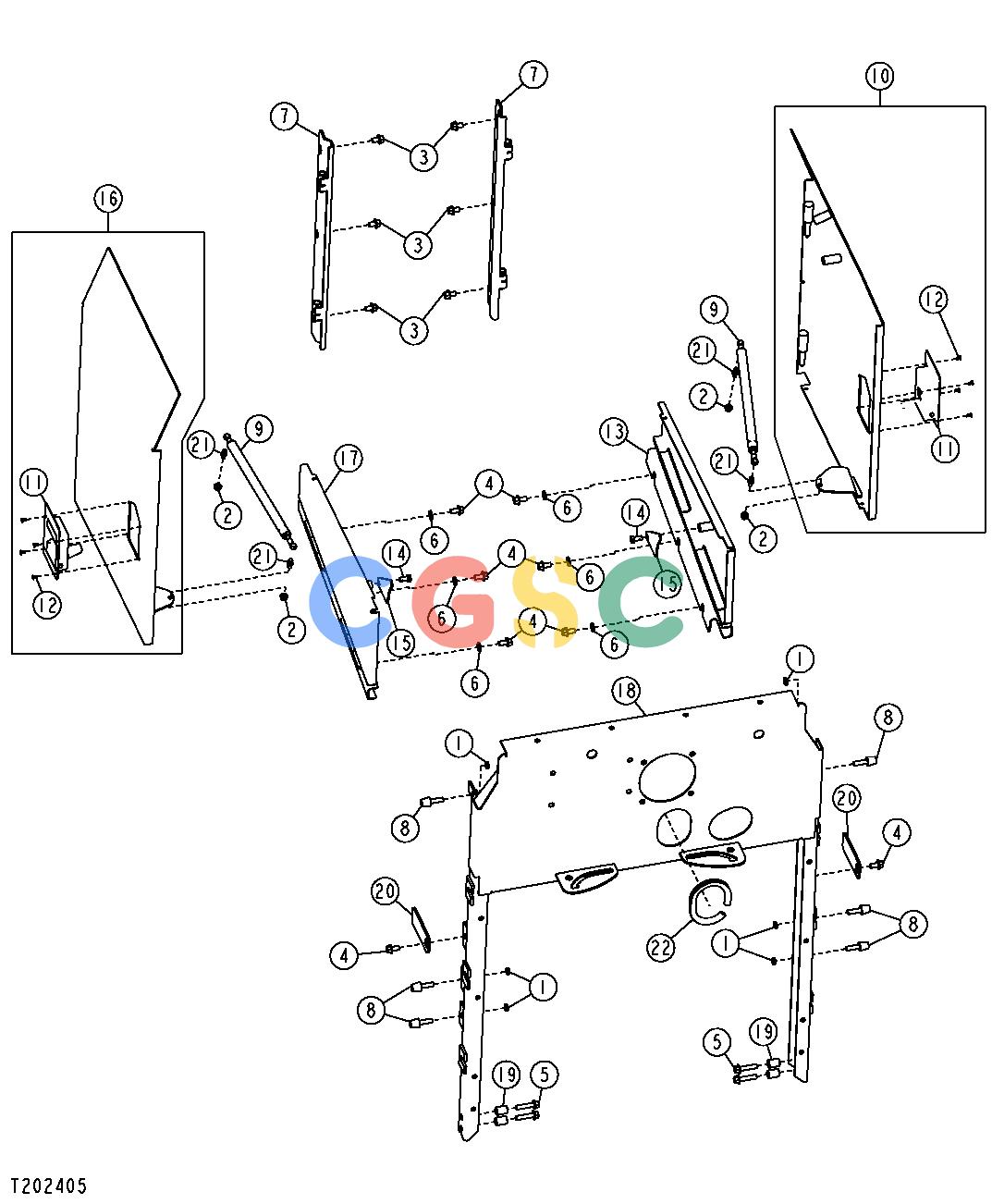

约翰迪尔零件查询RE160299 - AXLE Engine Side ShieldsEPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
490 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
14M7152
|
[6] |
Nut
|
|
| 2. |
14M7298
|
[4] |
Flange Nut
|
|
| 3. |
19M7784
|
[4] |
Screw
|
|
| 4. |
19M7784
|
[10] |
Screw
|
|
| 5. |
19M7805
|
[4] |
Screw
|
|
| 6. |
24M7239
|
[6] |
Washer
|
|
| 7. |
AT208159
|
[2] |
Hinge
|
|
| 8. |
AT219974
|
[6] |
Bumper
|
|
| 9. |
AT226229
|
[2] |
Cylinder
|
|
| 9. |
T182758
|
[4] |
Clip
|
|
| 10. |
AT226853
|
[1] |
Door
|
|
| 11. |
AT221696
|
[2] |
Latch
|
|
| 12. |
H85233
|
[8] |
Rivet
|
|
| 13. |
AT327492
|
[1] |
Door
|
|
| 14. |
T105891
|
[2] |
Cap Screw
|
|
| 15. |
T168119
|
[2] |
Plate
|
|
| 16. |
AT226854
|
[1] |
Door
|
|
| 17. |
AT327491
|
[1] |
Door
|
|
| 18. |
AT320328
|
[1] |
Isolator
|
|
| 19. |
T147891
|
[4] |
Bushing
|
|
| 20. |
T168135
|
[2] |
Strap
|
|
| 21. |
T177909
|
[4] |
Ball Stud
|
|
| 22. |
........
|
[1] |
Molding
|
|
