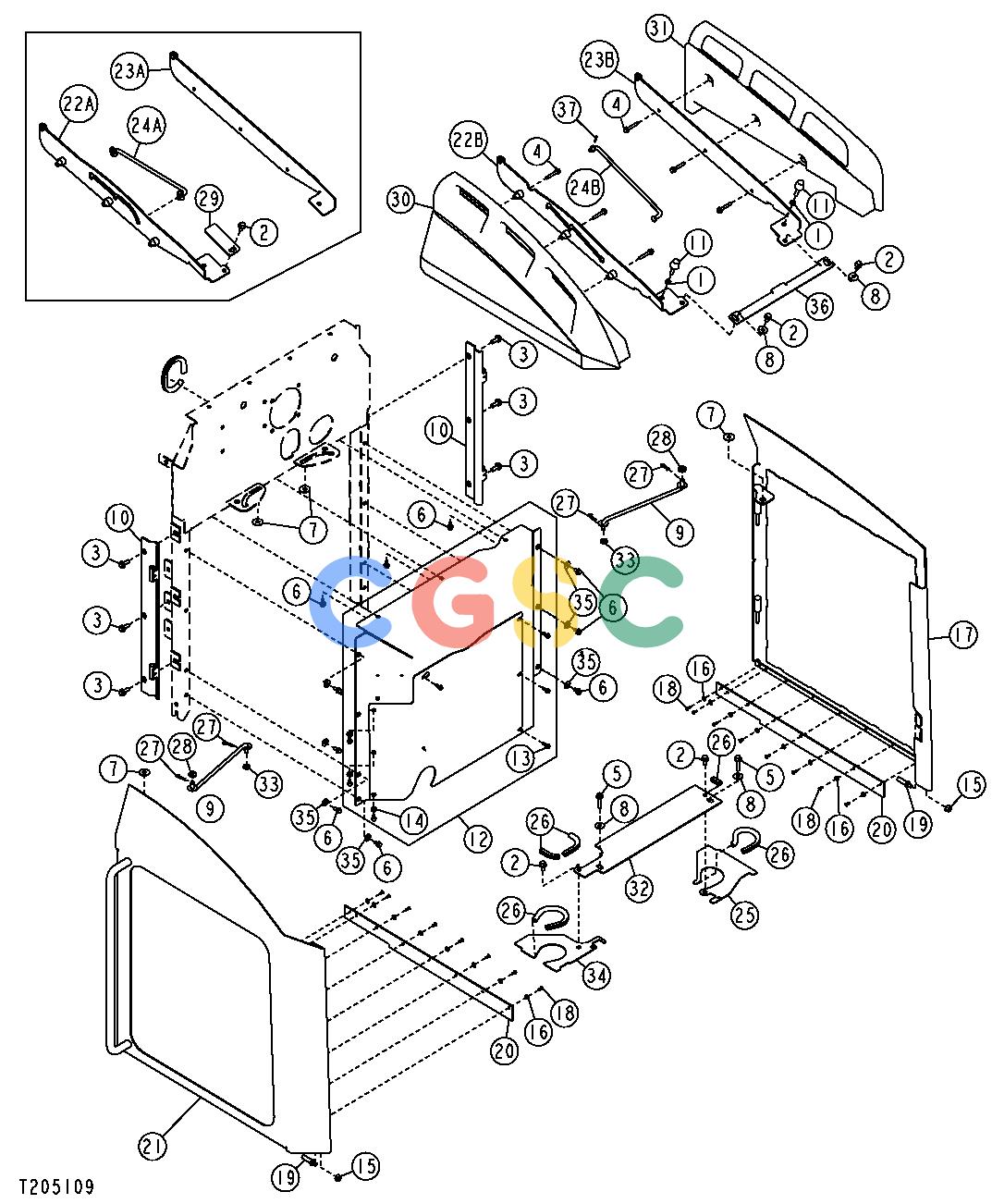

约翰迪尔零件查询RE160299 - AXLE REAR SIDE PANELSEPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 404 次

Pos.	Part No	Qty	Parts name	Comments
1.	14M7152	[2]	Nut	M10
2.	19M7784	[4]	Screw	M10 X 20
3.	19M7785	[6]	Screw	M10 X 25
4.	19M7800	[6]	Screw	M8 X 50
5.	19M7805	[2]	Screw	M10 X 45
6.	19M7865	[10]	Screw	M8 X 16
7.	24H1330	[4]	Washer	15/32" X 1-3/8" X 7/64"
8.	24M7296	[4]	Washer	10.500 X 30 X 2.500 MM
9.	AT312053	[2]	Rod	(SUB FOR AT179840)
10.	AT208159	[2]	Hinge
11.	AT306690	[2]	Bumper
12.	AT320322	[1]	Isolator	(SUB FOR AT226150)
13.	19M7862	[7]	Screw	M6 X 20
14.	24M7139	[3]	Washer	6.400 X 18 X 1.600 MM
15.	14M7296	[2]	Flange Nut	M10
16.	........	[16]	Washer	( 24M7138 NLA)
17.	AT327520	[1]	Door	(SUB FOR AT228480)
18.	M68628	[16]	Rivet
19.	T201880	[2]	Stud
20.	T204624	[2]	Flap
21.	AT327521	[1]	Door	(SUB FOR AT228481)
22A.	AT228158	[1]	Bracket
22B.	AT310759	[1]	Bracket	(USE WITH AT310816)
23A.	AT228405	[1]	Bracket
23B.	AT310760	[1]	Bracket	(USE WITH AT310816)
24A.	AT228748	[1]	Rod
24B.	T208352	[1]	Rod	(USE WITH AT310816)
25.	AT303636	[1]	Isolator
26.	........	[1]	Bulk Hose	(MAKE FROM (1) T58056)(CTL) 2.5'
27.	J16931	[4]	Pin
28.	T162238	[2]	Grommet
29.	T168135	[3]	Strap
29.	T168135	[2]	Strap
30.	T197100	[1]	Handle
31.	T197575	[1]	Handle
32.	T202067	[1]	Plate
33.	T27260	[2]	Washer
34.	AT303014	[1]	Isolator
35.	24M7298	[7]	Washer	8.400 X 25 X 2 MM
36.	T208372	[1]	Bracket	(USE WITH AT310816)
37.	11M7059	[1]	Cotter Pin	3.200 X 20 MM
