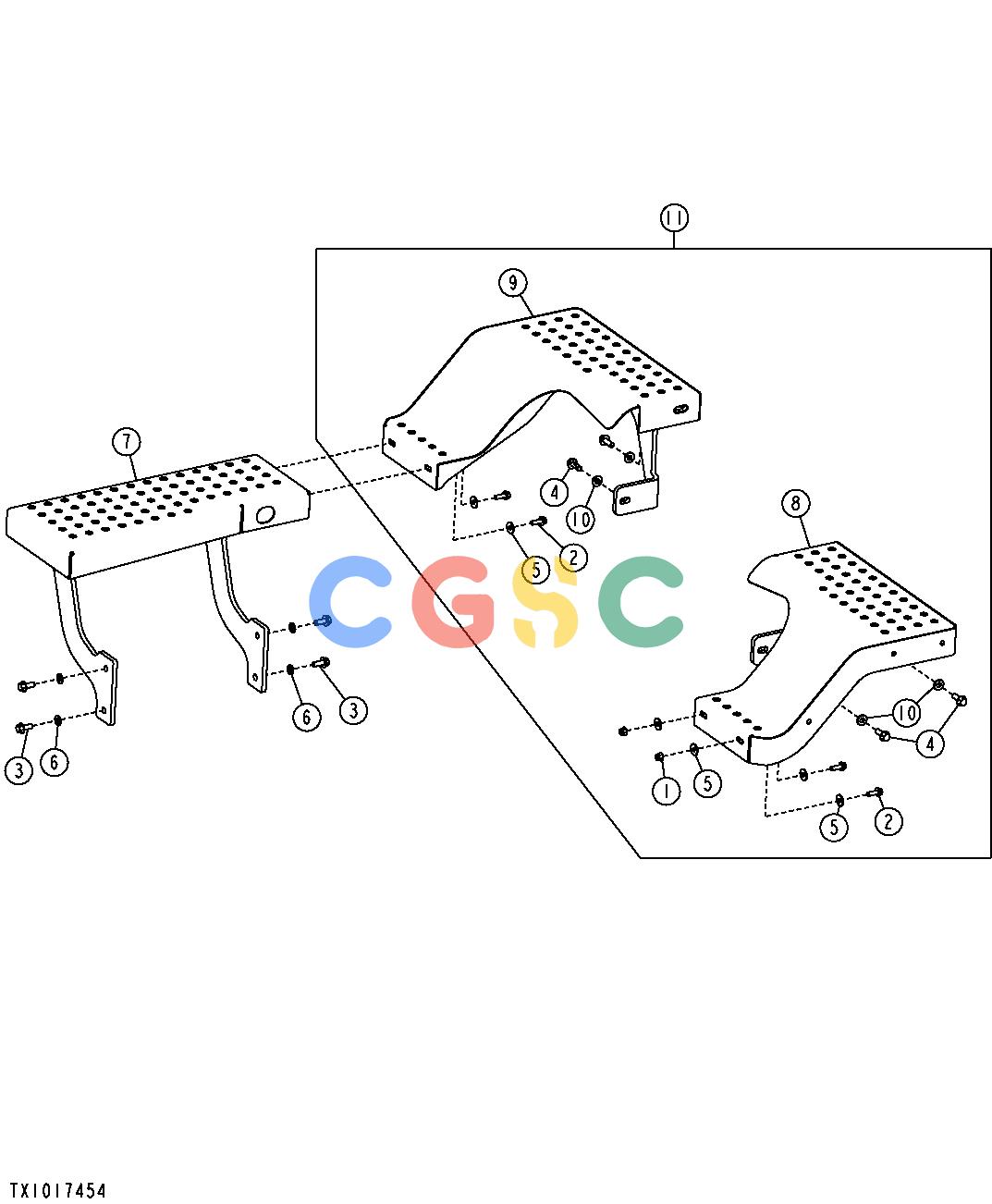

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 14M7400 | [4] | Lock Nut | M10 |
| 2. | 19M7786 | [4] | Screw | M10 X 30 |
| 3. | 19M7789 | [4] | Screw | M12 X 30 |
| 4. | 19M7790 | [4] | Screw | M12 X 35 |
| 5. | 24M7180 | [8] | Washer | 13 X 37 X 3 MM |
| 6. | 24M7240 | [4] | Washer | 13 X 25 X 3 MM |
| 7. | AT331792 | [1] | Platform | (SUB FOR AT327498 OR AT226787) |
| 8. | AT327504 | [1] | Fender | (SUB FOR AT307258 OR AT227587) |
| 9. | AT327505 | [1] | Fender | (SUB FOR AT307259 OR AT227588) |
| 10. | T178063 | [4] | Washer | |
| 11. | AT303758 | [1] | Step | MATCHED SET |
